Pinpoint Test D: The Differential Cooler Pump Never Runs Or Runs Continuously

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. D1 CHECK THE DIFFERENTIAL OIL PUMP OPERATION
    • Ignition ON.
    • Listen for differential oil pump operation.
    • Is the differential oil pump operating?
    • Yes  : GO to D2.
    • No  : GO to  D3.
  2. D2 CHECK THE DIFFERENTIAL OIL PUMP RELAY
    • Disconnect: Differential Oil Pump Relay.
    • Is the differential oil pump still operating?
    • Yes  : REPAIR circuit CYT14 (VT/OG) for a short to voltage.
    • No  : INSTALL a new relay.
  3. D3 CHECK THE VOLTAGE TO THE DIFFERENTIAL OIL PUMP RELAY
    • Ignition OFF.
    • Disconnect: Differential Oil Pump Relay.
    • Measure the voltage  between:
      Positive Lead Negative Lead
      Pin Circuit Pin Circuit
      Relay Cavity 1 CBB46 (WH/BU) - Ground
      Relay Cavity 3 SBB12 (GN/RD) - Ground
      Fig 1: Checking Voltage To Differential Oil Pump Relay
      G08642312Courtesy of FORD MOTOR CO.
    • Are the voltages greater than 11 volts?
    • Yes  : GO to D4.
    • No  : VERIFY BJB fuse 46 (5A) is OK.

      If OK, REPAIR circuit CBB46 (WH/BU).

      VERIFY BJB fuse 12 (20A) is OK.

      If OK, REPAIR circuit SBB12 (GN/RD).

      If either fuse is not OK, REFER to the SYSTEM WIRING DIAGRAMS to identify the possible causes of the circuit short.

  4. D4 CHECK THE DIFFERENTIAL PUMP VOLTAGE SUPPLY CIRCUIT FOR A SHORT TO GROUND
    • Measure the resistance  between:
      Positive Lead Negative Lead
      Pin Circuit Pin Circuit
      C3427-1 CYT14 (VT/OG) - Ground
      C3427-2 CYT14 (VT/OG) - Ground
      Fig 2: Identifying Differential Pump Connector Terminals
      G08642316Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms?
    • Yes  : GO to D5.
    • No  : REPAIR the circuit.
  5. D5 CHECK THE DIFFERENTIAL PUMP VOLTAGE SUPPLY CIRCUIT FOR AN OPEN
    • Measure the resistance  between:
      Positive Lead Negative Lead
      Pin Circuit Pin Circuit
      Relay Cavity 5 CYT14 (VT/OG) C3427-1 CYT14 (VT/OG)
      Relay Cavity 5 CYT14 (VT/OG) C3427-2 CYT14 (VT/OG)

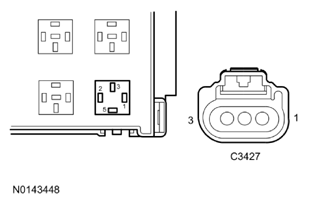

      Fig 3: Identifying Differential Pump Relay Cavity 5 Connector Terminals
      G08642317Courtesy of FORD MOTOR CO.
    • Is the resistance less than 3 ohms?
    • Yes  : GO to D6.
    • No  : INSPECT in-line connector C237 for corrosion, bent pins and pushed-out terminals. VERIFY in-line connector C237 is fully seated and connected. REPAIR or INSTALL new as necessary.

      If in-line connector C237 is OK, REPAIR the circuit.

  6. D6 CHECK THE DIFFERENTIAL PUMP GROUND CIRCUIT FOR AN OPEN
    • Measure the resistance  between:
      Positive Lead Negative Lead
      Pin Circuit Pin Circuit
      C3427-3 GD171 (BK/GY) - Ground
      Fig 4: Identifying Differential Pump Connector Terminals
      G08642318Courtesy of FORD MOTOR CO.
    • Is the resistance less than 3 ohms?
