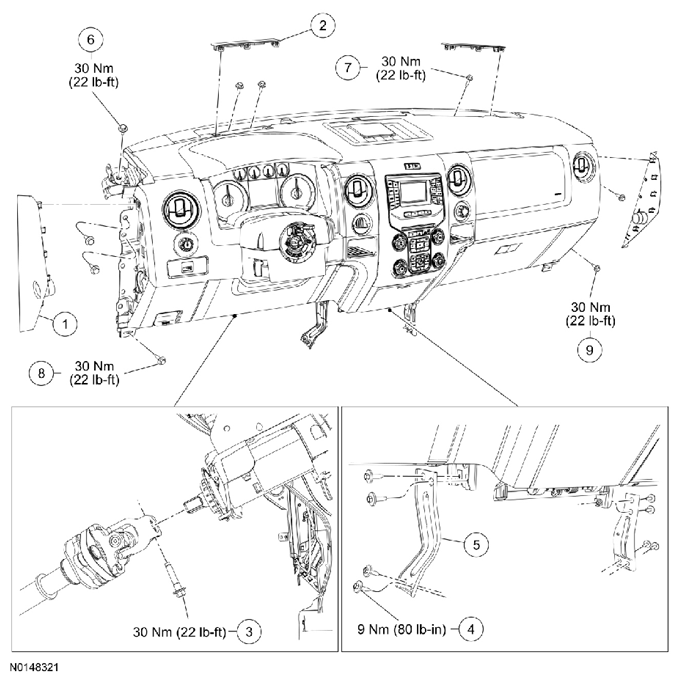

| 1 |
04480 RH/04481 LH |
Instrument panel side finish panel |
| 2 |
043C54 |
Instrument panel upper cowl trim panel |
| 3 |
N808684 |
Steering column shaft-to-steering column bolt |
| 4 |
N807316 |
Center instrument panel support bracket bolt (4 required per side) |
| 5 |
045F38 LH/045B00 RH |
Center instrument panel support bracket (2 required) |
| 6 |
W706426 |
LH instrument panel upper bolt (3 required) |
| 7 |
W706426 |
RH instrument panel upper bolt |
| 8 |
W706426 |
LH instrument panel side bolt (3 required) |
| 9 |
W706426 |
RH instrument panel side bolt (2 required) |
