High Pressure Fuel System
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

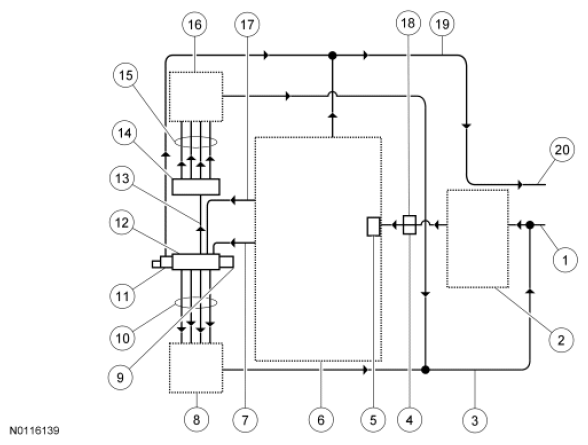

| Item | Number | Description |
|---|---|---|
| 1 | - | Low pressure fuel supply from the diesel fuel conditioning module |
| 2 | - | Engine mounted secondary fuel filter |
| 3 | - | Fuel injector return fuel |
| 4 | - | Fuel pressure switch |
| 5 | - | Fuel volume control valve |
| 6 | - | High pressure injection pump |
| 7 | - | LH fuel rail supply tube |
| 8 | - | LH fuel injectors (4 required) |
| 9 | - | Fuel rail pressure sensor |
| 10 | - | LH fuel injector supply tubes (4 required) |
| 11 | - | Pressure control valve |
| 12 | - | LH fuel rail |
| 13 | - | RH fuel rail supply tube |
| 14 | - | RH fuel rail |
| 15 | - | RH fuel injector supply tubes (4 required) |
| 16 | - | RH fuel injectors (4 required) |
| 17 | - | LH fuel rail supply tube |
| 18 | - | Fuel temperature sensor |
| 19 | - | Fuel rail and high pressure injection pump return fuel |
| 20 | - | Low pressure fuel return to the diesel fuel conditioning module |
