Transmission - Rear Wheel Drive (RWD): Removal

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Transmission Cooler Flushing Job Aid on the FMCDealer website.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, BATTERY MOUNTING & BATTERY CABLES .
  3. If transmission disassembly or installation of a new transmission is necessary, remove the 21 transmission fluid pan bolts and remove the transmission fluid pan. Drain the transmission fluid into a container.
    Fig 1: Locating Transmission Fluid Pan Bolts
    G06127145Courtesy of FORD MOTOR CO.
  4. Install the transmission fluid pan and the 21 transmission fluid pan bolts. Tighten transmission fluid pan bolts in a crisscross pattern.
    • Tighten to 12 Nm (106 lb-in).
      Fig 2: Locating Transmission Fluid Pan Bolts
      G06127145Courtesy of FORD MOTOR CO.
  5. Remove the exhaust Y-pipe. For additional information, refer to EXHAUST SYSTEM .
  6. Remove the driveshaft. For additional information, refer to DRIVESHAFT .
  7. NOTE: Make sure the transmission jack contacts the outer ribs of the transmission fluid pan.
    NOTE: Make sure the transmission is securely fastened to the transmission jack.

    Using a high-lift transmission jack, support the transmission and remove the jack stand.

  8. Remove the fuel line bracket bolt from the left side of the transmission and position the fuel line bracket aside.
    Fig 3: Locating Fuel Line Bracket Aside
    G07962590Courtesy of FORD MOTOR CO.
  9. If equipped, remove the nut and the selector lever cable splash shield.
    Fig 4: Locating Selector Lever Cable Splash Shield Nut
    G07412445Courtesy of FORD MOTOR CO.

    Vehicles equipped with 3.7L engine Rear Wheel Drive (RWD)

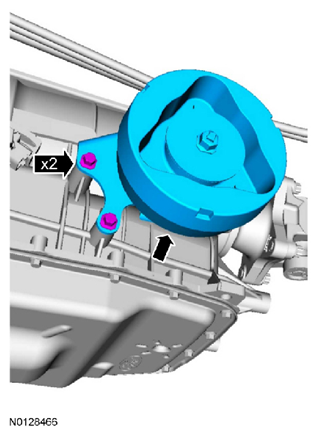

  10. Remove the 2 transmission damper bolts and remove the transmission damper.
    Fig 5: Locating Transmission Damper And Bolts
    G08340647Courtesy of FORD MOTOR CO.

    Vehicles equipped with a floor shift

  11. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
    NOTE: The 3.5L engine is shown in illustration, the 3.7L, 5.0L and 6.2L engines are similar.

    Rotate the cable adjustment lock upward and remove the selector lever cable from the manual control lever.

    Fig 6: Rotating Cable Adjustment Lock
    G08341213Courtesy of FORD MOTOR CO.

    Vehicles equipped with a column shift

  12. Move the locking tab up and disconnect the selector lever cable from the manual control lever.
    Fig 7: Locating Selector Lever Cable Adjustment Lock
    G06127235Courtesy of FORD MOTOR CO.

    All vehicles

  13. NOTE: The column shift is shown in illustration, the floor shift is similar.

    Remove the selector lever cable bracket bolts and remove the selector lever cable bracket.

    Fig 8: Locating Selector Lever Bracket Bolts
    G06127276Courtesy of FORD MOTOR CO.

    Vehicles equipped with a 5.0L or 6.2L engine

  14. Remove the transmission-to-engine bolt.
    Fig 9: Locating Transmission Case Bolt
    G06127281Courtesy of FORD MOTOR CO.

    All vehicles

  15. Remove and discard the transmission fluid cooler tube bracket bolt.
    Fig 10: Locating Transmission Fluid Cooler Tube Bracket Bolt
    G06127280Courtesy of FORD MOTOR CO.
  16. NOTE: The 3.5L and 3.7L engine is shown in illustration, the 5.0L and the 6.2L engines are similar.

    Remove the transmission fluid cooler tube bracket nut and position the transmission fluid cooler tube bracket and tubes aside.

    Fig 11: Locating Transmission Cooler Tube Bracket And Nut
    G07410347Courtesy of FORD MOTOR CO.
  17. Remove the starter motor. For additional information, refer to STARTING SYSTEM .

    Vehicles equipped with a 3.5L or 3.7L engine

  18. Remove the 2 pin-type retainers and the access cover.
    Fig 12: Locating Access Cover And Pin-Type Retainers
    G07476065Courtesy of FORD MOTOR CO.
  19. Remove and discard the 4 flexplate-to-torque converter nuts.
    Fig 13: Locating Torque Converter Nut
    G07476066Courtesy of FORD MOTOR CO.

    Vehicles equipped with a 5.0L or 6.2L engine

  20. Remove the flexplate inspection cover bolts and the flexplate inspection cover.
    Fig 14: Identifying Flexplate Inspection Cover And Bolts
    G06127277Courtesy of FORD MOTOR CO.
  21. Remove the rubber torque converter nut access cover.
    Fig 15: Locating Rubber Torque Converter Access Cover
    G06127278Courtesy of FORD MOTOR CO.
  22. Remove and discard the 4 flexplate-to-torque converter nuts.
    Fig 16: Locating Flexplate-To-Torque Converter Nut
    G06127279Courtesy of FORD MOTOR CO.

    All vehicles

  23. NOTE: Do not pull on the wiring harness to disconnect the electrical connector or damage to the electrical connector will occur.

    Disconnect the transmission electrical connector by twisting the outer shell and pulling back on the electrical connector.

    Fig 17: Locating Transmission Vehicle Harness Connector
    G06127319Courtesy of FORD MOTOR CO.
  24. Disconnect the wiring harness retainers from the top of the transmission.
    Fig 18: Locating Transmission Wiring Harness Retainers
    G07962604Courtesy of FORD MOTOR CO.

    Vehicles equipped with a 3.5L or 3.7L engine

  25. WARNING: Always secure transmission, transfer case, and axle assemblies to their service jack. Avoid obstructions while lowering and raising the jack. Improperly secured assemblies or contact with obstructions may cause the assembly to fall off the jack, which could result in serious personal injury.
    NOTE: The top 2 transmission-to-engine bolts secure the fuel line bracket to the transmission case.
    Fig 19: Locating Transmission-To-Engine Bolts
    G07962605Courtesy of FORD MOTOR CO.
  26. Remove the 10 transmission-to-engine bolts.

    Vehicles equipped with a 5.0L or 6.2L engine

  27. WARNING: Always secure transmission, transfer case, and axle assemblies to their service jack. Avoid obstructions while lowering and raising the jack. Improperly secured assemblies or contact with obstructions may cause the assembly to fall off the jack, which could result in serious personal injury.
    NOTE: Make sure to not pinch the transmission wiring harness between the transmission and the body or damage can occur.
    NOTE: Remove the top 2 transmission-to-engine bolts before removing the rest of the bolts.
    NOTE: The top left transmission-to-engine bolt secures the fuel line bracket to the transmission case.
    Fig 20: Locating Transmission Case Bolt
    G06127289Courtesy of FORD MOTOR CO.
  28. Remove the 6 remaining transmission-to-engine bolts.

    All vehicles

  29. Slide the transmission back enough to install the Torque Converter Retainer.
    Fig 21: Identifying Torque Converter Retainer
    G06127290Courtesy of FORD MOTOR CO.
  30. Remove the transmission from the vehicle.
