Removal and Installation

Open the glove compartment.
NOTE: Forcing the glove compartment past the stops will damage the dampener.
If equipped, disconnect the dampener.

Fig 1: Locating Glove Compartment Dampener
Courtesy of FORD MOTOR CO.
Release the stops.

Fig 2: Locating Glove Compartment Tabs
Courtesy of FORD MOTOR CO.
Remove the 3 glove compartment screws and the glove compartment.

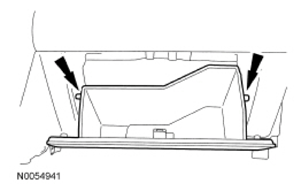

Fig 3: Locating Glove Compartment Screws
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
