Parking Brake Shoes: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Silicone Brake Caliper Grease and Dielectric Compound XG-3-A |
ESE-M1C171-A |

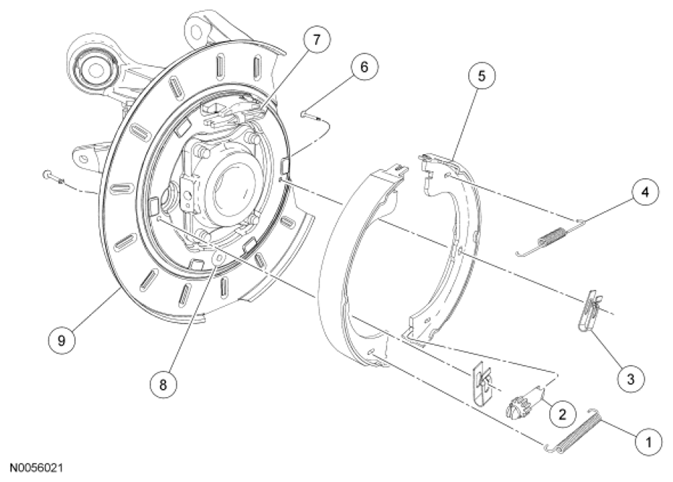

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Parking brake shoe adjuster spring (part of 2648) |
| 2 | 2041 | Parking brake shoe adjuster |
| 3 | - | Parking brake shoe retaining clip (2 required) (part of 2648 |
| 4 | - | Parking brake shoe return spring (part of 2648) |
| 5 | 2A753 | Parking brake shoe (part of 2648) |
| 6 | - | Parking brake shoe retaining pin (2 required) (part of 2648) |
| 7 | 2404 | Parking brake shoe lever boot (Navigator/Expedition) |
| 8 | 2092 | Adjuster hole plug |
| 9 | 2C029 LH/2C028 RH | Brake disc shield |
