Parking Brake Cable - Front: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

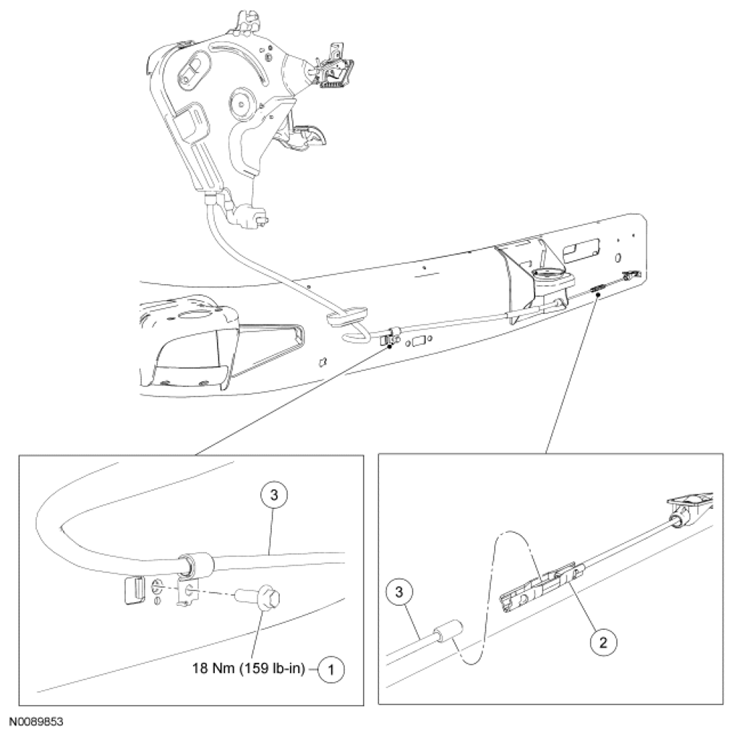

Fig 1: Front Parking Brake Cable Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W506423	Front park brake cable P-clip-to-frame bolt
2	-	Park brake cable union
3	2853	Front park brake cable
