Cluster And Panel Illumination

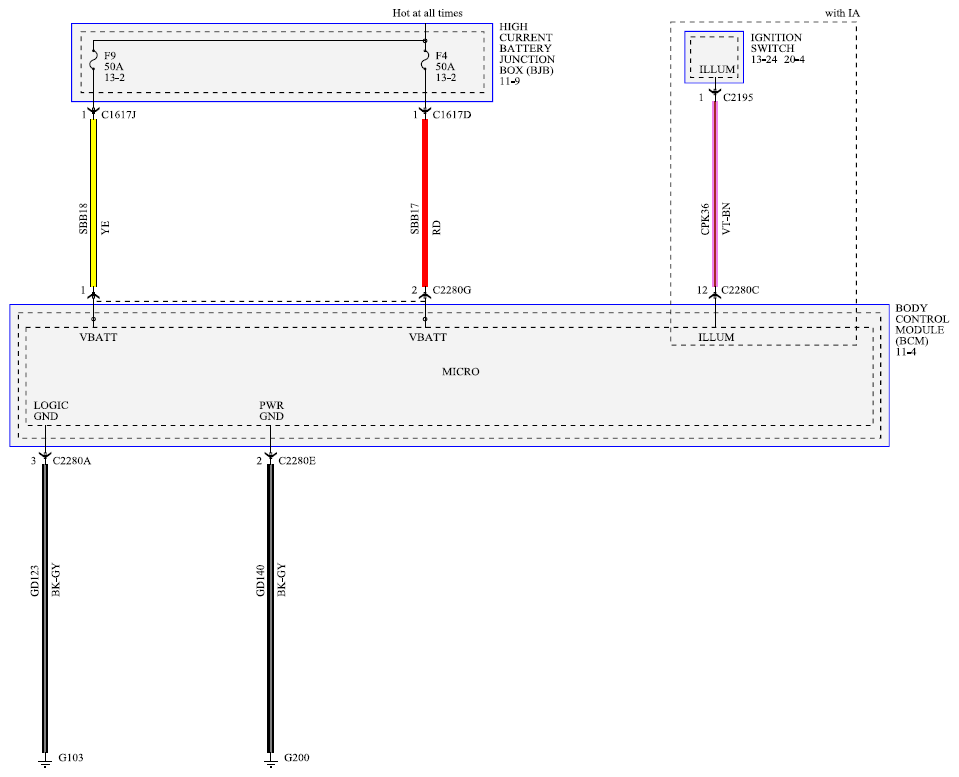

Fig 1: Cluster And Panel Illumination - Wiring Diagram (1 Of 5)
G09222712Courtesy of FORD MOTOR CO.

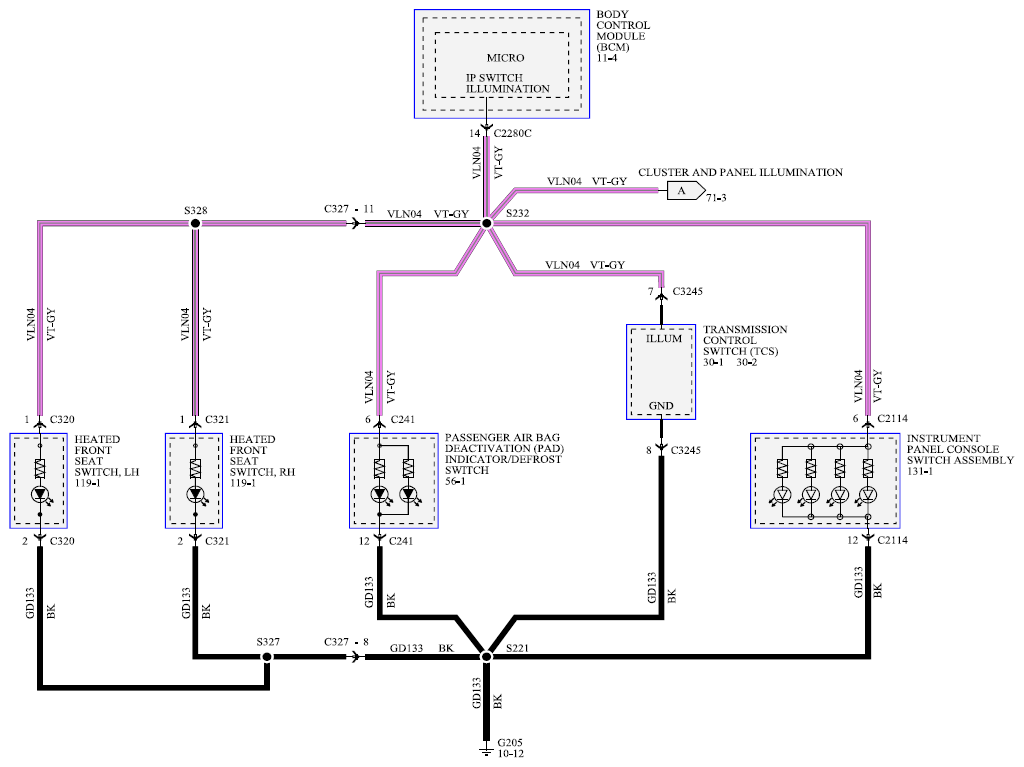

Fig 2: Cluster And Panel Illumination - Wiring Diagram (2 Of 5)
G09222713Courtesy of FORD MOTOR CO.

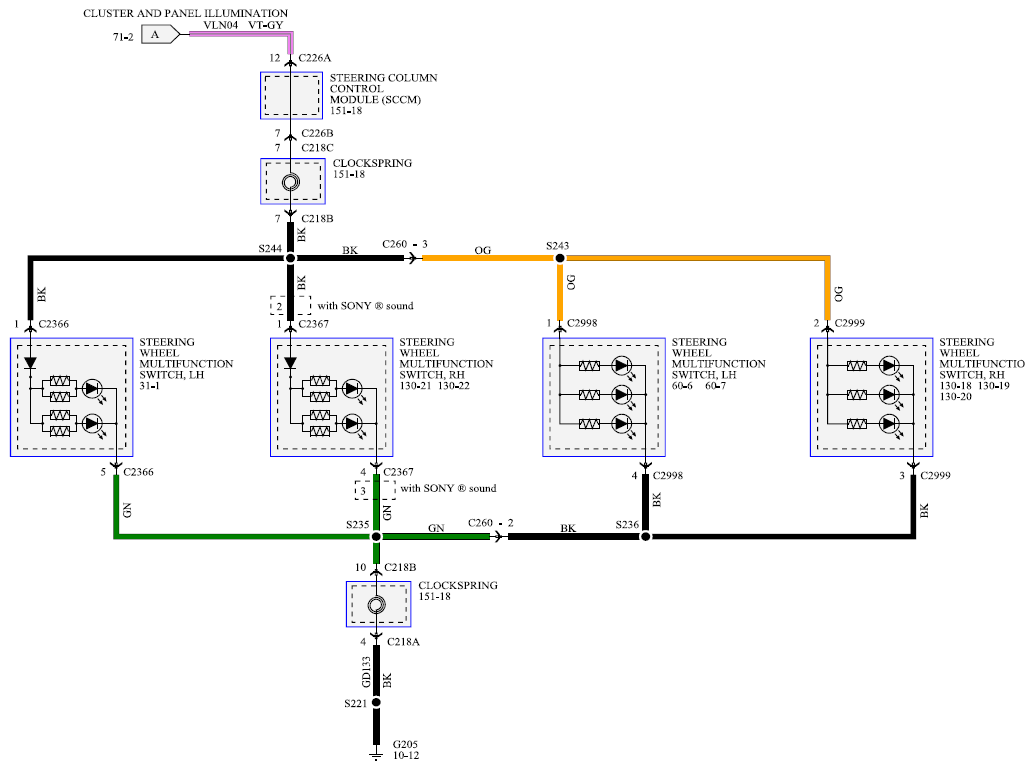

Fig 3: Cluster And Panel Illumination - Wiring Diagram (3 Of 5)
G09222714Courtesy of FORD MOTOR CO.

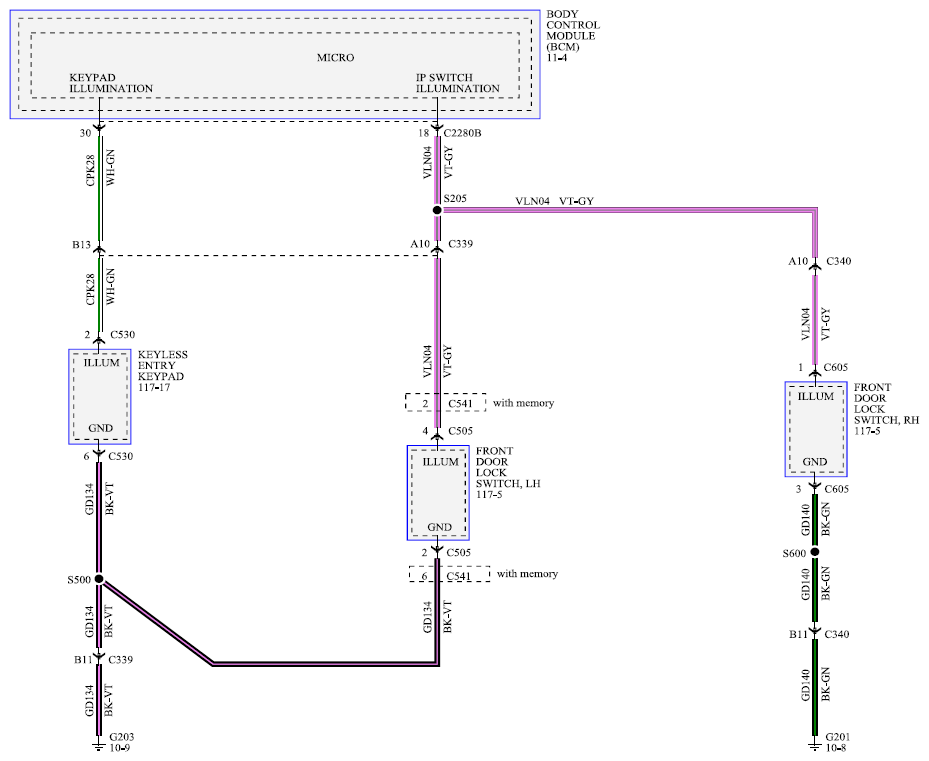

Fig 4: Cluster And Panel Illumination - Wiring Diagram (4 Of 5)
G09222715Courtesy of FORD MOTOR CO.

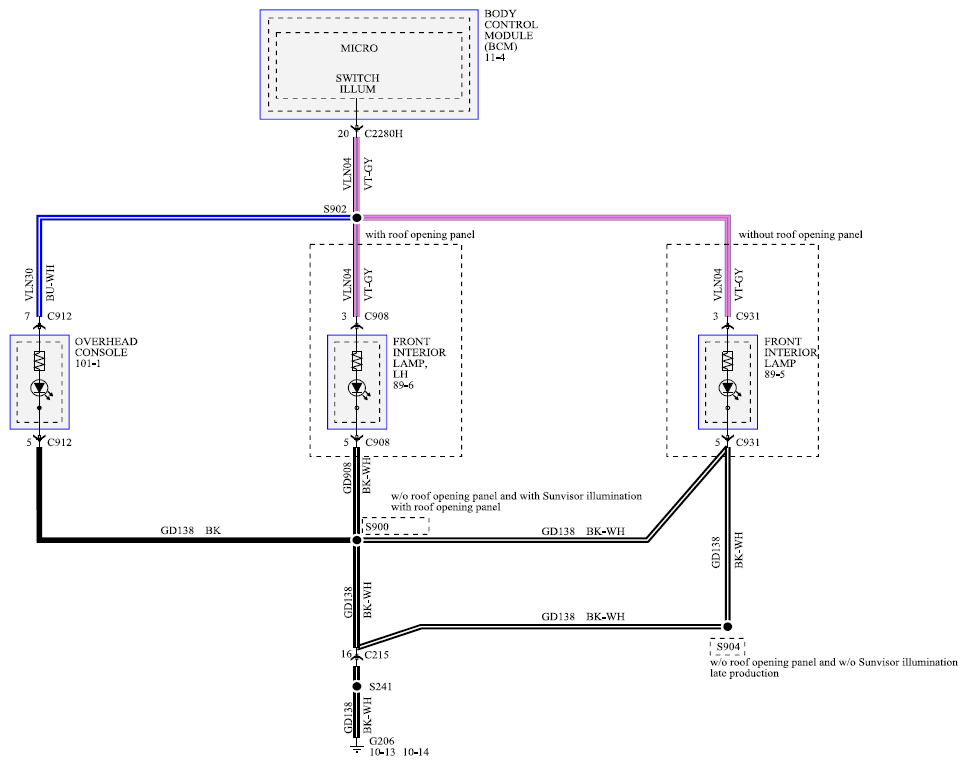

Fig 5: Cluster And Panel Illumination - Wiring Diagram (5 Of 5)
G09222716Courtesy of FORD MOTOR CO.
