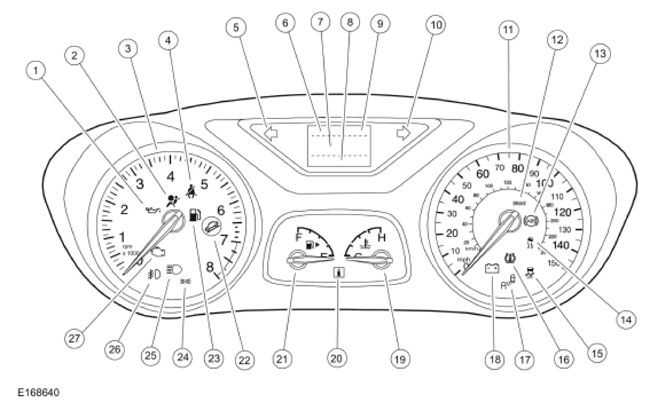

| 1 |
Low oil pressure warning indicator |
| 2 |
Airbag warning indicator |
| 3 |
Tachometer |
| 4 |
Safety belt warning indicator |
| 5 |
LH
turn indicator |
| 6 |
PRNDL display |
| 7 |
Message center display area |
| 8 |
Odometer display area |
| 9 |
Outside air temperature/compass display area |
| 10 |
RH
turn indicator |
| 11 |
Speedometer |
| 12 |
Brake warning indicator |
| 13 |
ABS
warning indicator |
| 14 |
Stability-traction control indicator (sliding car icon) |
| 15 |
Stability-traction control disabled indicator (sliding car OFF icon) |
| 16 |
TPMS
warning indicator |
| 17 |
Blind Spot Information System (BLIS®) indicator |
| 18 |
Charging system warning indicator |
| 19 |
Temperature gauge |
| 20 |
Information indicator |
| 21 |
Fuel gauge |
| 22 |
Grade assist indicator |
| 23 |
Low fuel indicator |
| 24 |
Lights on indicator |
| 25 |
High beam indicator |
| 26 |
Fog lamp indicator |
| 27 |
MIL |
