Brake Booster: Notes

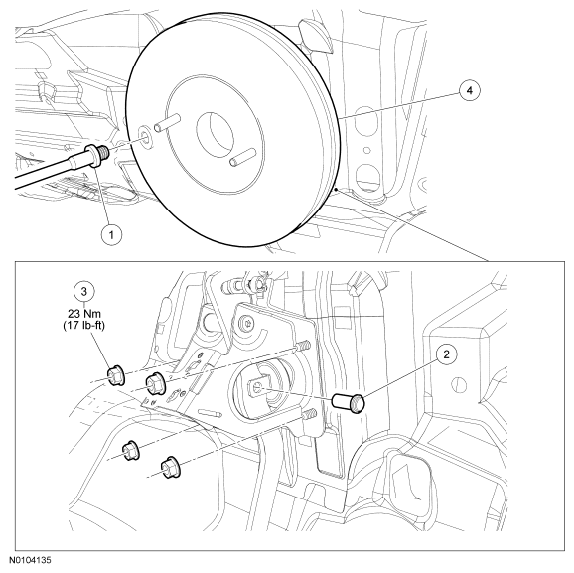

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications
G06256187Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2420 Vacuum hose/check valve assembly
2 2L523 Brake booster rod pin
3 W520413 Brake booster nut (4 required)
4 2005 Brake booster
