Instrument Cluster (IC): Notes

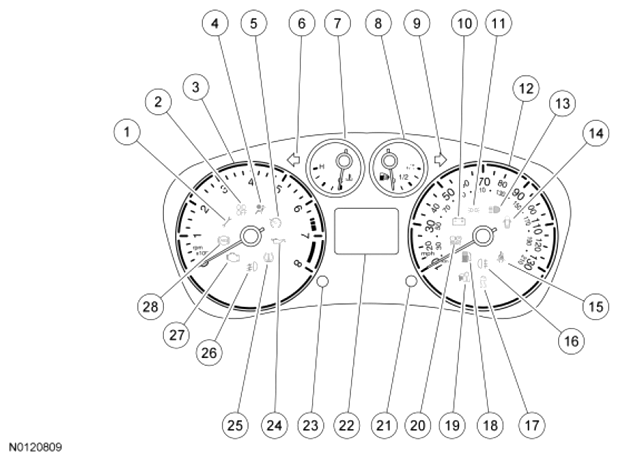

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Powertrain malfunction (wrench) warning indicator |
| 2 | - | Overdrive (O/D) off |
| 3 | - | Tachometer |
| 4 | - | Air bag warning indicator |
| 5 | - | Cruise control indicator |
| 6 | - | LH turn indicator |
| 7 | - | Temperature gauge |
| 8 | - | Fuel gauge |
| 9 | - | RH turn indicator |
| 10 | - | Charging system warning indicator |
| 11 | - | Lights on indicator |
| 12 | - | Speedometer |
| 13 | - | High beam indicator |
| 14 | - | Door ajar warning indicator |
| 15 | - | Safety belt warning indicator |
| 16 | - | Rear fog lamp indicator |
| 17 | - | Traction control indicator |
| 18 | - | Low fuel warning indicator |
| 19 | - | Anti-theft indicator |
| 20 | - | Brake warning indicator |
| 21 | - | Select button |
| 22 | - | Integrated circuit display |
| 23 | - | Reset button |
| 24 | - | Low engine oil pressure warning indicator |
| 25 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 26 | - | Front fog lamp indicator |
| 27 | - | Malfunction Indicator Lamp (MIL) |
| 28 | - | ABS warning indicator |
The Instrument Cluster (IC) contains gauges, informational indicators and warning indicators that are designed to provide the driver with the system status and to alert the driver that certain conditions exist in the vehicle.
The IC uses a 3-line display of basic informational items such as the odometer, trip odometer and clock (for vehicles not equipped with an Audio Control Module (ACM).
All indicator lamps are LEDs, which are not replaceable.
