Brake Vacuum Pump - 1.6L EcoBoost (132kW/180PS) - Sigma: Removal
WARNING: This page is about a different car, the 2014 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: AIR CLEANER OUTLET PIPE .
- Torque:
89 lb.in (10 Nm)
- Torque:
89 lb.in (10 Nm)
- Torque:
89 lb.in (10 Nm)
-

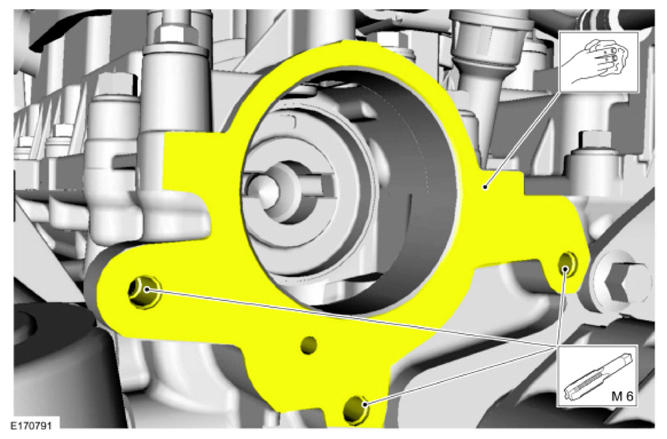

NOTE: Make sure the mating surfaces are clean and free of foreign material and thread lock residue is cleaned from the bolt holes.
