Brake Vacuum Pump - 1.6L EcoBoost (132kW/180PS) - Sigma: Installation

WARNING: This page is about a different car, the 2014 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

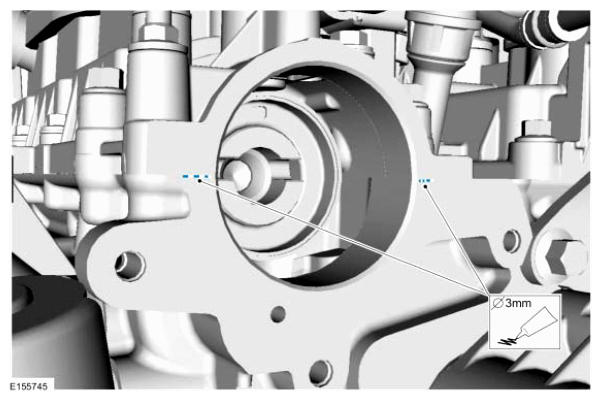

NOTE: If the brake vacuum pump is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Failure to follow this procedure can cause future oil leakage.

Material: Gasket Maker/TA-16 (WSK-M2G348-A5)
NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.

To install, reverse the removal procedure.
