Brake Vacuum Pump - 1.5L EcoBoost (118kW/160PS): Removal
WARNING: This page is about a different car, the 2014 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Torque:
44 lb.in (5 Nm)

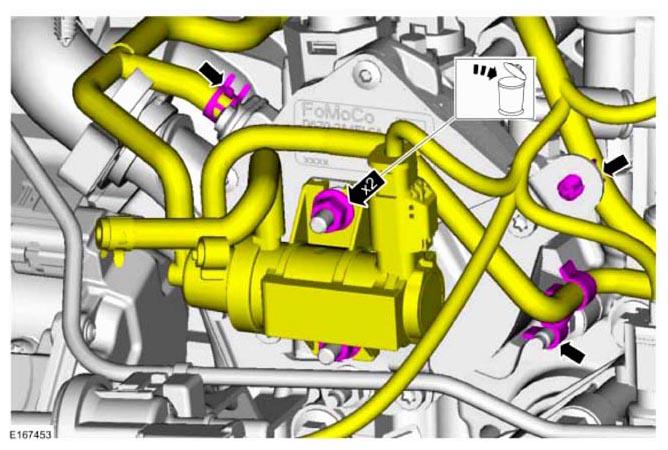

- Torque:
Bolt: 71 lb.in (8 Nm)
Clamps: 44 lb.in (5 Nm)
- Torque:
62 lb.in (7 Nm)
- Torque:
62 lb.in (7 Nm)
-

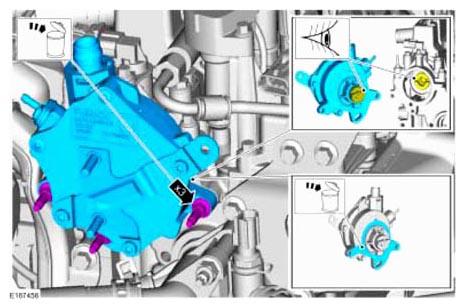

NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.
Torque: 89 lb.in (10 Nm)
-

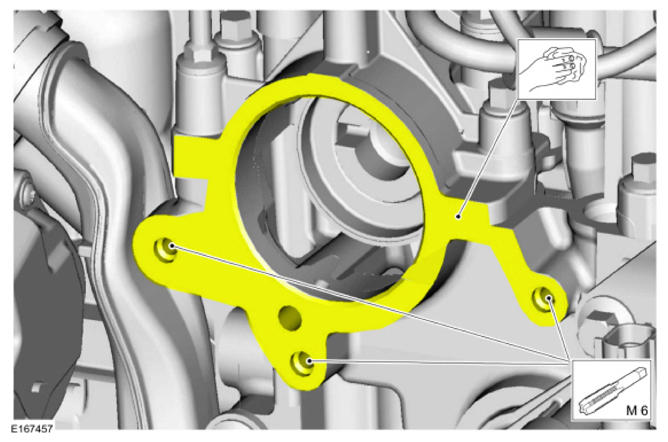

NOTE: Make sure the mating surfaces are clean and free of foreign material and thread lock residue is cleaned from the bolt holes.
Material: Motorcraft® Metal Surface Prep/ZC-31-B
