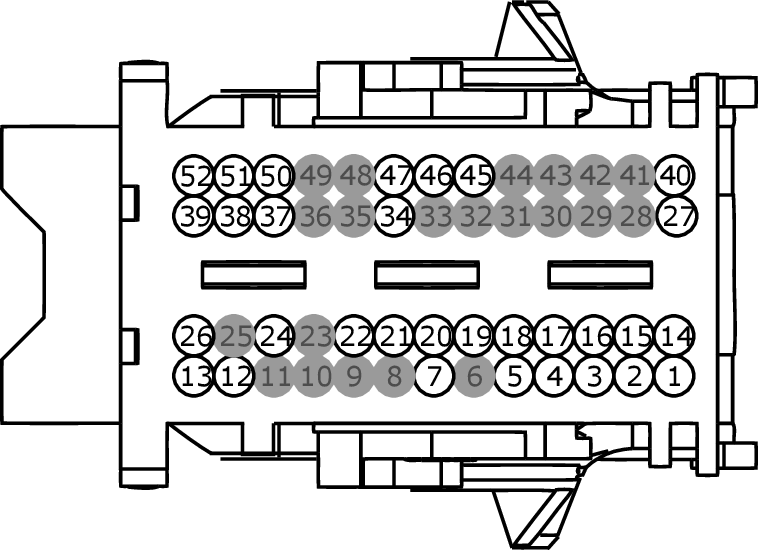

Connector End View (C2280G) - BODY CONTROL MODULE (BCM)
Description
BODY CONTROL MODULE (BCM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPR63 (GY-YE) |
22 |
SWITCH - POWER LIFTGATE # OPEN/CLOSE |
|
|
2 |
CLN34 (YE) |
26 |
CTRL MOD. - DOOR WARNING LAMP DRIVER + |
|
|
2 |
CLS34 (GY) |
26 |
SWITCH - PARK LAMPS |
|
|
3 |
CLN56 (BN) |
26 |
DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN |
|
|
4 |
CMP18 (GN-BN) |
22 |
SWITCH - PARKING AID |
|
|
5 |
CPK35 (YE) |
22 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + |
|
|
5 |
CPK35 (YE) |
26 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
CLN55 (WH) |
26 |
DIMMER - IP/SWITCH ILLUMINATION # DIM UP |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
CDC26 (GY-BN) |
26 |
RELAY - STARTER INHIBIT |
|
|
13 |
VDN07 (WH) |
26 |
CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE |
|
|
13 |
VDN07 (WH-VT) |
22 |
CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE |
|
|
14 |
CE903 (BU-OG) |
22 |
SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT) |
|
|
14 |
CPL24 (YE-BU) |
22 |
SWITCH - FUEL FILLER DOOR # RELEASE |
|
|
15 |
CLF24 (YE-BU) |
26 |
SWITCH - HEADLAMP ON |
|
|
16 |
CLF23 (VT) |
26 |
SWITCH - HEADLAMP OFF |
|
|
17 |
CMP32 (GN) |
22 |
SWITCH - ACTIVE PARK ASSIST |
|
|
18 |
RRH02 (GN-WH) |
26 |
CTRL MOD. - SWITCH HORN |
|
|
19 |
CLS32 (BN-YE) |
26 |
SWITCH - HAZARD |
|
|
20 |
CLF21 (GY-BN) |
26 |
SWITCH - FOG LAMPS FRONT |
|
|
21 |
CLF19 (VT-WH) |
26 |
SWITCH - AUTOLAMP |
|
|
22 |
RLF14 (GY-BN) |
22 |
SENSOR - AUTOLAMP DAY/NIGHT |
|
|
22 |
RLF14 (GY-BN) |
26 |
SENSOR - AUTOLAMP DAY/NIGHT |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
VLF14 (BU) |
26 |
SENSOR - AUTOLAMP DAY/NIGHT |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
VPL56 (BU-WH) |
26 |
RECEIVER - REMOTE RF |
|
|
27 |
RPK05 (YE-OG) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 |
|
|
28 |
* |
* |
Not Used |
|
|
29 |
* |
* |
Not Used |
|
|
30 |
* |
* |
Not Used |
|
|
31 |
* |
* |
Not Used |
|
|
32 |
* |
* |
Not Used |
|
|
33 |
* |
* |
Not Used |
|
|
34 |
CMP02 (BU) |
26 |
CTRL MOD. - PARKING AID # INDICATOR STATUS |
|
|
35 |
* |
* |
Not Used |
|
|
36 |
* |
* |
Not Used |
|
|
37 |
CDC34 (WH-OG) |
20 |
SWITCH - IGNITION # RUN, START |
|
|
38 |
CDC30 (BU-WH) |
26 |
SWITCH - IGNITION # KEY IN |
|
|
39 |
CPK36 (VT) |
22 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED |
|
|
39 |
CPK36 (VT) |
26 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED |
|
|
40 |
VPK05 (BN-GN) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 |
|
|
41 |
* |
* |
Not Used |
|
|
42 |
* |
* |
Not Used |
|
|
43 |
* |
* |
Not Used |
|
|
44 |
* |
* |
Not Used |
|
|
45 |
VLN04 (BU-WH) |
26 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
|
45 |
VLN04 (VT) |
26 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
|
46 |
CET53 (BU-OG) |
26 |
CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK |
|
|
46 |
CET53 (BU-OG) |
22 |
CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK |
|
|
47 |
CE436 (VT) |
26 |
CTRL MOD. -WAKE UP PCM |
|
|
47 |
CE436 (VT) |
22 |
CTRL MOD. -WAKE UP PCM |
|
|
47 |
CE436 (VT-OG) |
22 |
CTRL MOD. -WAKE UP PCM |
|
|
48 |
* |
* |
Not Used |
|
|
49 |
* |
* |
Not Used |
|
|
50 |
CDC33 (VT-GN) |
22 |
SWITCH - IGNITION # RUN, ACCESSORY |
|
|
51 |
CPK34 (BN-VT) |
22 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + |
|
|
51 |
CPK34 (BN-VT) |
20 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + |
|
|
52 |
VDN01 (BU-WH) |
26 |
CTRL MOD. - LIN BUS # SPDJB 1 |
