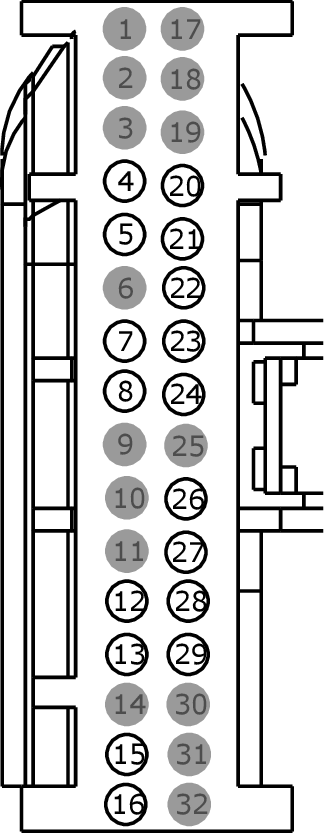

Connector End View (C2280E) - BODY CONTROL MODULE (BCM)
Description
BODY CONTROL MODULE (BCM)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
VPK47 (VT) |
22 |
SENSOR - KEYLESS VEHICLE HANDLE REAR PASSENGER SIDE POWER/DATA |
|
|
5 |
VPK40 (WH-OG) |
22 |
SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
VMP17 (YE-OG) |
22 |
SENSOR - PARKING AID # REAR # |
|
|
8 |
VMP16 (YE-GY) |
22 |
SENSOR - PARKING AID # REAR # |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
VPK02 (VT-WH) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER + |
|
|
13 |
VPK01 (BN-YE) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER + |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
RPK06 (BU-WH) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 |
|
|
16 |
VPK06 (GY-VT) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 |
|
|
17 |
* |
* |
Not Used |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
RPK39 (VT-OG) |
22 |
SENSOR - KEYLESS VEHICLE HANDLE |
|
|
21 |
VPK39 (GN-VT) |
22 |
SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA |
|
|
22 |
VPK46 (GY) |
22 |
SENSOR - KEYLESS VEHICLE HANDLE REAR DRIVER SIDE POWER/DATA |
|
|
23 |
VMP15 (YE-GN) |
22 |
SENSOR - PARKING AID # REAR # |
|
|
24 |
VMP14 (WH-OG) |
22 |
SENSOR - PARKING AID # REAR # |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
LMP07 (BU-WH) |
22 |
CTRL MOD. - PARKING AID # SENSORS REAR + |
|
|
27 |
RMP07 (GN-WH) |
22 |
CTRL MOD. - PARKING AID # SENSORS REAR - |
|
|
28 |
RPK01 (WH-GN) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER - |
|
|
29 |
RPK02 (GY-YE) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER - |
|
|
30 |
* |
* |
Not Used |
|
|
31 |
* |
* |
Not Used |
|
|
32 |
* |
* |
Not Used |
