Connector End View (C1824) - INLINE
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
Harness 14B322 Harness 14B308

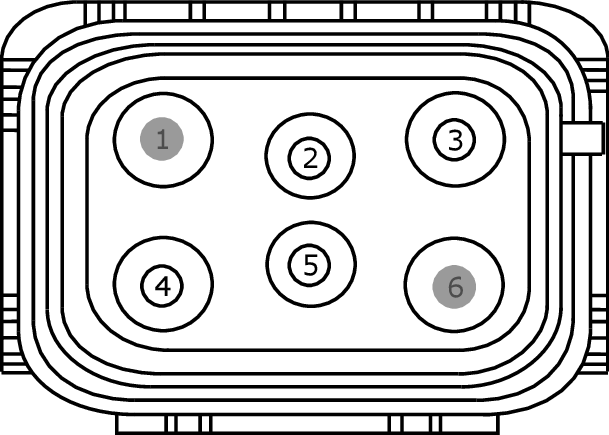

 Courtesy of FORD MOTOR COMPANY
|

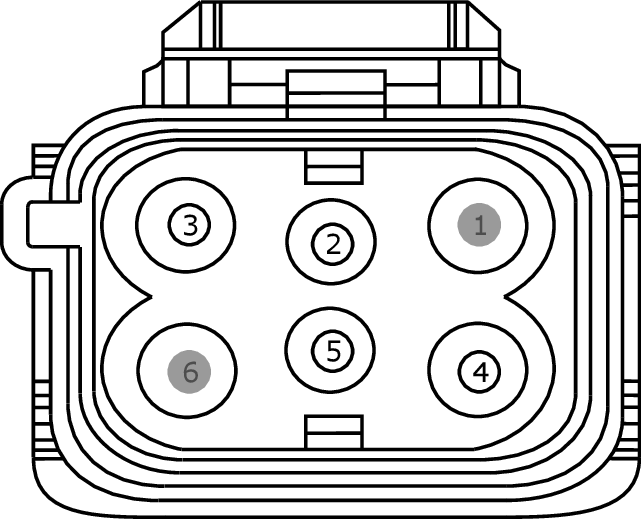

 Courtesy of FORD MOTOR COMPANY
|
|
Pin
|
Circuit
|
Gauge
|
Qualifier
|
|
1
|
*
|
*
|
|
2
|
CYB56 (WH-VT)
|
20
|
|
3
|
HYB53 (OG)
|
12
|
|
4
|
HYB54 (OG)
|
12
|
|
5
|
CYB55 (YE-GY)
|
20
|
|
6
|
*
|
*
|
14B308
|
