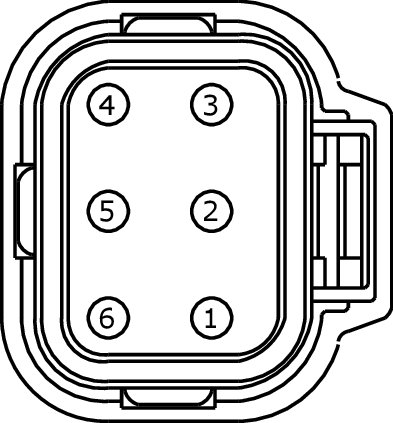

Connector End View (C1746) - ELECTRONIC EXHAUST GAS RECIRCULATION (EEGR) ASSEMBLY

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Description

ELECTRONIC EXHAUST GAS RECIRCULATION (EEGR) ASSEMBLY

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE101 (WH-VT)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (EGRMC1)
2	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR)
3	CE102 (YE-BU)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (EGRMC2)
4	CE103 (BU-BN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (EGRMC3)
5	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR)
6	CE104 (GN-YE)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (EGRMC4)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1115

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BGAB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - EGR Valve Position

Valve - EGR
