Connector End View (C1651) - ACTIVE GRILLE SHUTTER
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
ACTIVE GRILL SHUTTER
Color
Harness
15K867
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD120 (BK-GN) |
18 |
GROUND - FENDER FRONT LEFT |
|
|
1 |
GD120 (BK-GN) |
20 |
GROUND - FENDER FRONT LEFT |
|
|
2 |
VDN06 (WH-GN) |
20 |
CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 |
|
|
3 |
CBK03 (GY) |
18 |
FUSE - 3 OR CIRCUIT BREAKER |
|
|
4 |
* |
* |
Not Used |
|

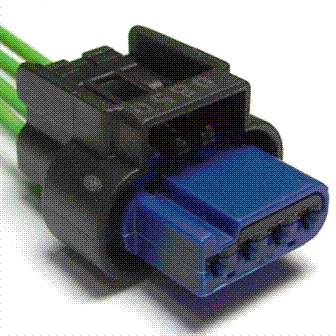

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1309 |
Service Part Number: CU2Z-14S411-AYA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Motor - Active Grill Shutter |
