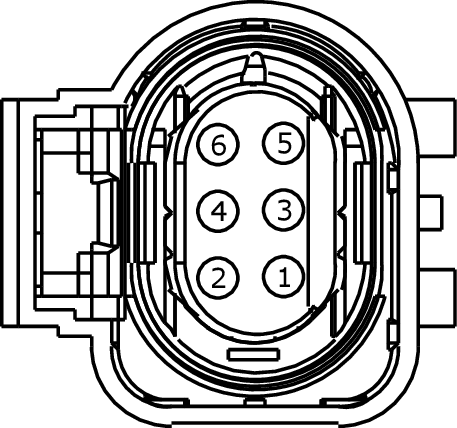

Connector End View (C1631) - UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Description

UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE451 (BN-YE)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11)
2	LE448 (GY-BU)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UO2SGREF11)
3	CE235 (GN-BN)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (UO2SHTR11)
4	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR)
5	LE452 (GN)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SPCT11)
6	VE826 (BN-VT)	18	SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1355

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AFA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Control - Electronic Throttle

Sensor - O2 (HEGO/ EGO)
