Connector End View (C1582) - PROXIMITY WARNING RADAR UNIT

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Description

PROXIMITY WARNING RADAR UNIT

Color

Harness

12A581

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP32 (BN-RD)	20	FUSE - 32 OR CIRCUIT BREAKER
2	*	*	Not Used
3	*	*	Not Used
4	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT
4	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT
5	*	*	Not Used
6	*	*	Not Used
7	VDB26 (GY-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2
8	VDB25 (GN-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2
9	*	*	Not Used
10	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used

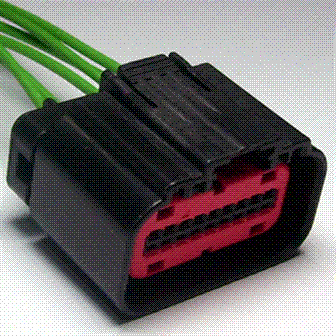

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1342

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-GA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Module - Adaptive Cruise Control

Pigtail Kit Part Number

WPT-1411

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-GB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Module - Adaptive Cruise Control

Module - Occupant Classification

Module - Reverse Park Aid (RPA)
