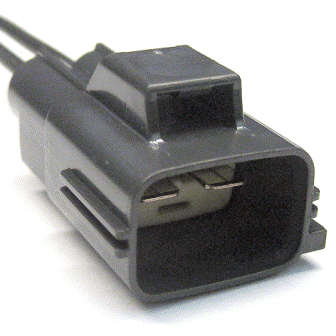

Connector End View (C1560) - BRAKE VACUUM PUMP
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
BRAKE VACUUM PUMP
Color
Harness
3C221
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CCB29 (WH-GN) |
10 |
RELAY - VACUUM PUMP |
|
|
2 |
GD120 (BK-GN) |
10 |
GROUND - FENDER FRONT LEFT |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-916 |
Service Part Number: 8U2Z-14S411-PA Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses Pump - Vacuum |
