Connector End View (C1463B) - POWER STEERING CONTROL MODULE (PCSM)
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
POWER STEERING CONTROL MODULE (PCSM)
Color
Harness
3C221
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CBB19 (BN-WH) |
18 |
FUSE - 19 OR CIRCUIT BREAKER |
|
|
2 |
VDB25 (GN-OG) |
18 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 |
|
|
3 |
VDB26 (GY-BU) |
18 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 |
|
Available Pigtail Kits |
|
|

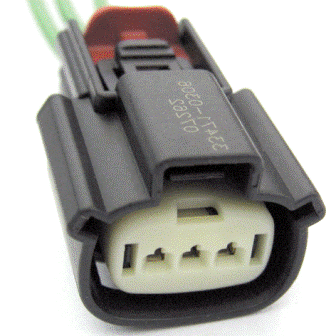

Pigtail Kit Part Number WPT-931 |
Service Part Number: 9U2Z-14S411-EA Gauge: 14 Pin material: Silver Cavities: 3 Vehicle Uses Coil - Ignition |
