Removal And Installation: Radiator: Removal

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Engine Cooling System Health and Safety Precautions .

  1. 2.

    Refer to: Cooling Fan Motor and Shroud .

  1. 3.

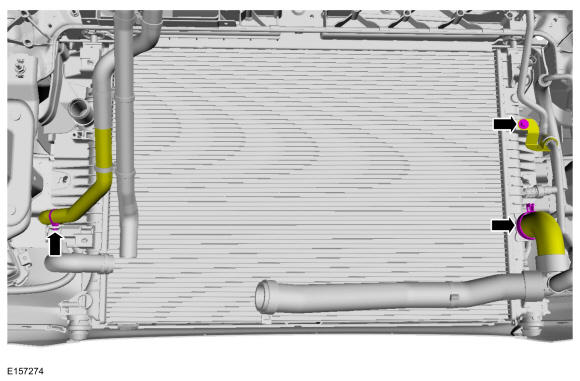

    Release the clamps and disconnect the coolant hoses. Remove the A/C tube bracket bolt.

    Torque: 62 lb.in (7 Nm)

GFD71093Courtesy of FORD MOTOR COMPANY

  1. 4.

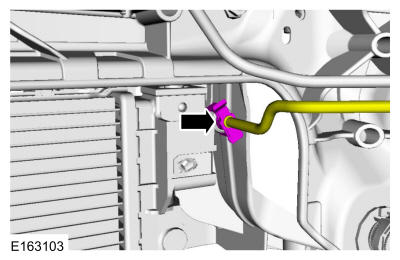

    Disconnect the degas bottle hose from the radiator.

    Torque: 62 lb.in (7 Nm)

GFD71094Courtesy of FORD MOTOR COMPANY

  1. 5.

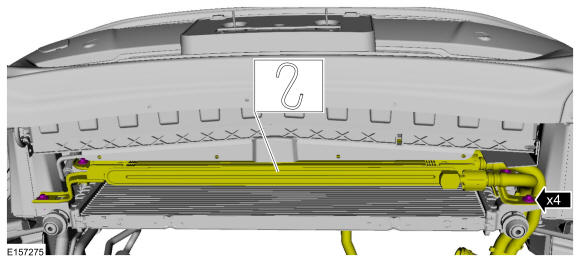

    Support the transmission fluid cooler/electric powertrain radiator assembly and remove the bolts.

    Torque: 53 lb.in (6 Nm)

GFD71095Courtesy of FORD MOTOR COMPANY

  1. 6.

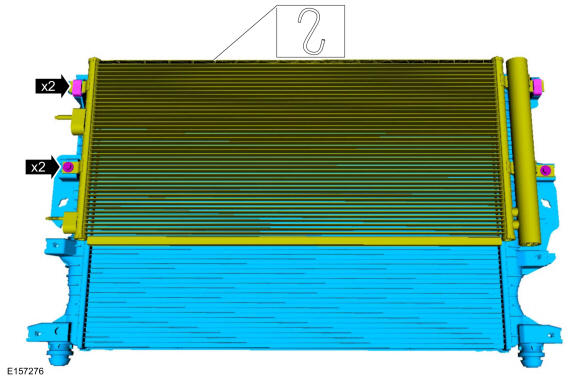

    Support the A/C condenser, remove the bolts, release the tabs and remove the radiator from the vehicle.

    Torque: 53 lb.in (6 Nm)

GFD71096Courtesy of FORD MOTOR COMPANY

  1. 7.

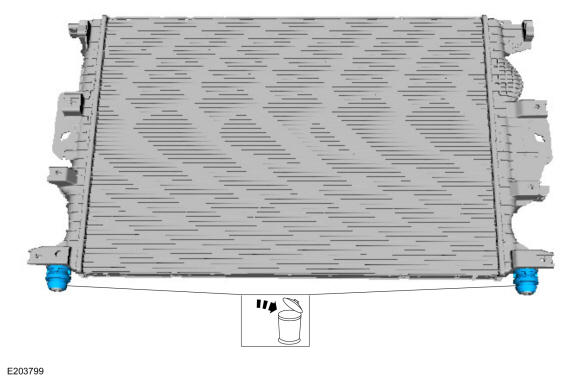

    Remove and discard the radiator lower isolators.
GFD71097Courtesy of FORD MOTOR COMPANY
