Heater Hoses: Removal
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- 1.
Refer to: Air Cleaner
.
- 2.
Refer to: Air Cleaner Outlet Pipe
.
- 3.
Drain the engine cooling system. Refer to: Cooling System Draining, Filling and Bleeding .
- 4.
Drain the electric powertrain cooling system. Refer to: Cooling System Draining, Filling and Bleeding
.
- 5.
Refer to: Transmission Control Module (TCM)
.

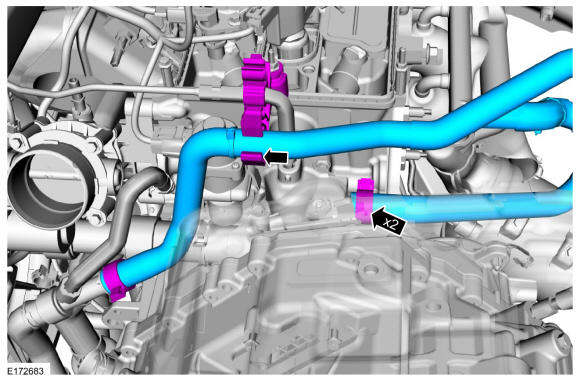

- 6.

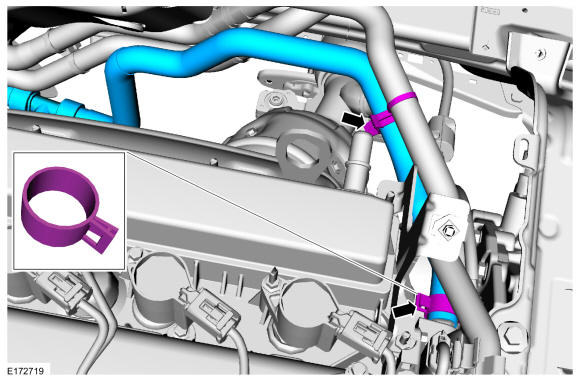

- 7.
 Courtesy of FORD MOTOR COMPANY
|
FHEV vehicles

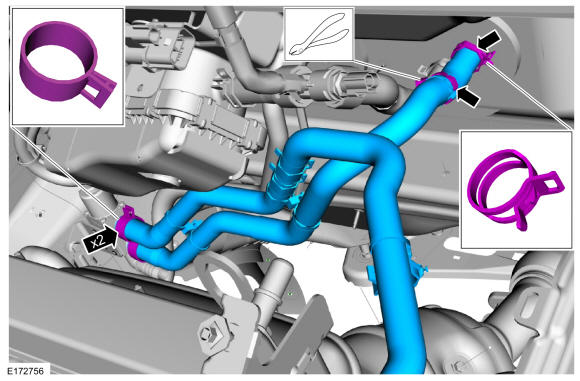

- 8.
Use the General Equipment: Hose Clamp Remover/Installer
 Courtesy of FORD MOTOR COMPANY
|

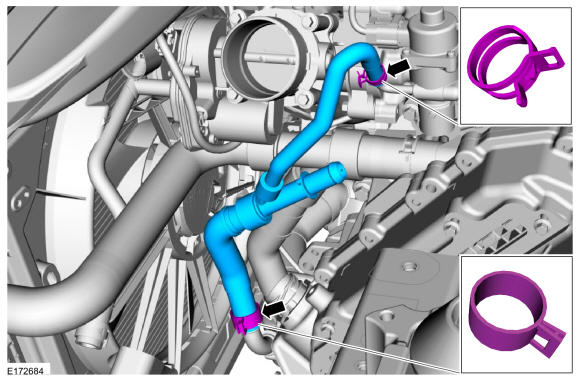

- 9.
Use the General Equipment: Hose Clamp Remover/Installer
 Courtesy of FORD MOTOR COMPANY
|

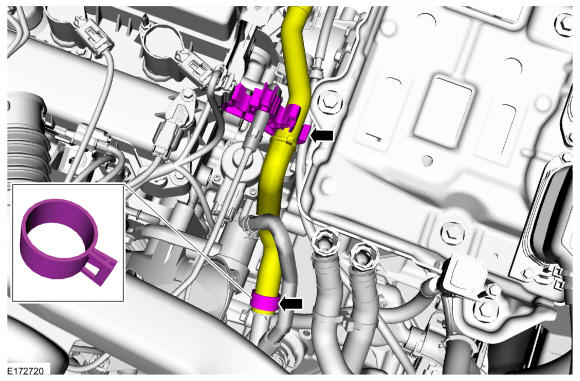

- 10.
Use the General Equipment: Hose Clamp Remover/Installer
 Courtesy of FORD MOTOR COMPANY
|
PHEV vehicles

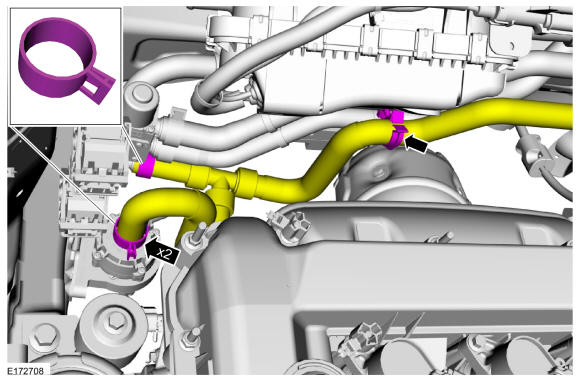

- 11.
Use the General Equipment: Hose Clamp Remover/Installer
 Courtesy of FORD MOTOR COMPANY
|

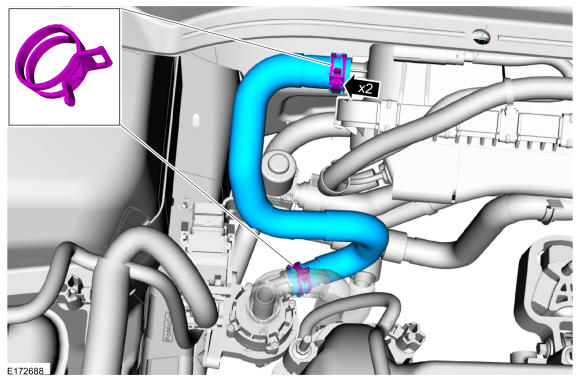

- 12.
Use the General Equipment: Hose Clamp Remover/Installer
 Courtesy of FORD MOTOR COMPANY
|

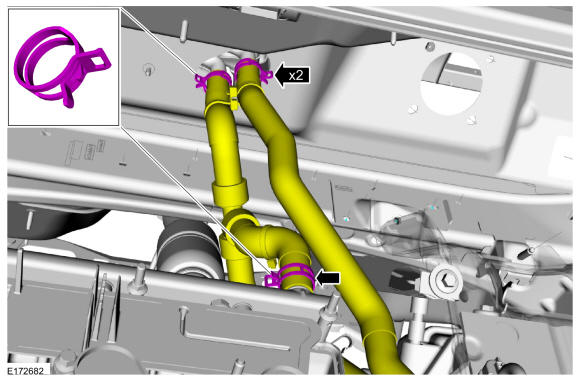

- 13.
Use the General Equipment: Hose Clamp Remover/Installer
 Courtesy of FORD MOTOR COMPANY
|

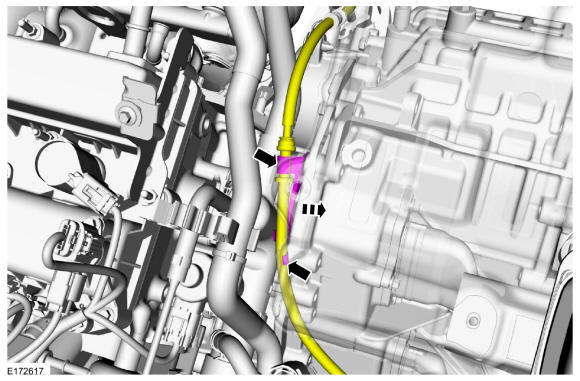

- 14.
Use the General Equipment: Hose Clamp Remover/Installer
 Courtesy of FORD MOTOR COMPANY
|
- 15.
Use the General Equipment: Hose Clamp Remover/Installer
 Courtesy of FORD MOTOR COMPANY
|
- 16.
Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY
|
