Degas Bottle: Removal

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Engine Cooling System Health and Safety Precautions .

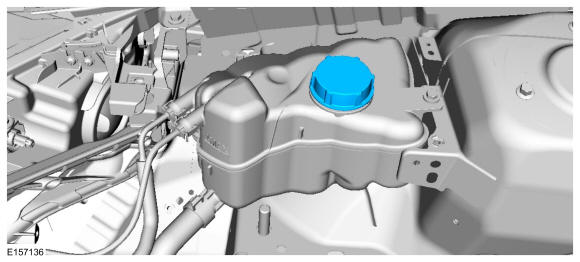

  1. 2.

GFD71102Courtesy of FORD MOTOR COMPANY

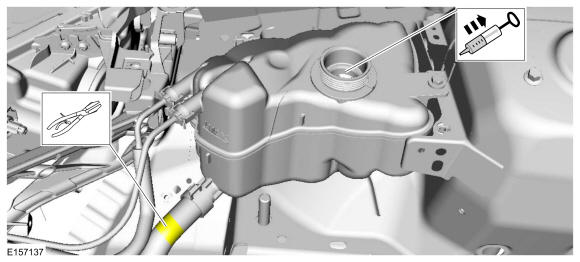

  1. 3.

    Use the General Equipment: Hose Clamp(s)
GFD71103Courtesy of FORD MOTOR COMPANY

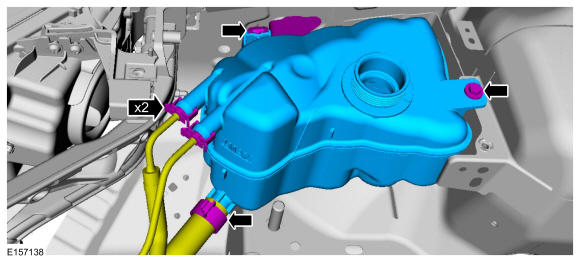

  1. 4.

    Torque: 80 lb.in (9 Nm)
GFD71104Courtesy of FORD MOTOR COMPANY
