Intake Manifold: Removal

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.
- Refer to: Fuel System Pressure Release .
- Refer to: Battery Disconnect and Connect .

2.

Remove the following items:
- Refer to: Air Cleaner .

3.

Torque: 44 lb.in (5 Nm)

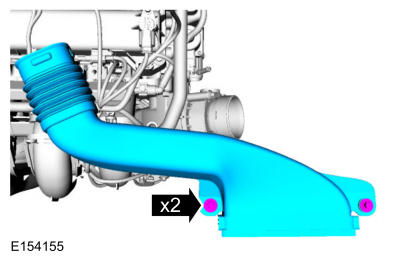

GFD70839

Courtesy of FORD MOTOR COMPANY

4.

Refer to: Throttle Body .

5.

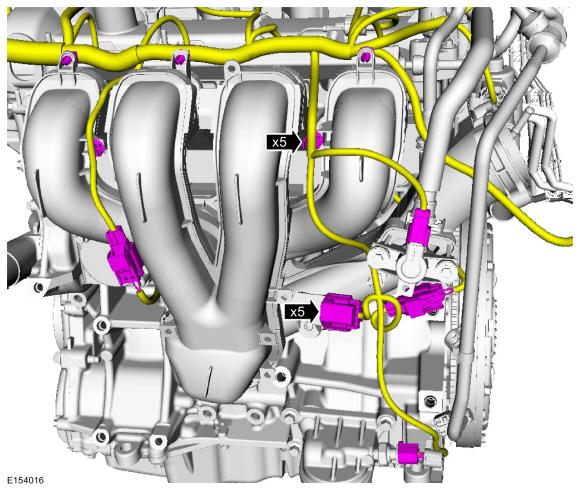

GFD70840

Courtesy of FORD MOTOR COMPANY

6.

Refer to: Quick Release Coupling .
Torque: 89 lb.in (10 Nm)

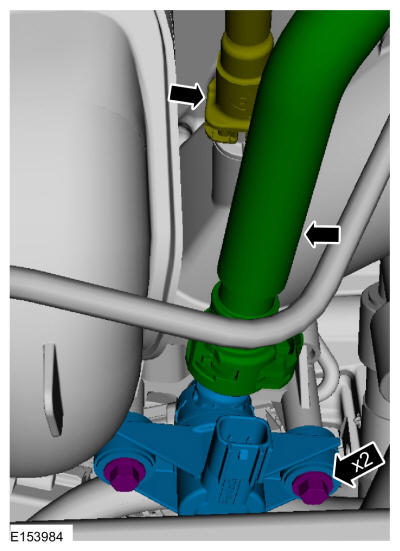

GFD70841

Courtesy of FORD MOTOR COMPANY

7.

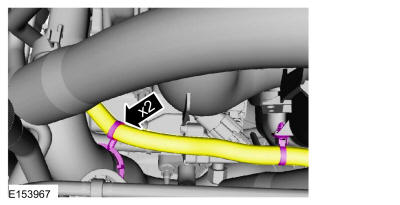

GFD70842

Courtesy of FORD MOTOR COMPANY

8.

Refer to: Jacking and Lifting - Overview .

9.

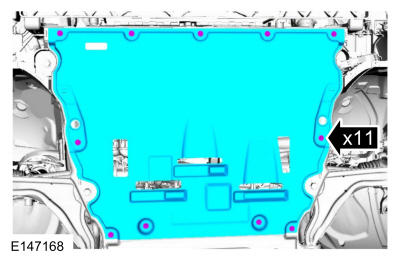

GFD70770

Courtesy of FORD MOTOR COMPANY

10.

Torque:
Stage 1: 93 lb.in (10.5 Nm)

Stage 2: 90 °

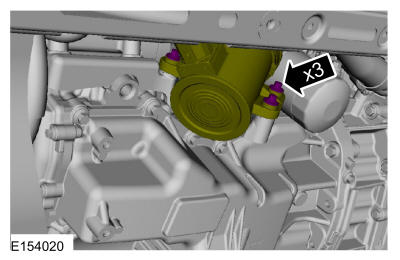

GFD70843

Courtesy of FORD MOTOR COMPANY

11.

Torque: 159 lb.in (18 Nm)

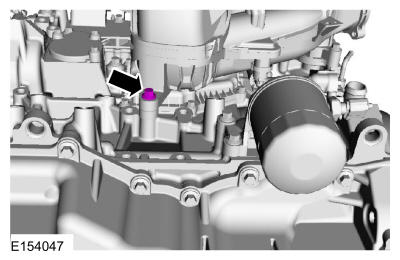

GFD70844

Courtesy of FORD MOTOR COMPANY

12.

Refer to: Fuel Rail .

13.

NOTE: Visually inspect the intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be re-used.

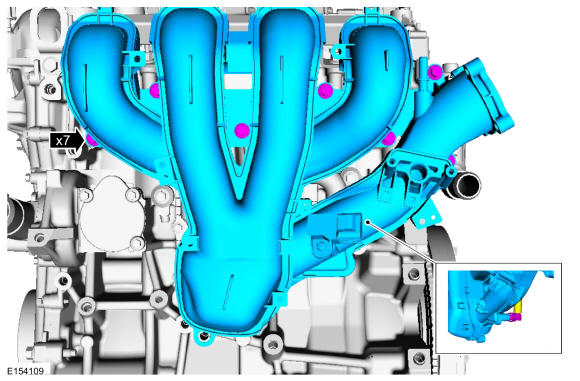

GFD70845

Courtesy of FORD MOTOR COMPANY
