2013
>>
Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Vehicle Emergency Messaging System
>>
With Blind Spot Information System (BLIS)®
With Blind Spot Information System (BLIS)®
Fig 1: Vehicle Emergency Messaging System Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

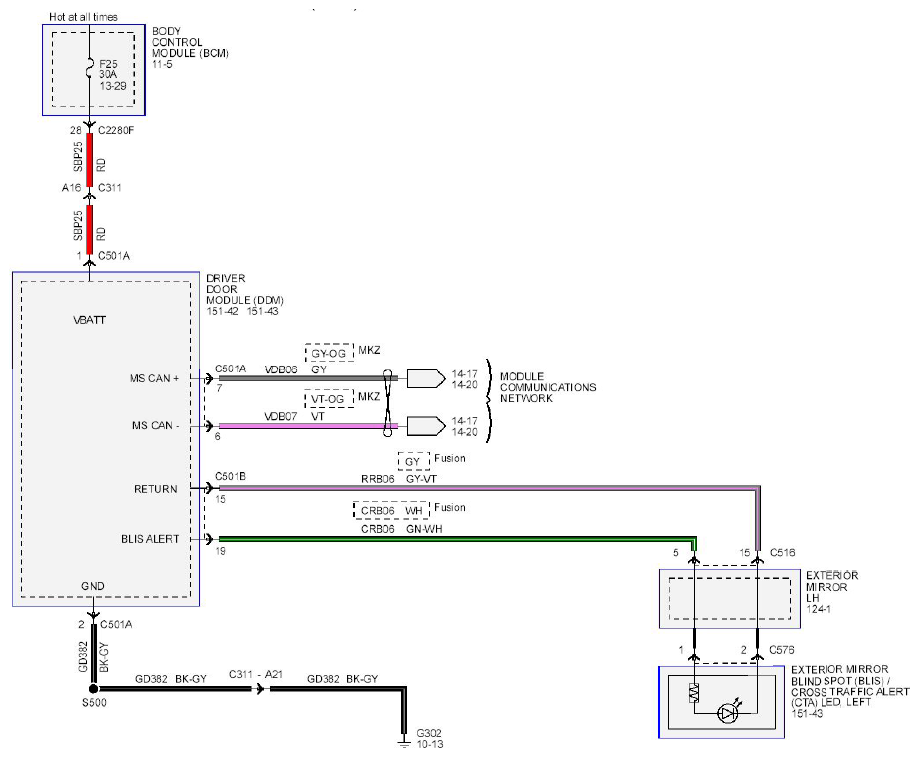

Fig 2: Vehicle Emergency Messaging System Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

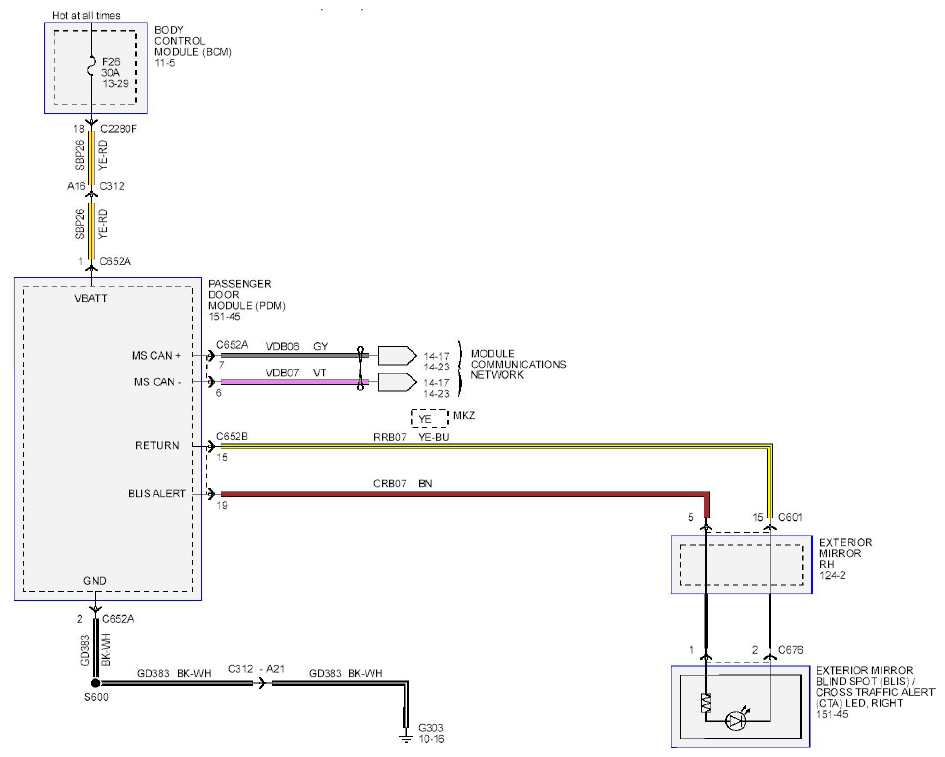

Fig 3: Vehicle Emergency Messaging System Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

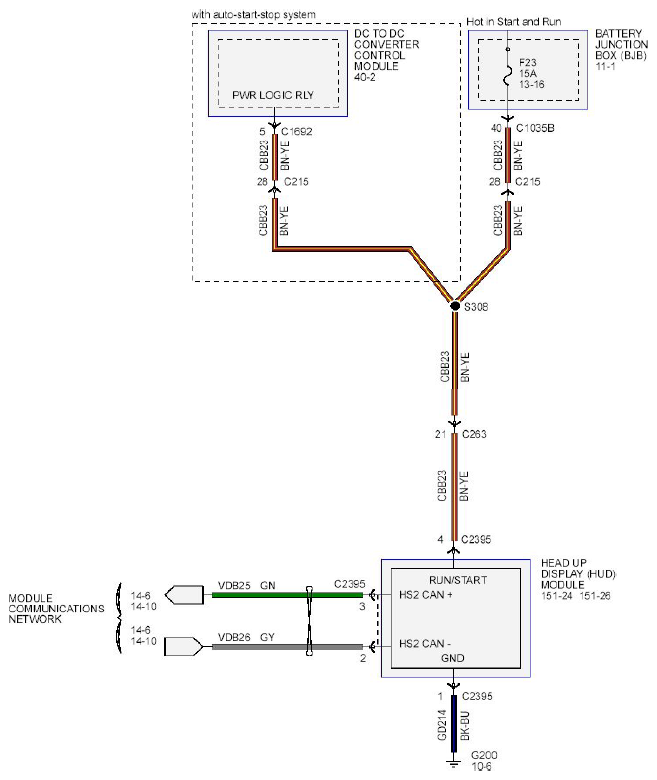

Fig 4: Vehicle Emergency Messaging System Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
