Ford
>>
2013
>>
Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Vehicle Dynamic Systems
Vehicle Dynamic Systems

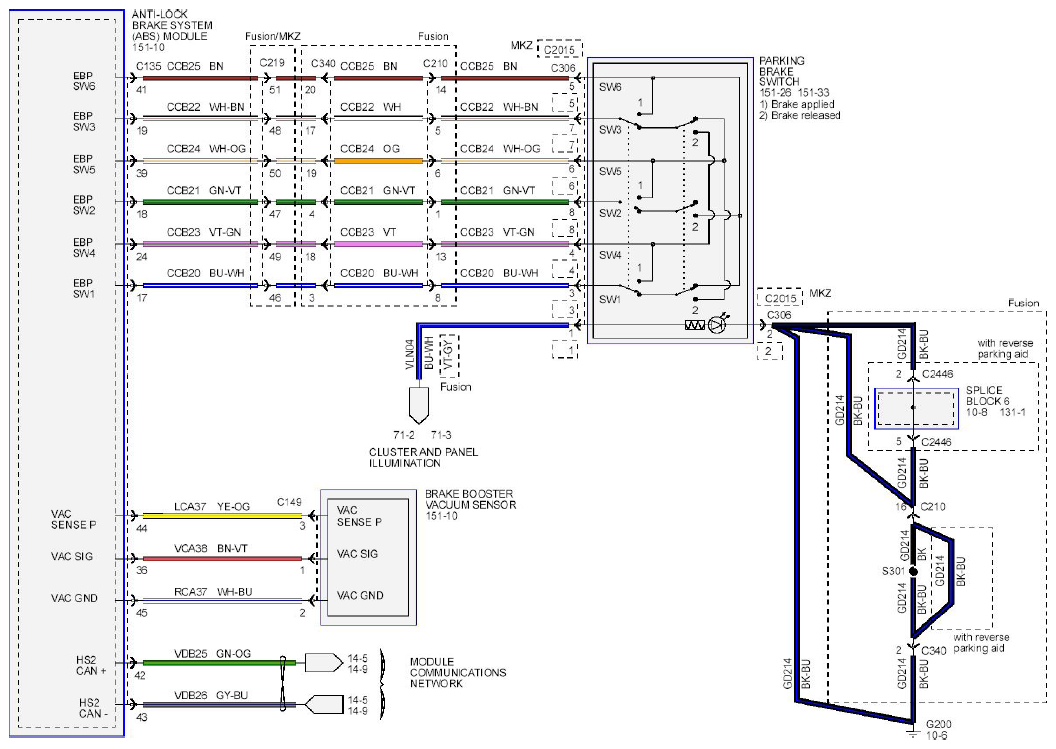

Fig 1: Vehicle Dynamic Systems Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

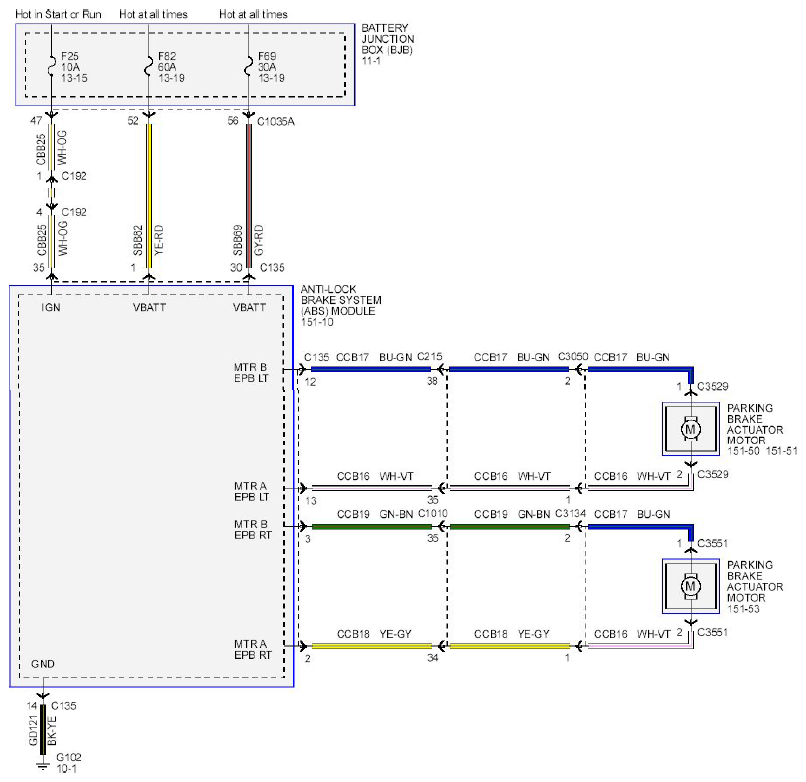

Fig 2: Vehicle Dynamic Systems Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

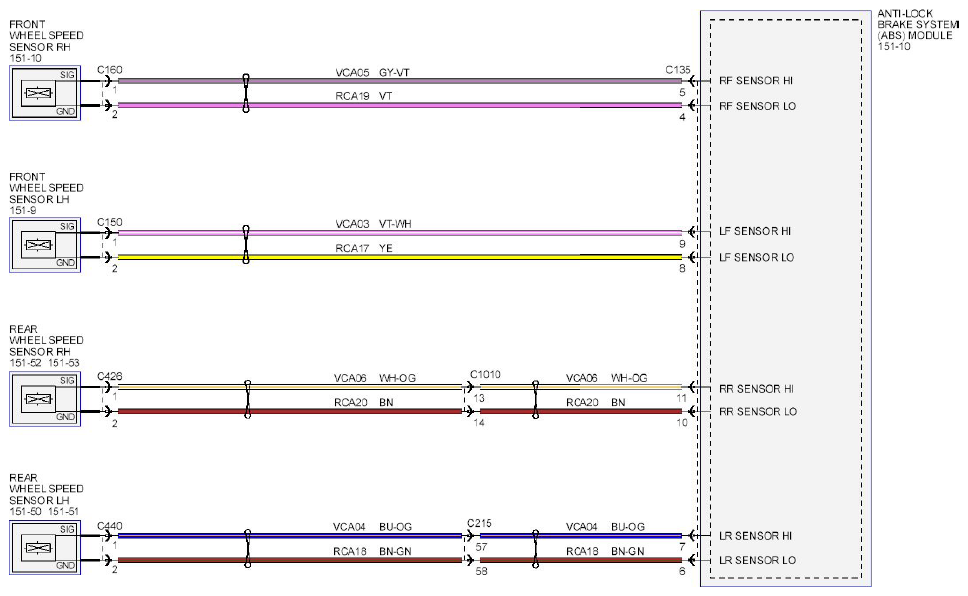

Fig 3: Vehicle Dynamic Systems Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
