Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Transmission Controls
>>
Notes
Transmission Controls: Notes

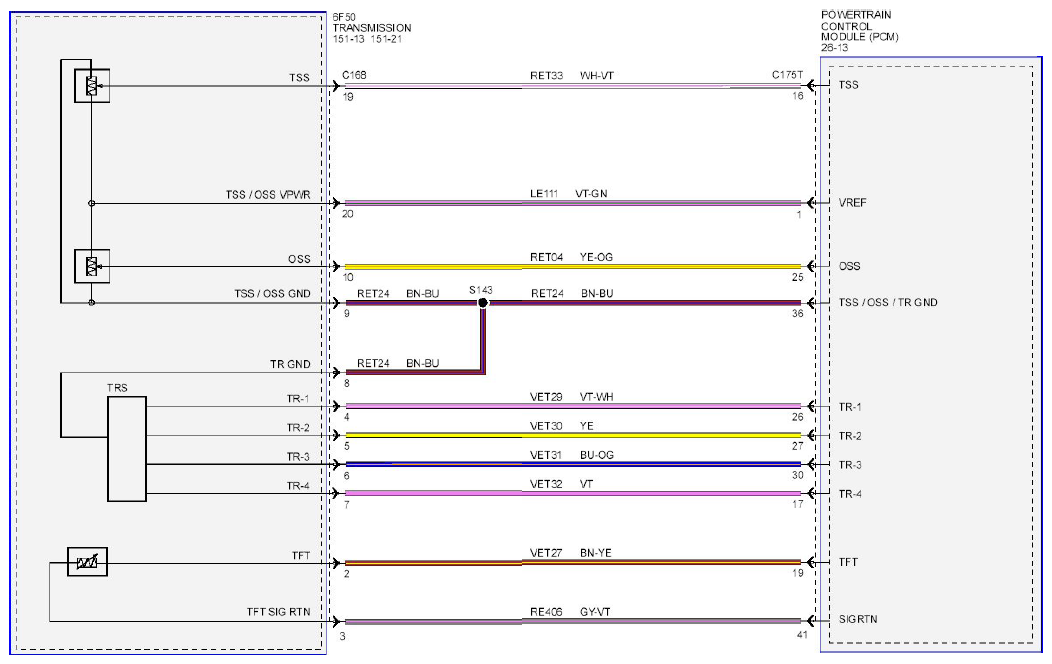

Fig 1: Transmission Controls Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

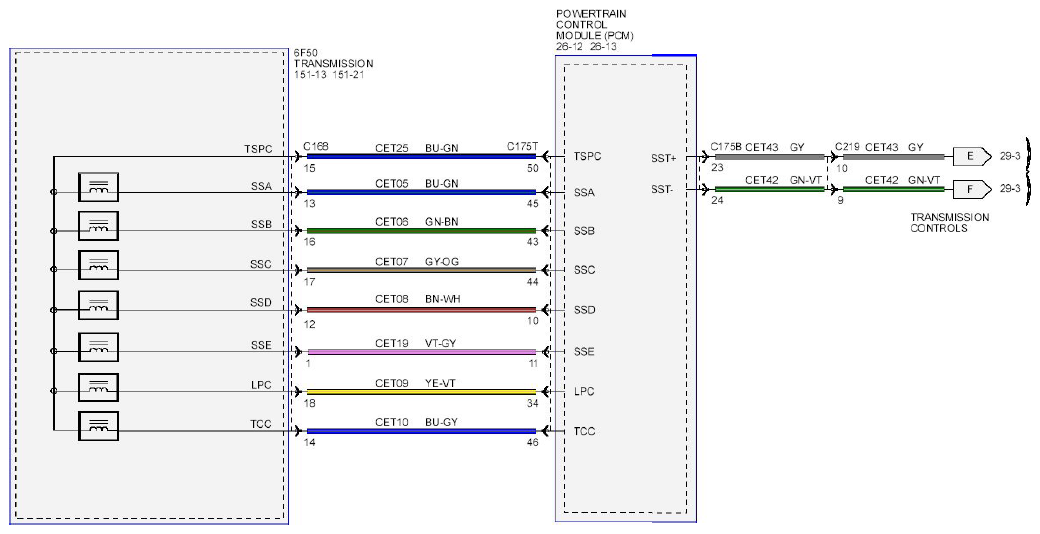

Fig 2: Transmission Controls Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
