Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Tire Pressure Monitor System
Tire Pressure Monitor System

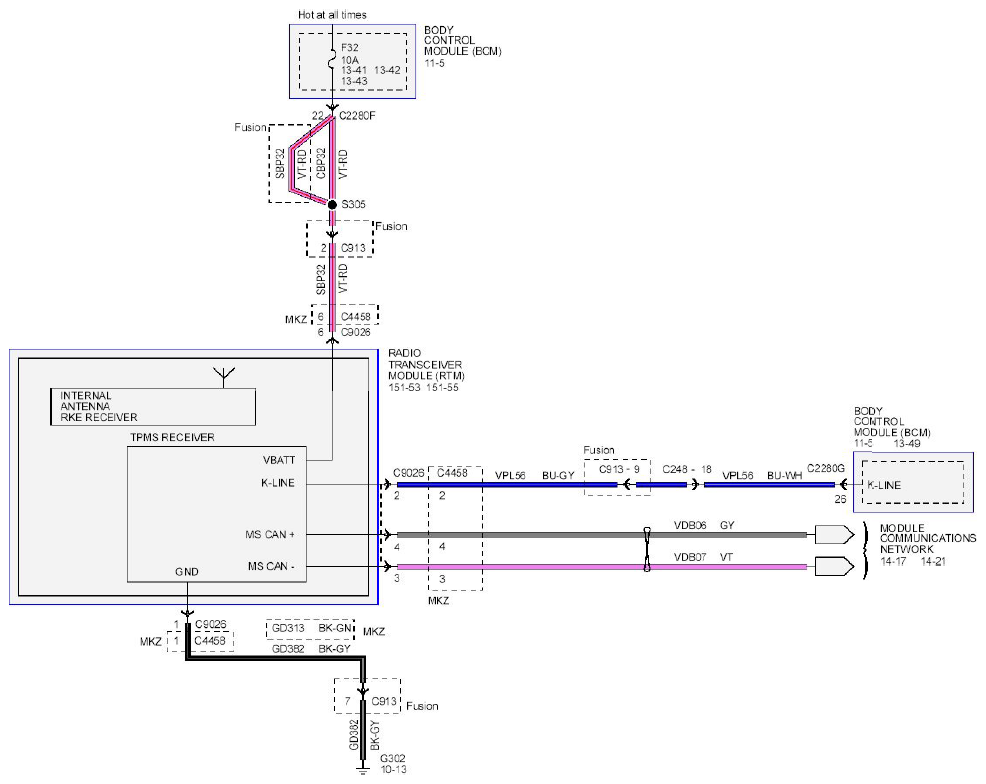

Fig 1: Tire Pressure Monitor System Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
