Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Starting System
>>
With Auto-Start-Stop System
With Auto-Start-Stop System

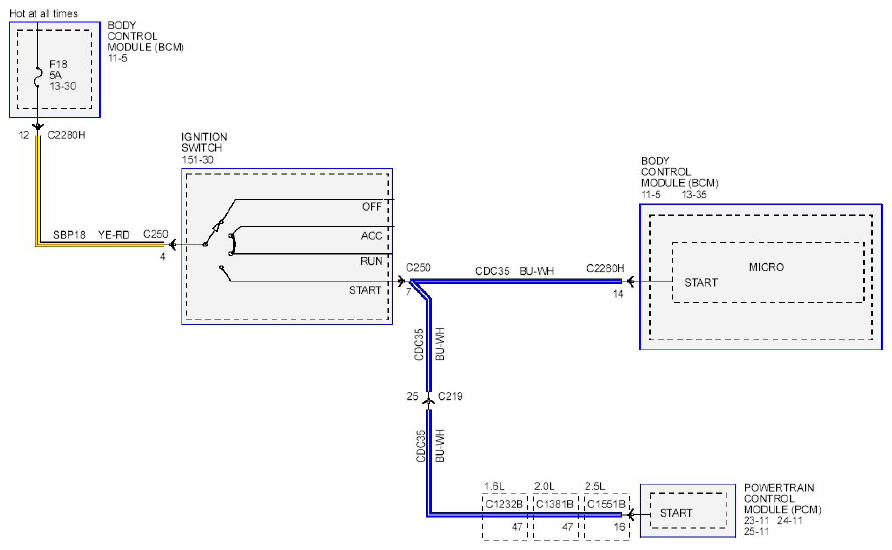

Fig 1: Starting System Wiring Diagram - With Auto-Start-Stop System (1 Of 2)
Courtesy of FORD MOTOR CO.

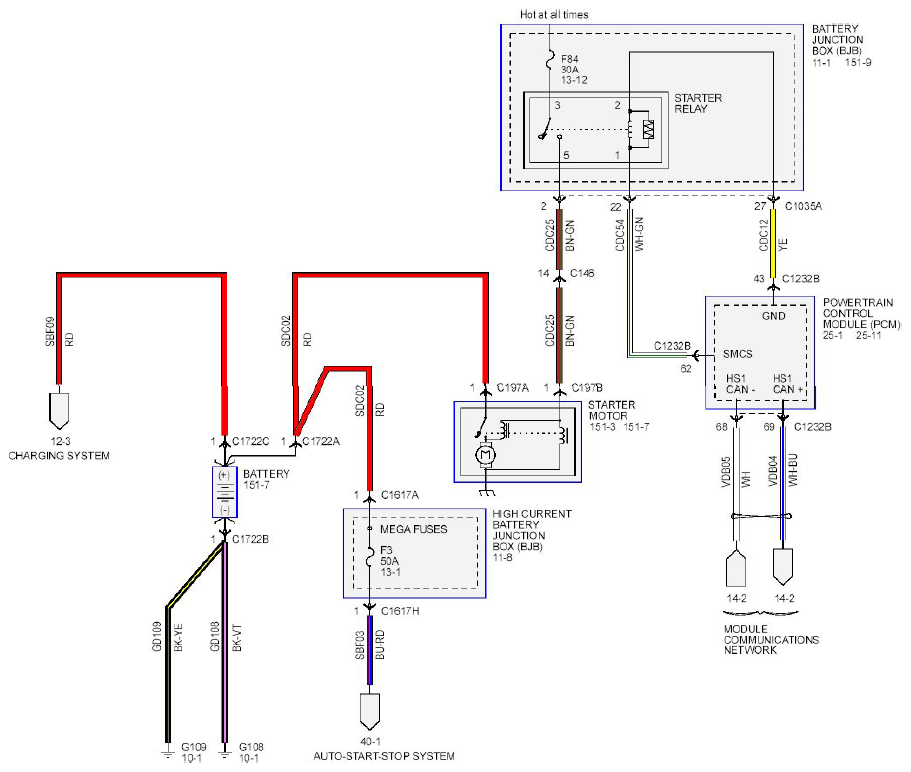

Fig 2: Starting System Wiring Diagram - With Auto-Start-Stop System (2 Of 2)
