Starting System: 2.0L/2.5L/3.7L

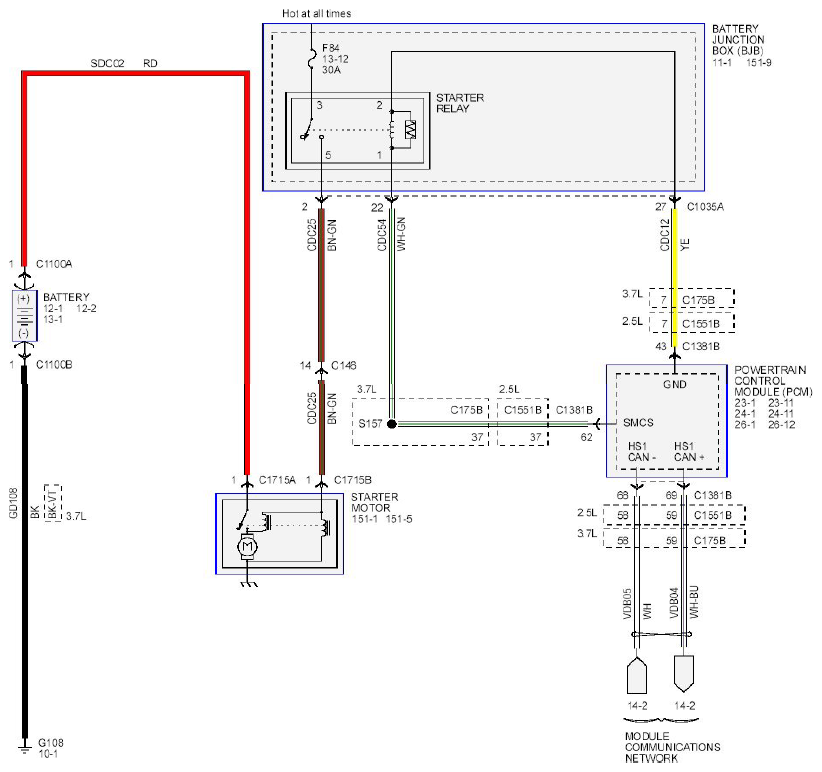

Fig 1: Starting System Wiring Diagram - 2.0L/2.5L/3.7L (1 Of 2)
G08745254Courtesy of FORD MOTOR CO.

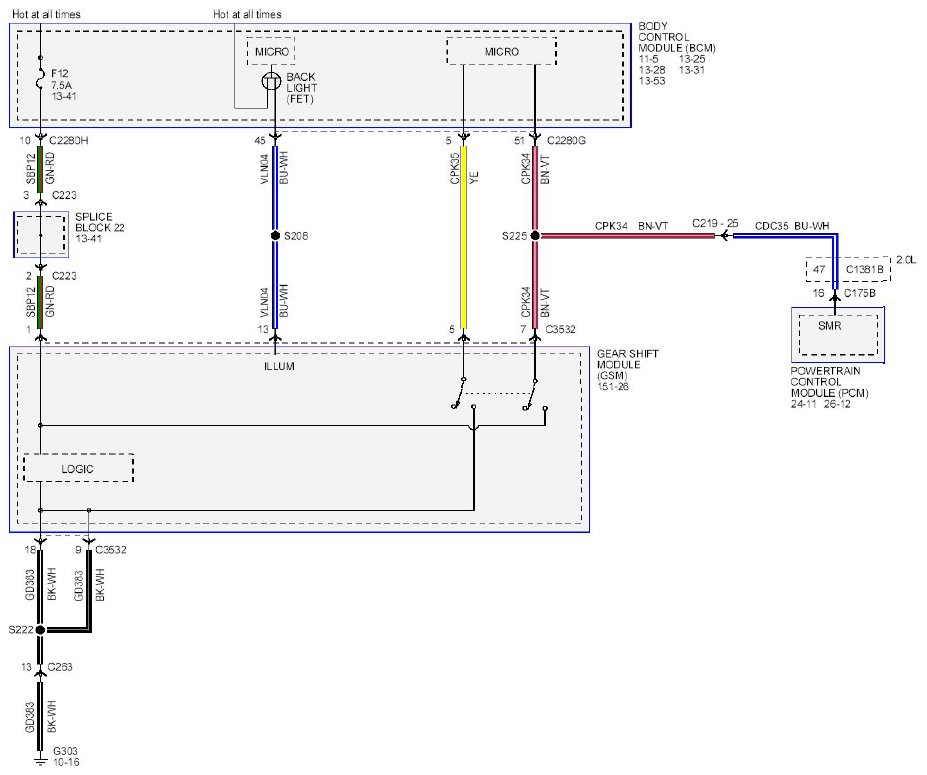

Fig 2: Starting System Wiring Diagram - 2.0L/2.5L/3.7L (2 Of 2)
G08745255Courtesy of FORD MOTOR CO.
