Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Starting System
>>
2.0L Fusion
2.0L Fusion

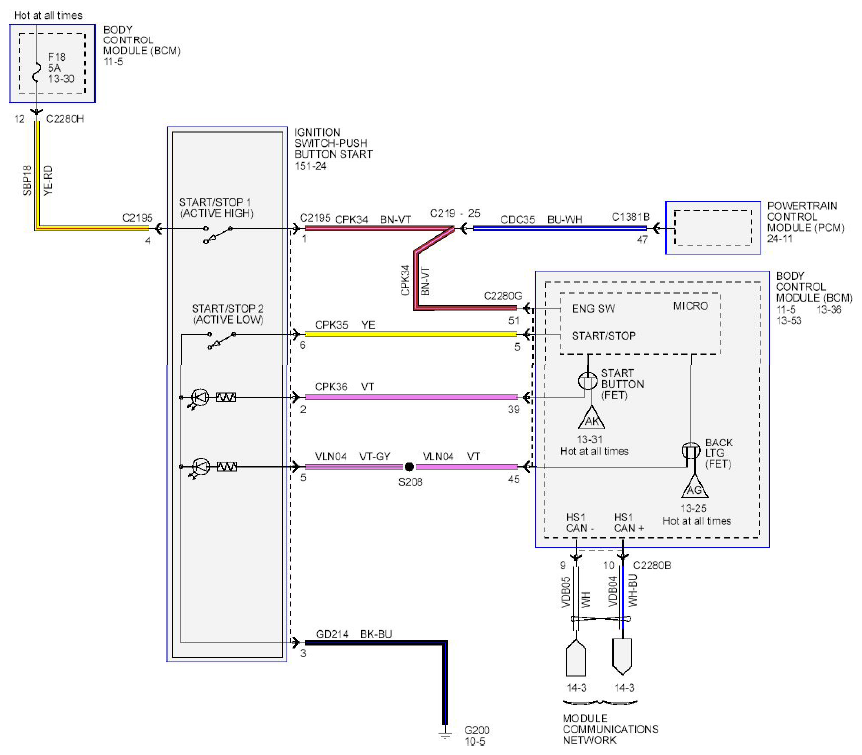

Fig 1: Starting System Wiring Diagram - 2.0L Fusion
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
