Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Starting System
>>
1.6L
Starting System: 1.6L

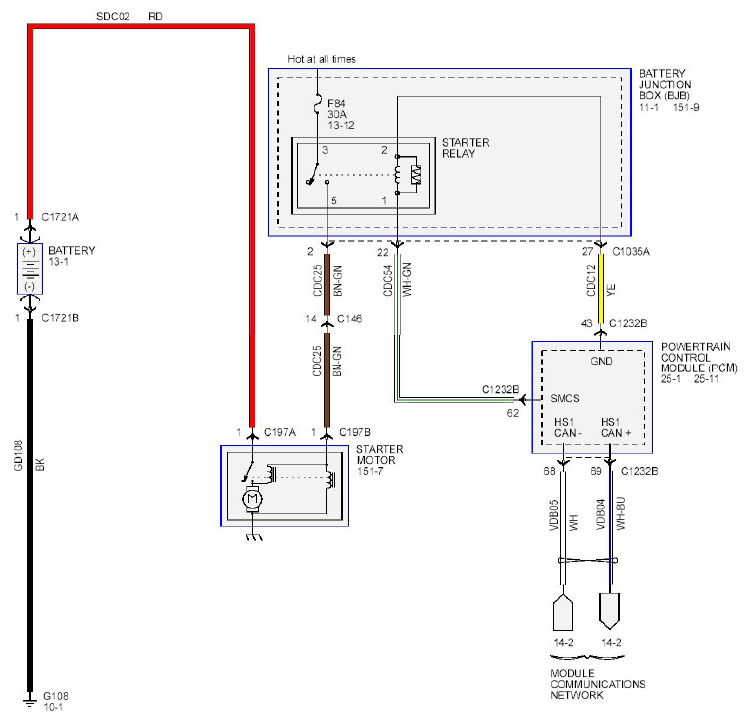

Fig 1: Starting System Wiring Diagram - 1.6L (1 Of 2)
Courtesy of FORD MOTOR CO.
