Roof Opening Panel: Notes

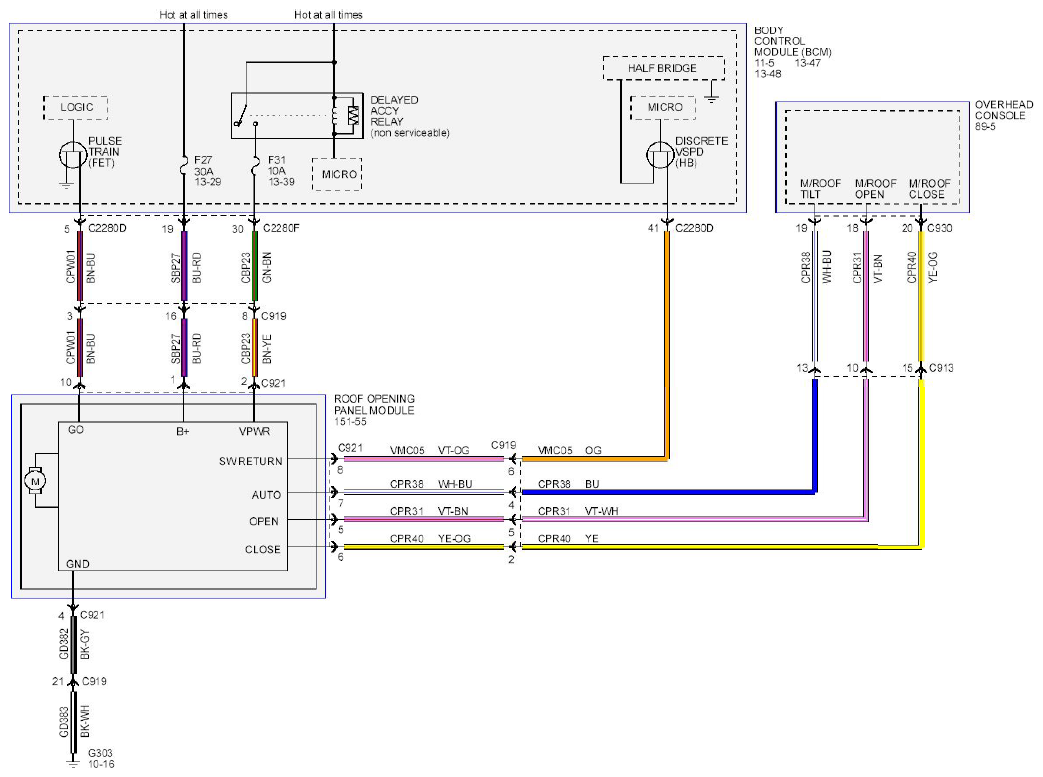

Fig 1: Roof Opening Panel - Wiring Diagram

G08745416

Courtesy of FORD MOTOR CO.
