With Keyless Entry With Push Button Start

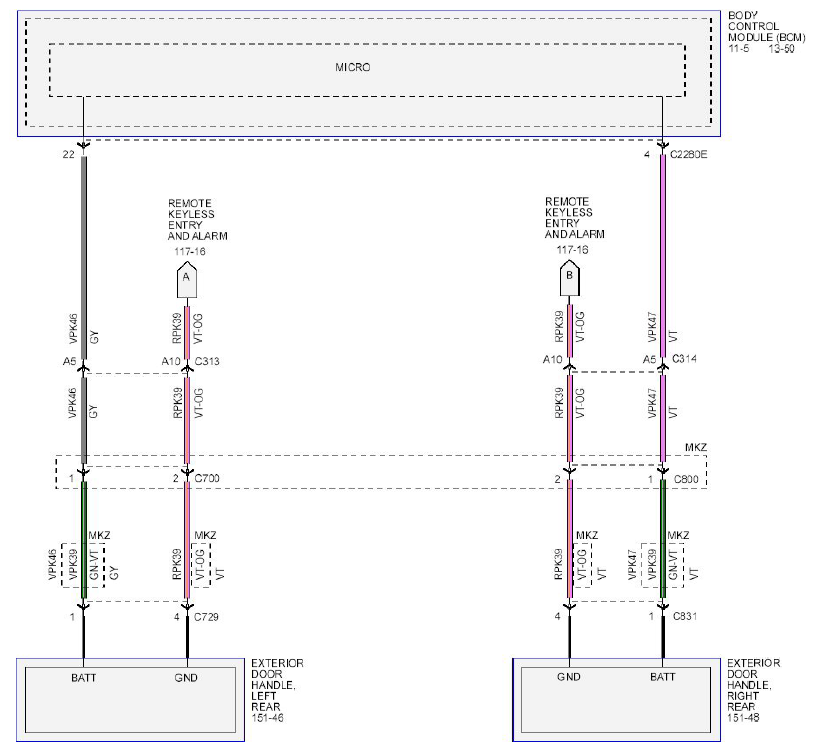

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - With Keyless Entry With Push Button Start (1 Of 3)

Courtesy of FORD MOTOR CO.

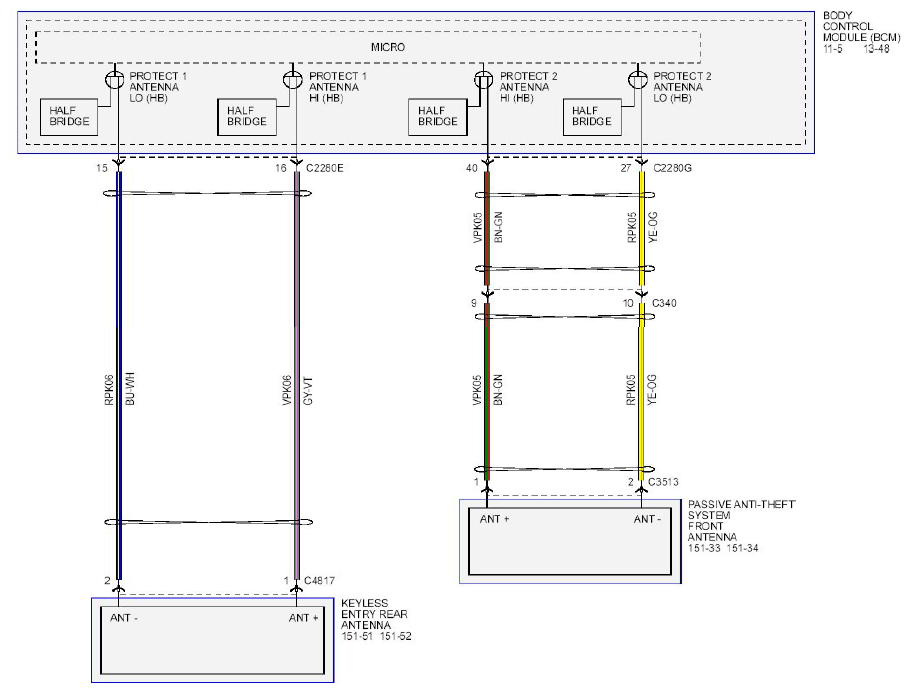

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram - With Keyless Entry With Push Button Start (2 Of 3)

Courtesy of FORD MOTOR CO.

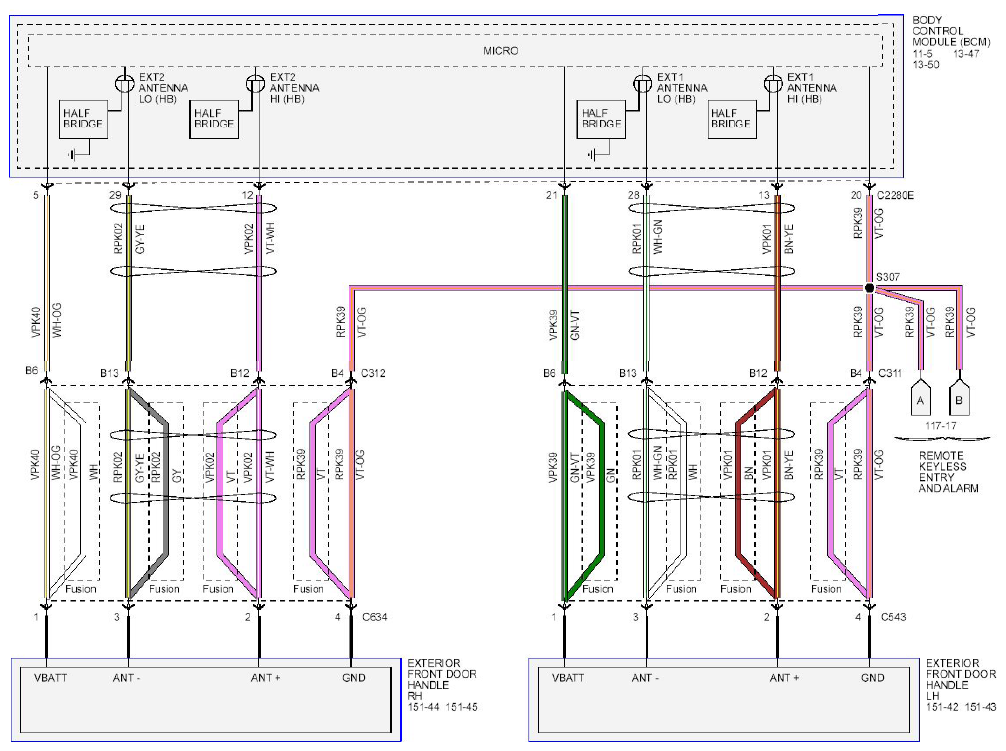

Fig 3: Remote Keyless Entry And Alarm Wiring Diagram - With Keyless Entry With Push Button Start (3 Of 3)

Courtesy of FORD MOTOR CO.
