Remote Keyless Entry and Alarm
>>
W/O Memory
W/O Memory

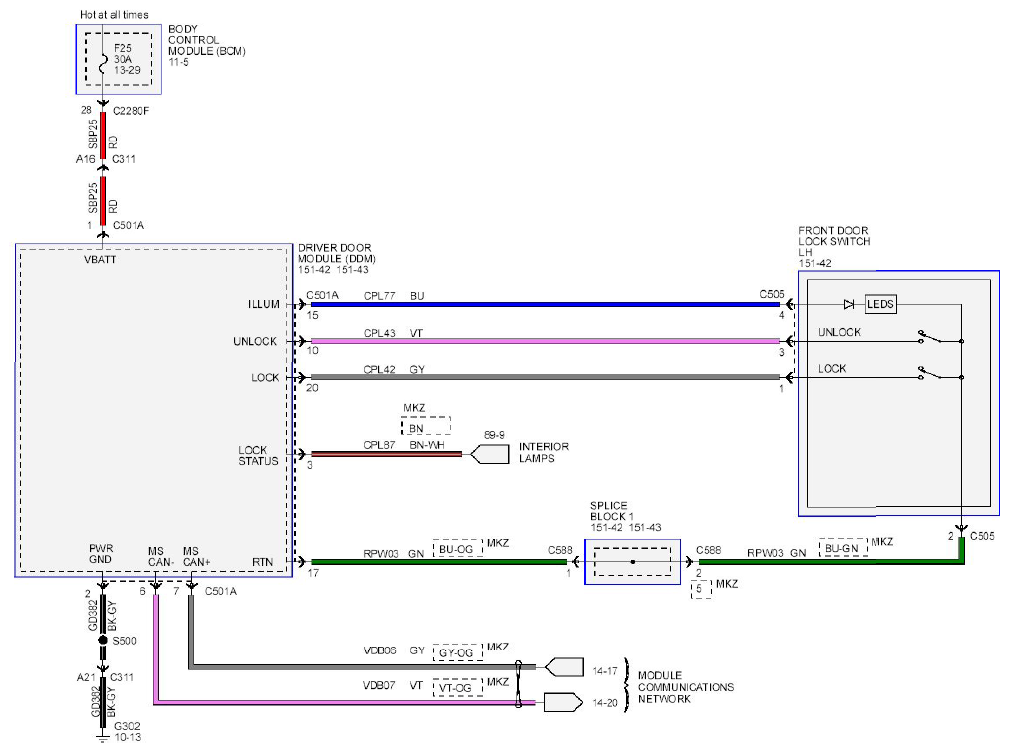

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - W/O Memory
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
