Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Remote Keyless Entry and Alarm
>>
Notes
Remote Keyless Entry and Alarm: Notes

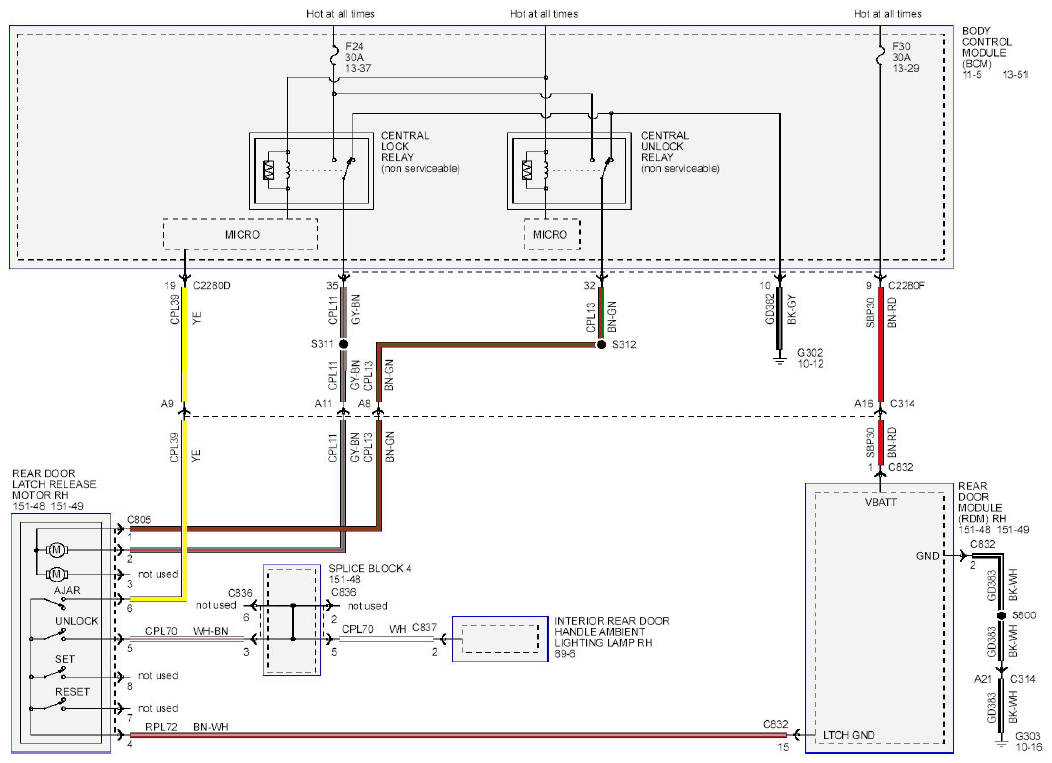

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram - (1 Of 1)
Courtesy of FORD MOTOR CO.

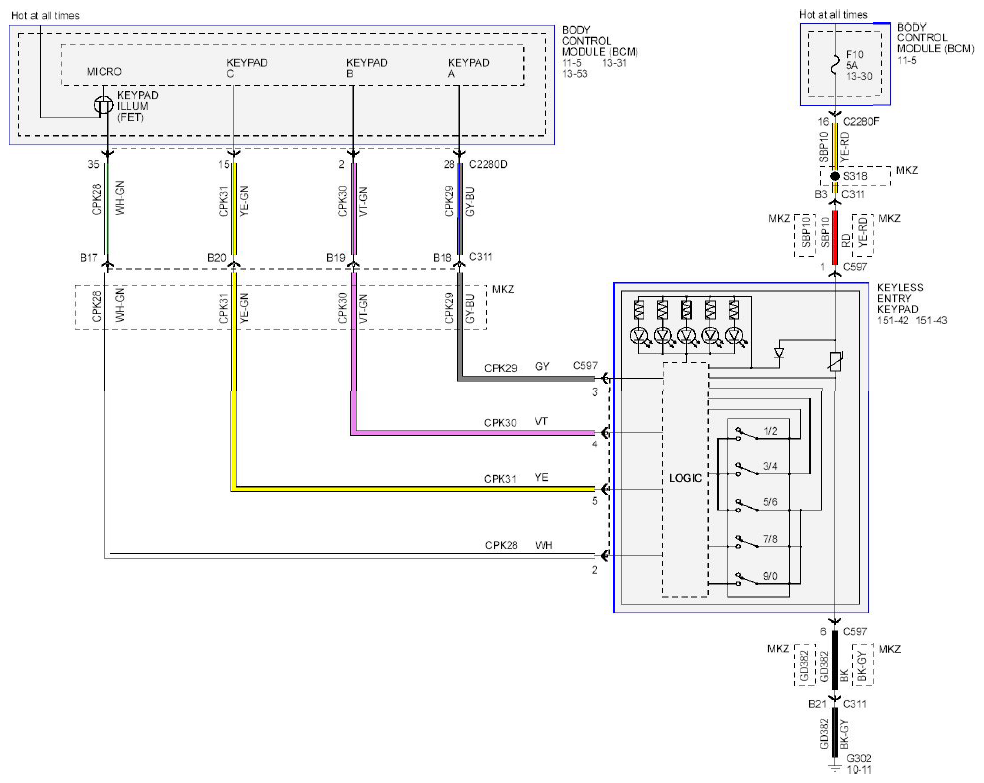

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram - (2 Of 2)
Courtesy of FORD MOTOR CO.

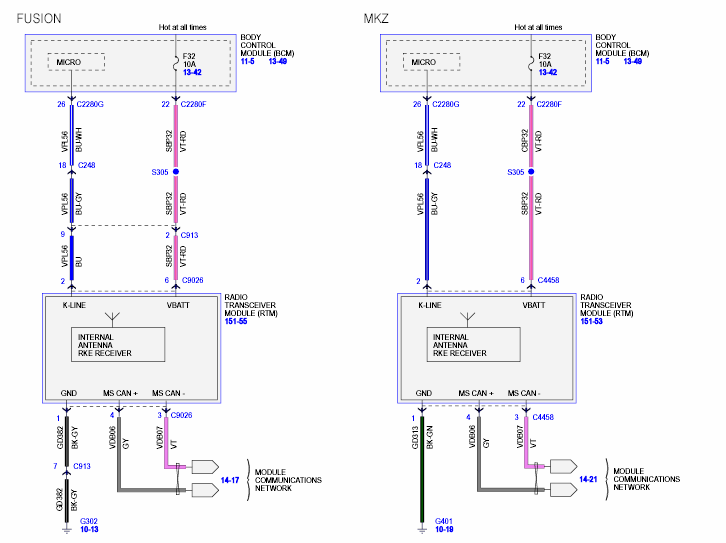

Fig 3: Remote Keyless Entry And Alarm Wiring Diagram - (3 Of 3)
Courtesy of FORD MOTOR CO.

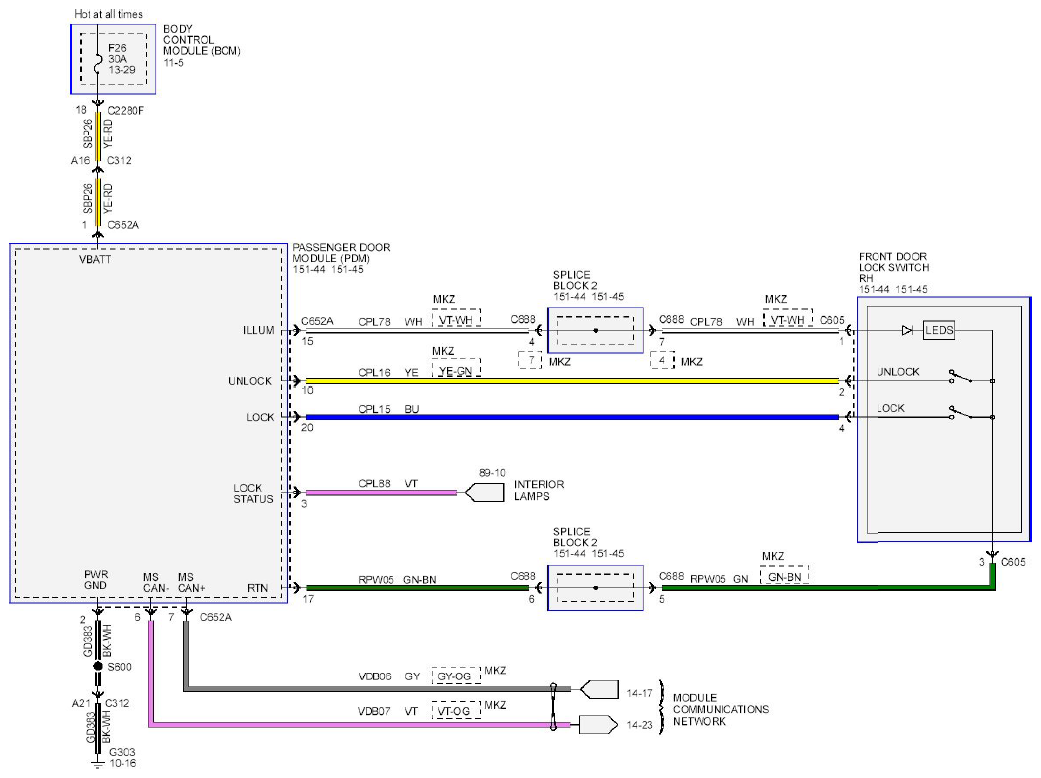

Fig 4: Remote Keyless Entry And Alarm Wiring Diagram - (4 Of 4)
Courtesy of FORD MOTOR CO.

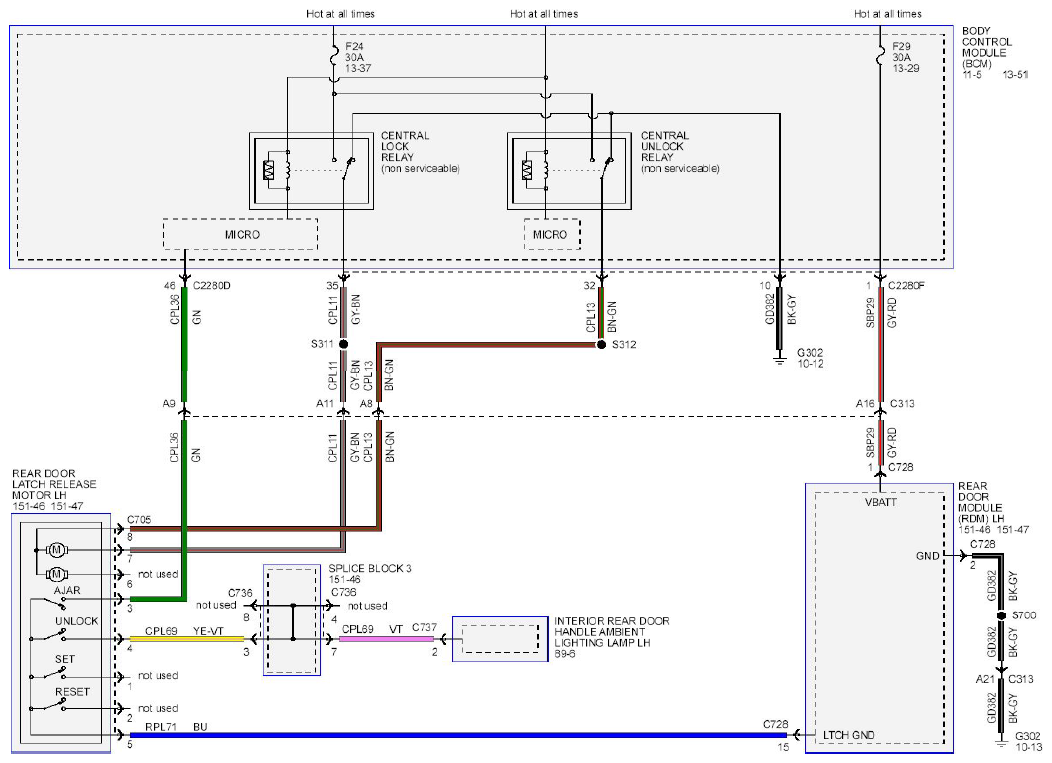

Fig 5: Remote Keyless Entry And Alarm Wiring Diagram - (5 Of 5)
Courtesy of FORD MOTOR CO.
