Power Windows: MKZ

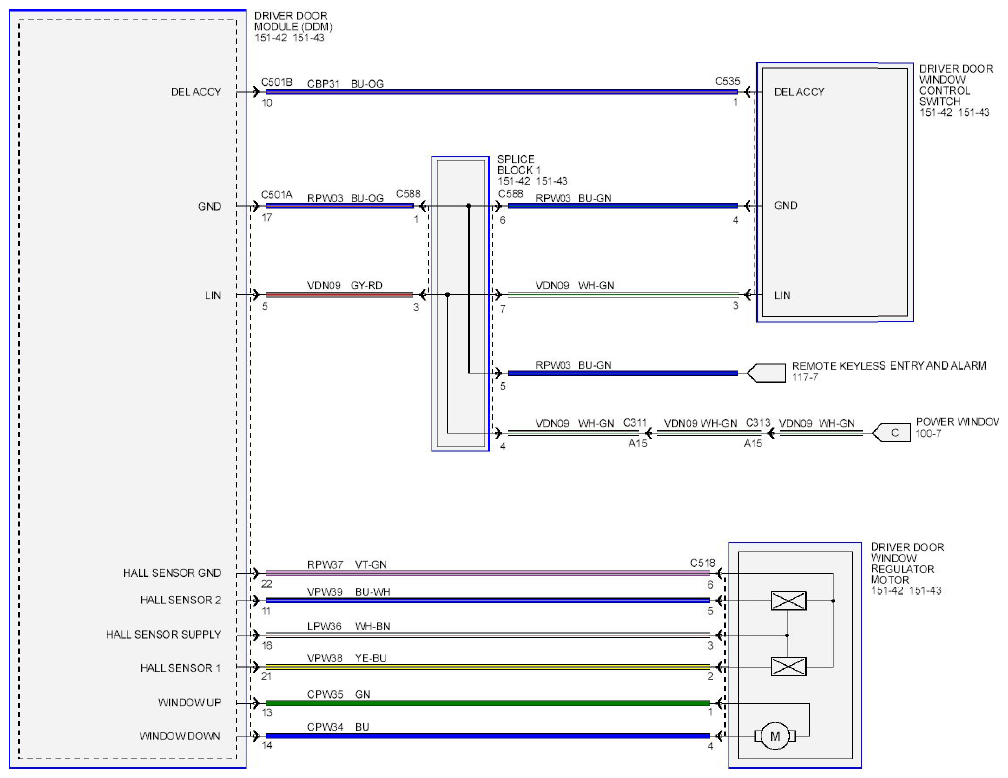

Fig 1: MKZ - Wiring Diagram (1 Of 4)
G08745412Courtesy of FORD MOTOR CO.

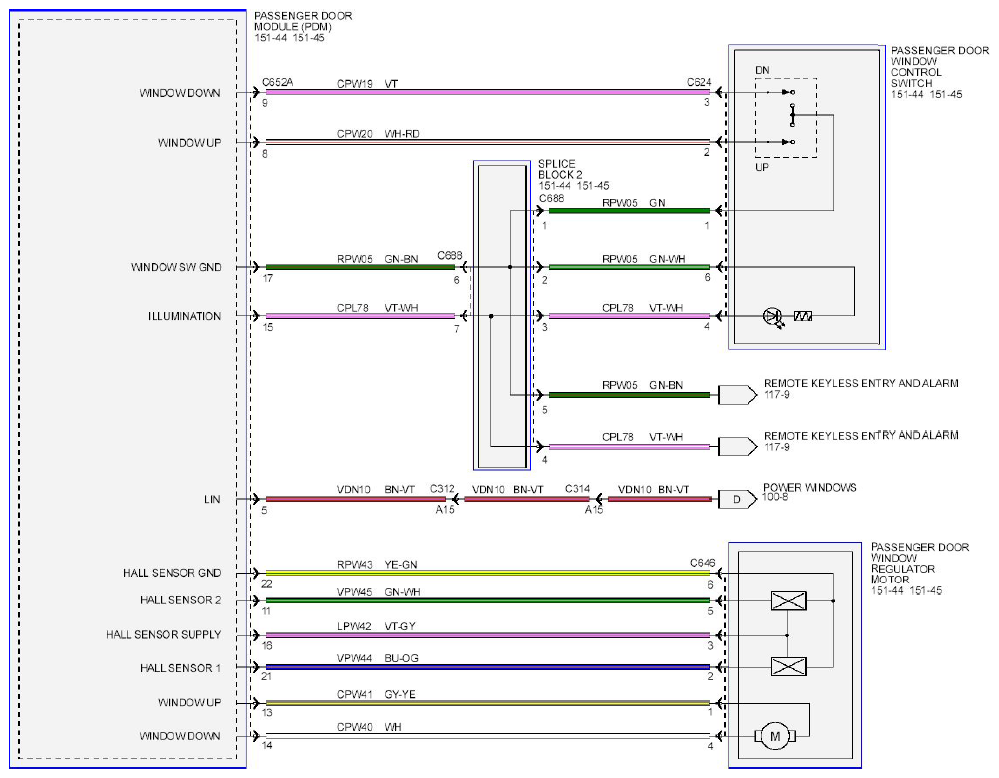

Fig 2: MKZ - Wiring Diagram (2 Of 4)
G08745413Courtesy of FORD MOTOR CO.

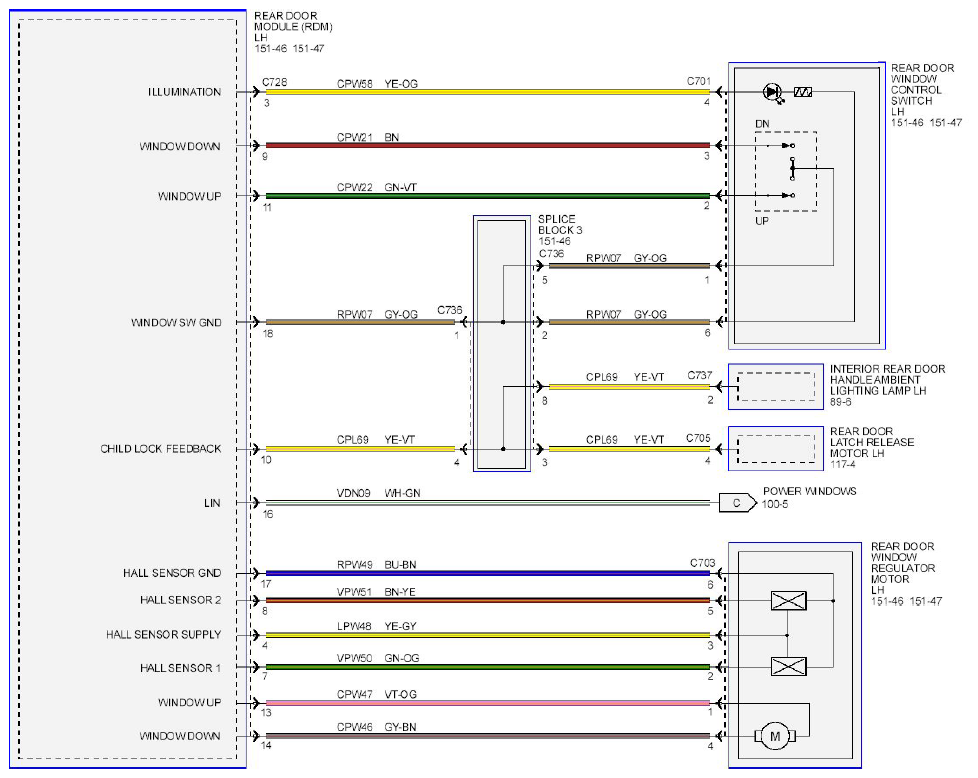

Fig 3: MKZ - Wiring Diagram (3 Of 4)
G08745414Courtesy of FORD MOTOR CO.

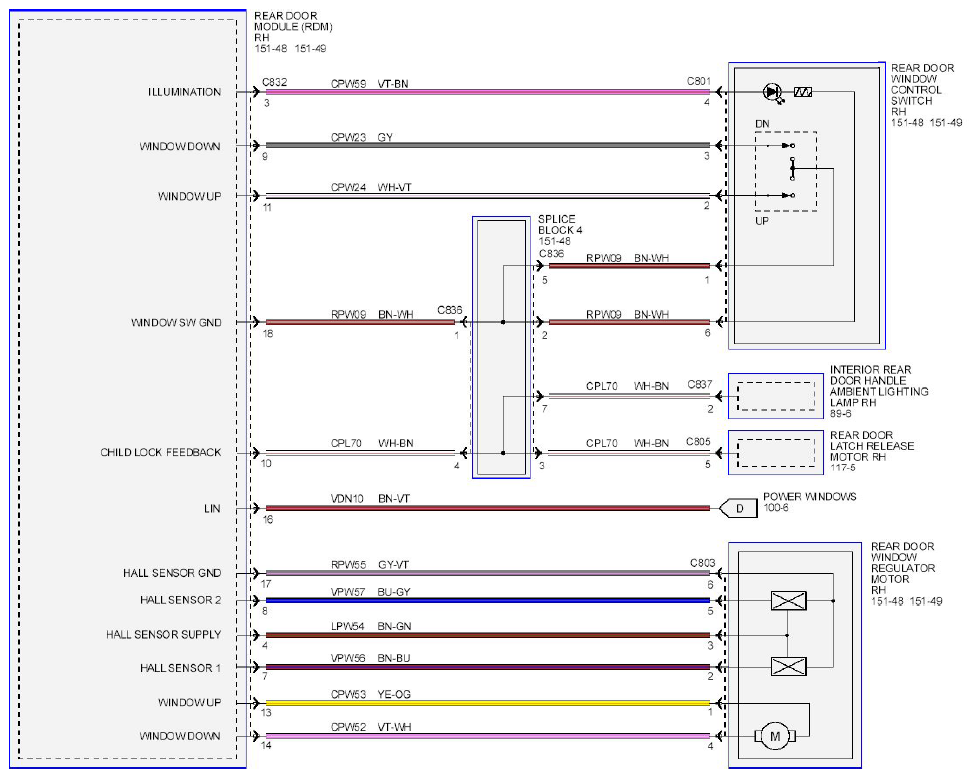

Fig 4: MKZ - Wiring Diagram (4 Of 4)
G08745415Courtesy of FORD MOTOR CO.
