Power Windows: Fusion

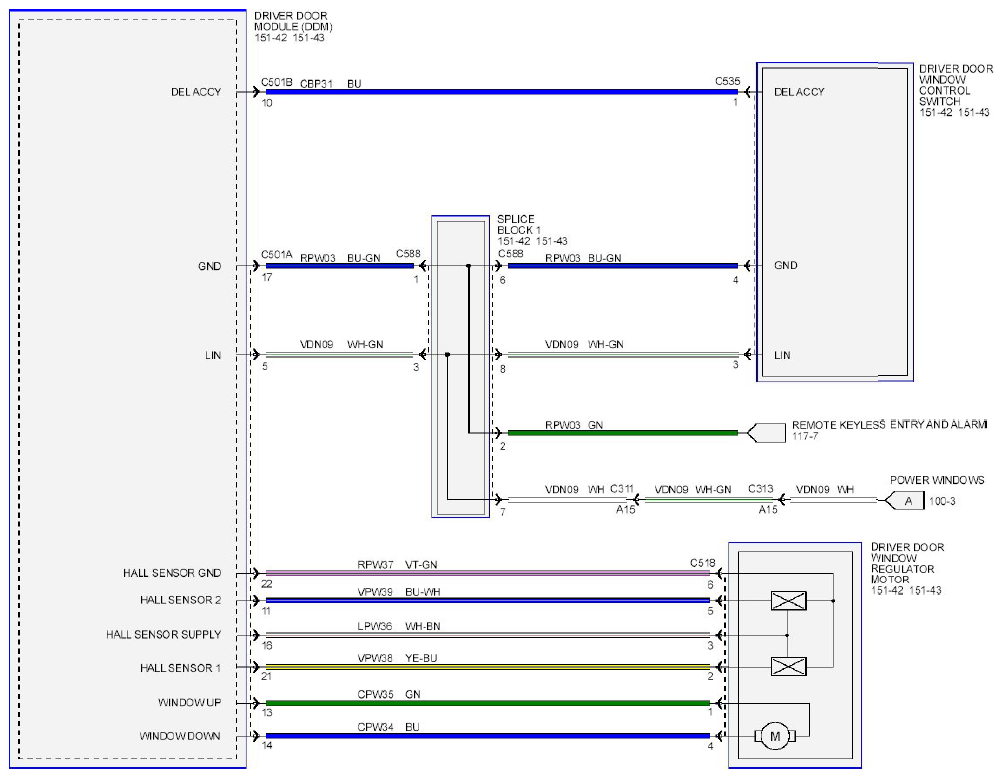

Fig 1: Fusion - Wiring Diagram (1 Of 4)
G08745408Courtesy of FORD MOTOR CO.

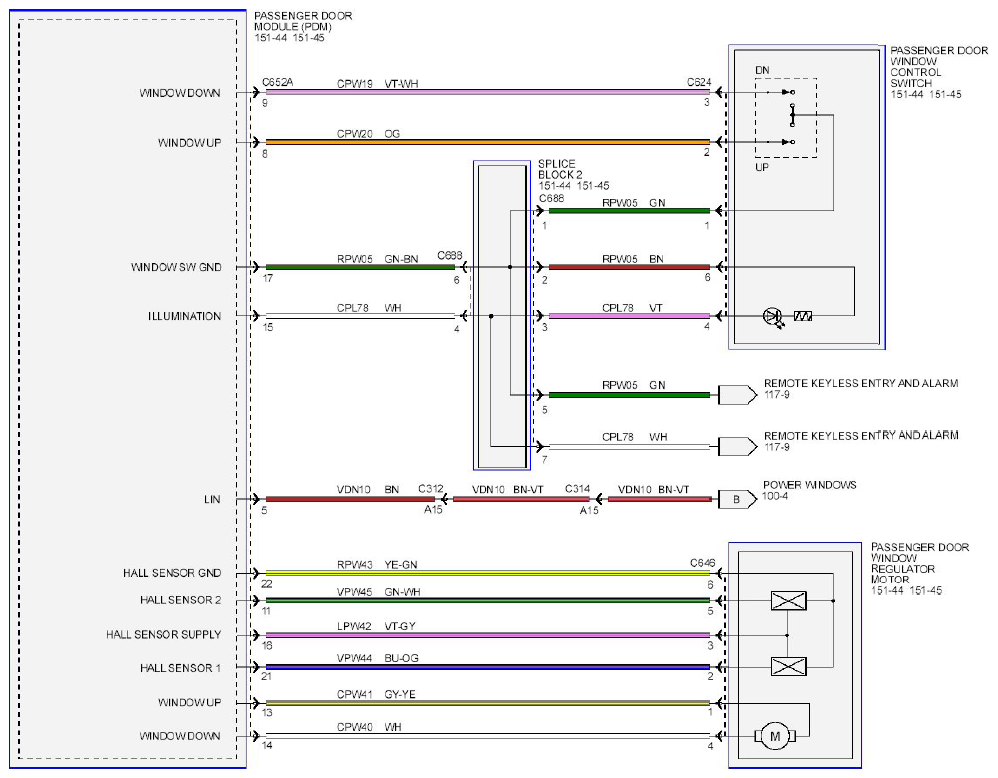

Fig 2: Fusion - Wiring Diagram (2 Of 4)
G08745409Courtesy of FORD MOTOR CO.

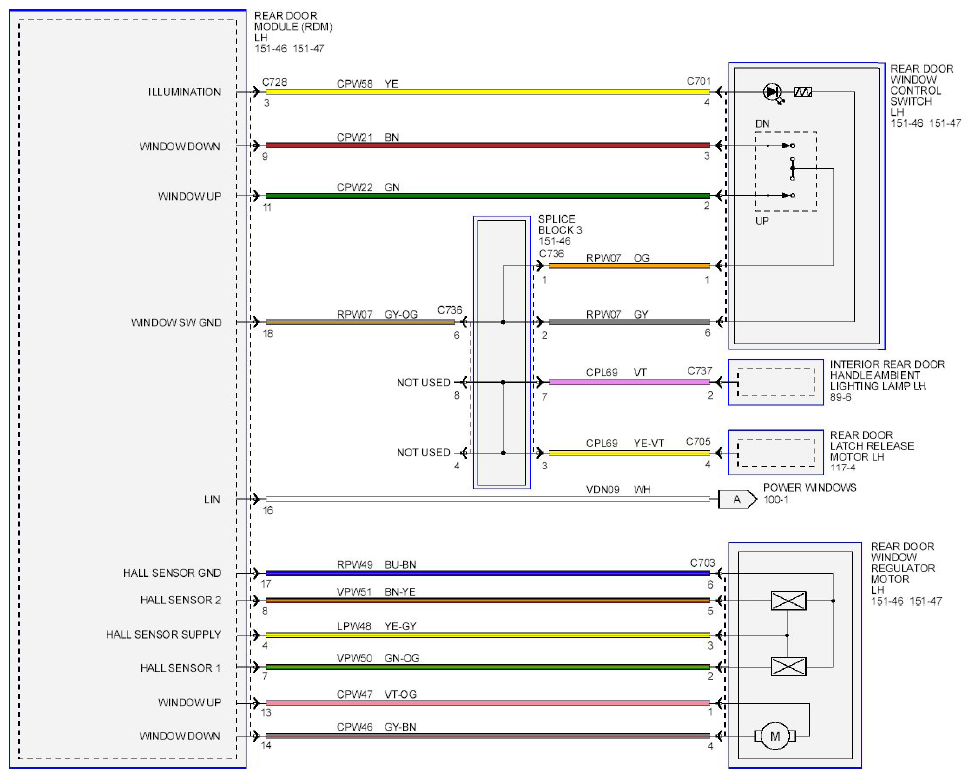

Fig 3: Fusion - Wiring Diagram (3 Of 4)
G08745410Courtesy of FORD MOTOR CO.

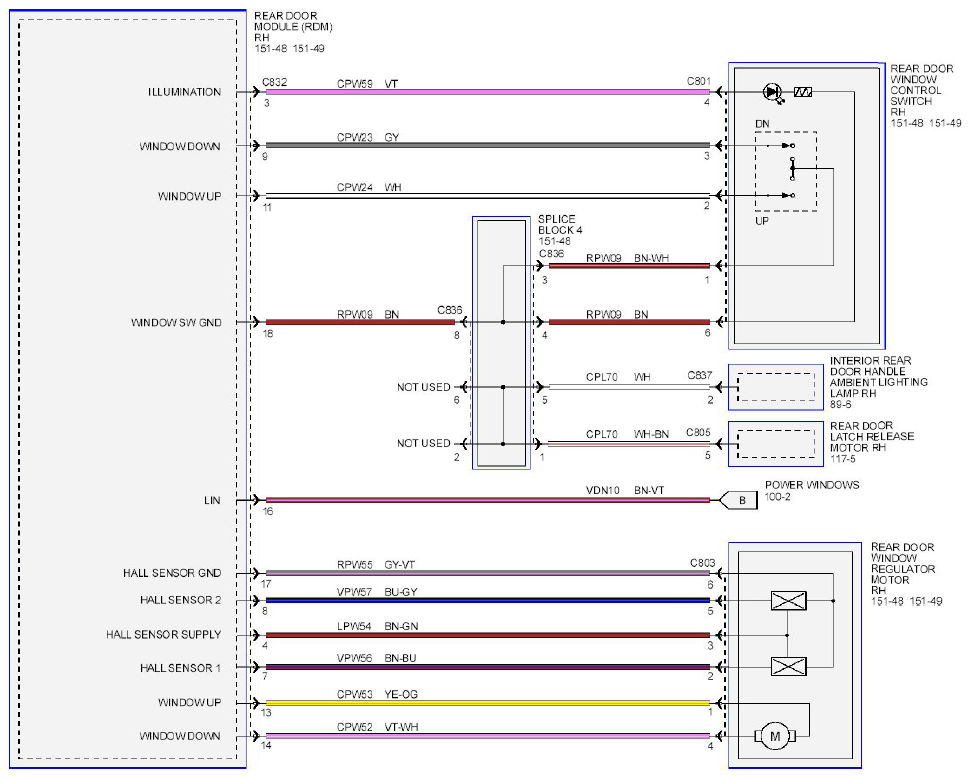

Fig 4: Fusion - Wiring Diagram (4 Of 4)
G08745411Courtesy of FORD MOTOR CO.
