Power Distribution: Notes

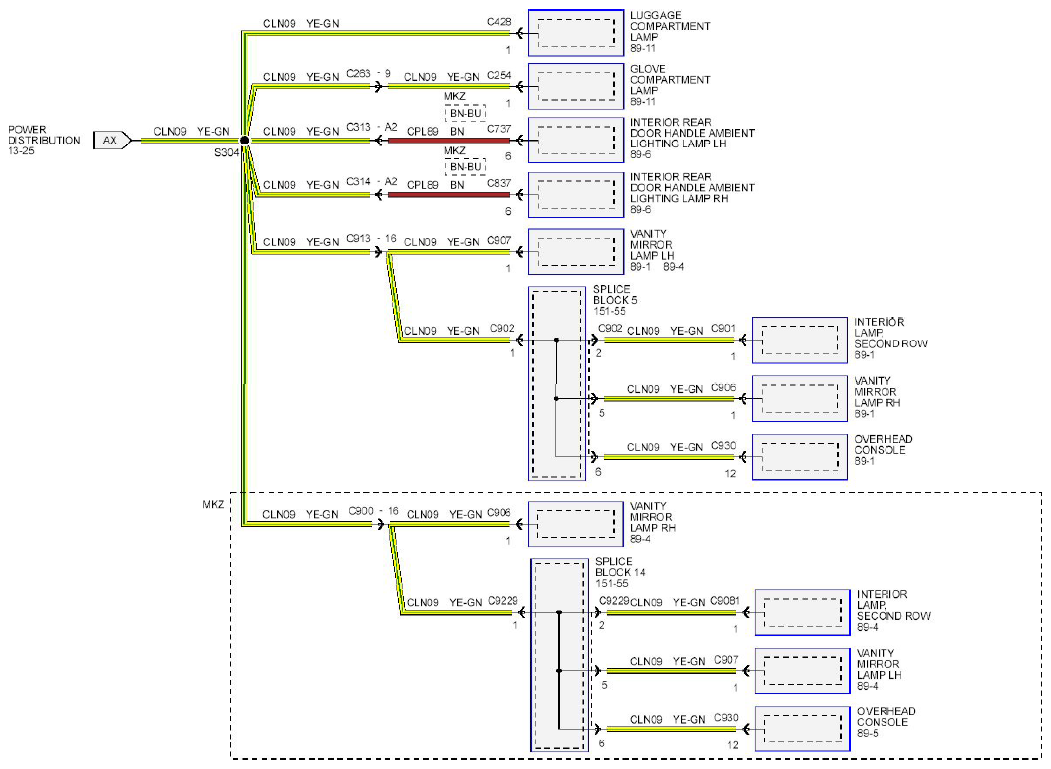

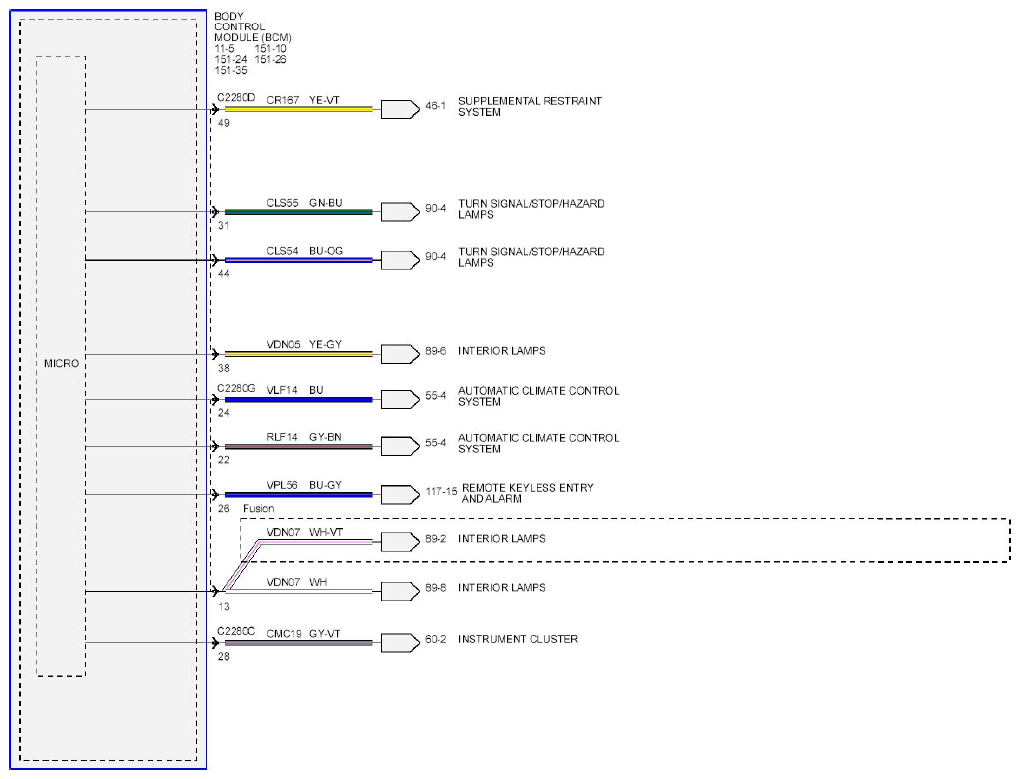

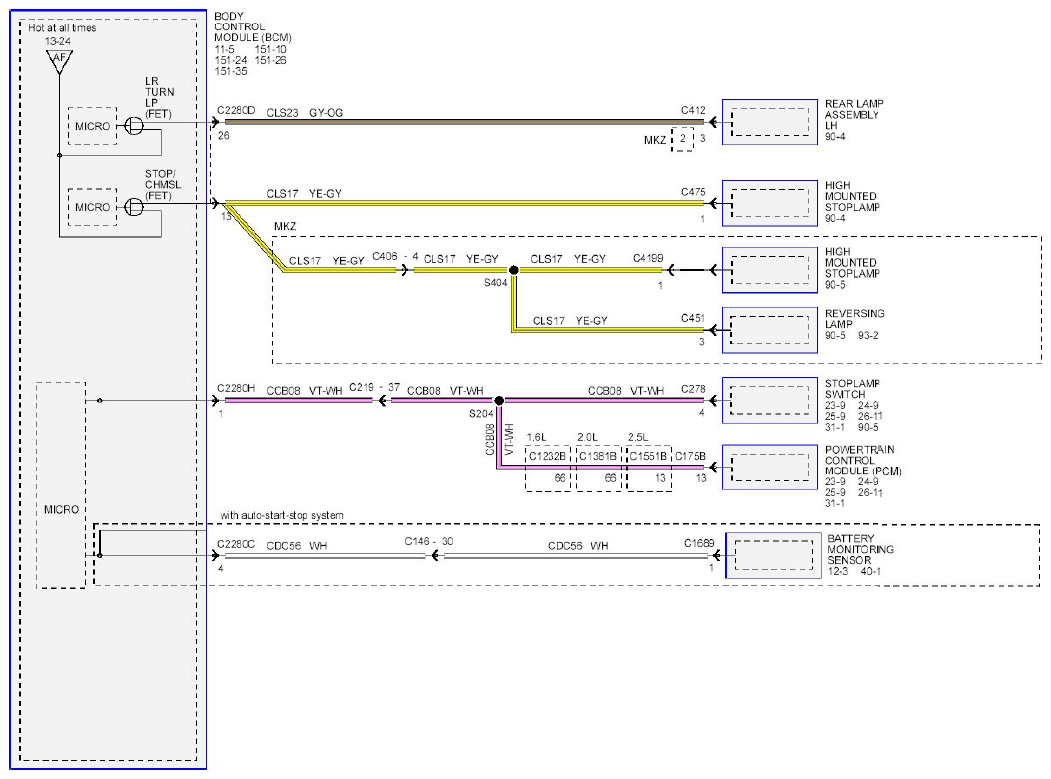

Fig 1: Power Distribution Wiring Diagram - (1 Of 19)

Courtesy of FORD MOTOR CO.

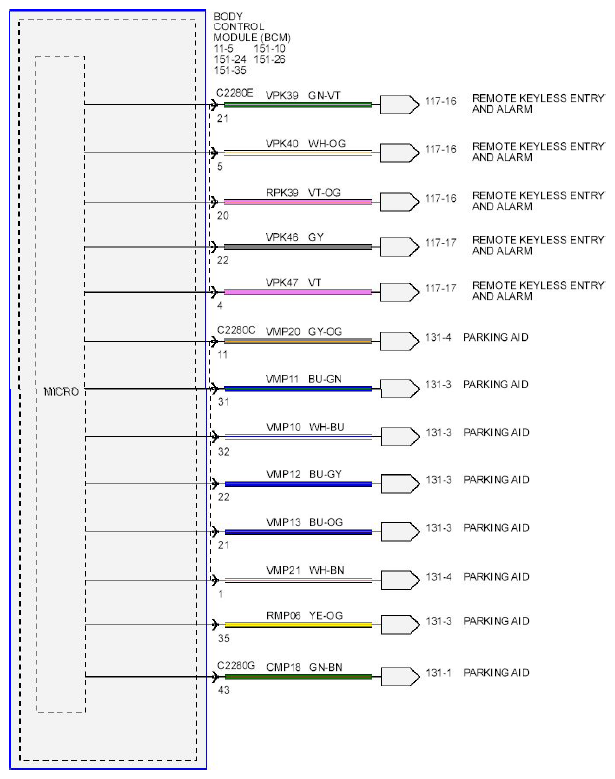

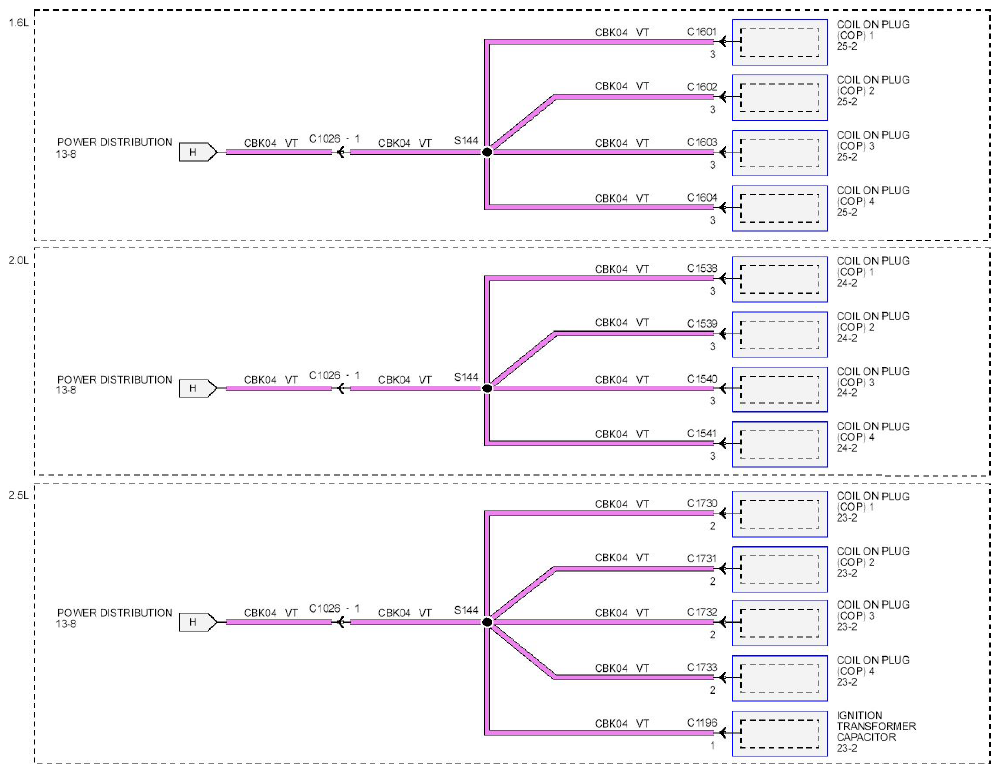

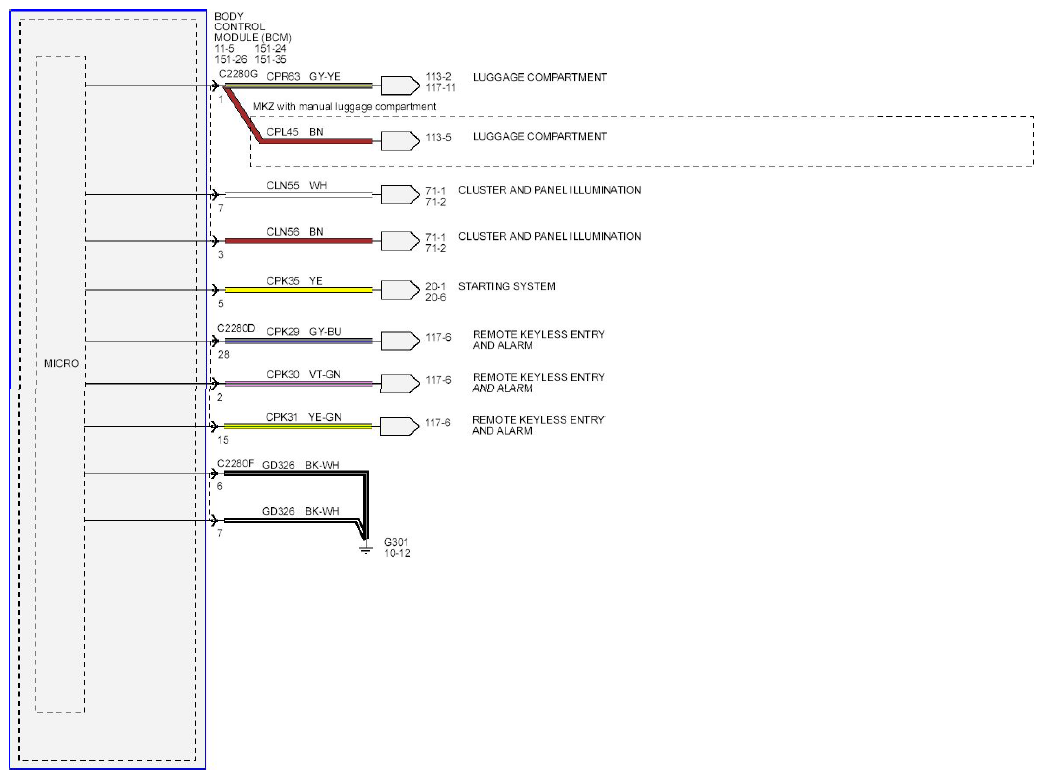

Fig 2: Power Distribution Wiring Diagram - (2 Of 19)

Courtesy of FORD MOTOR CO.

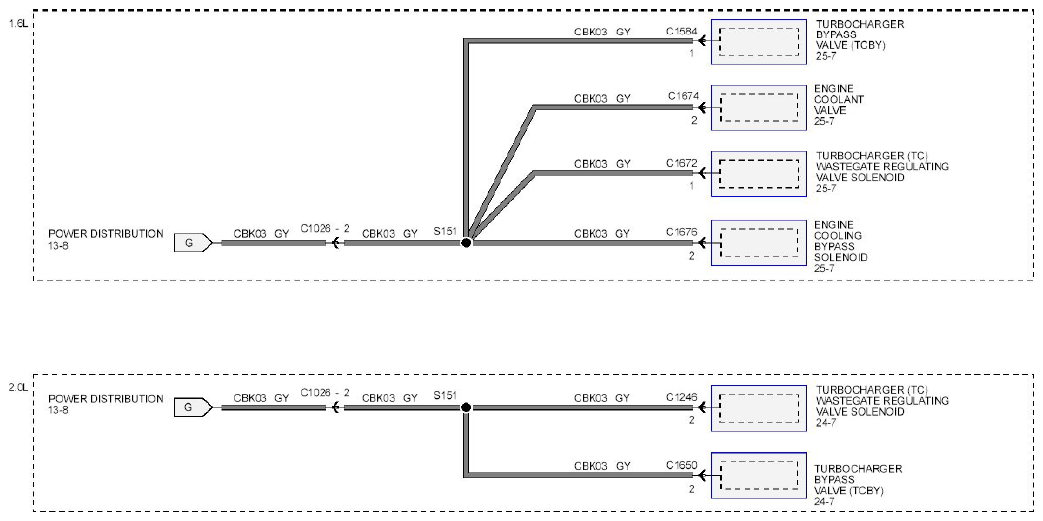

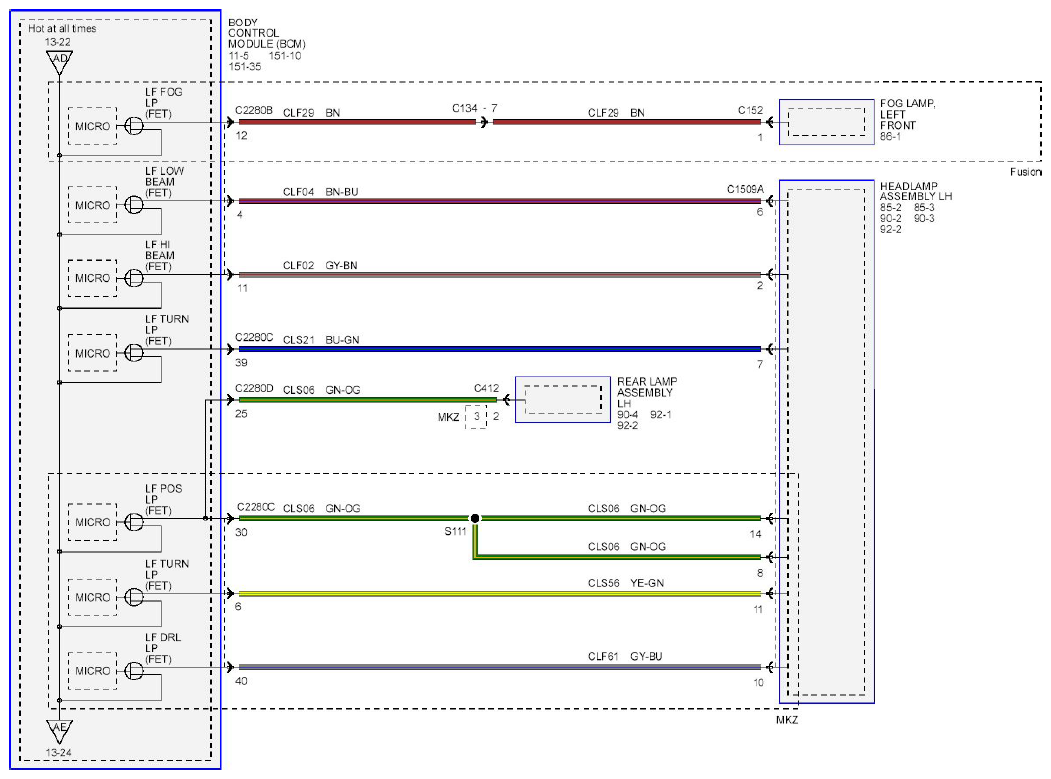

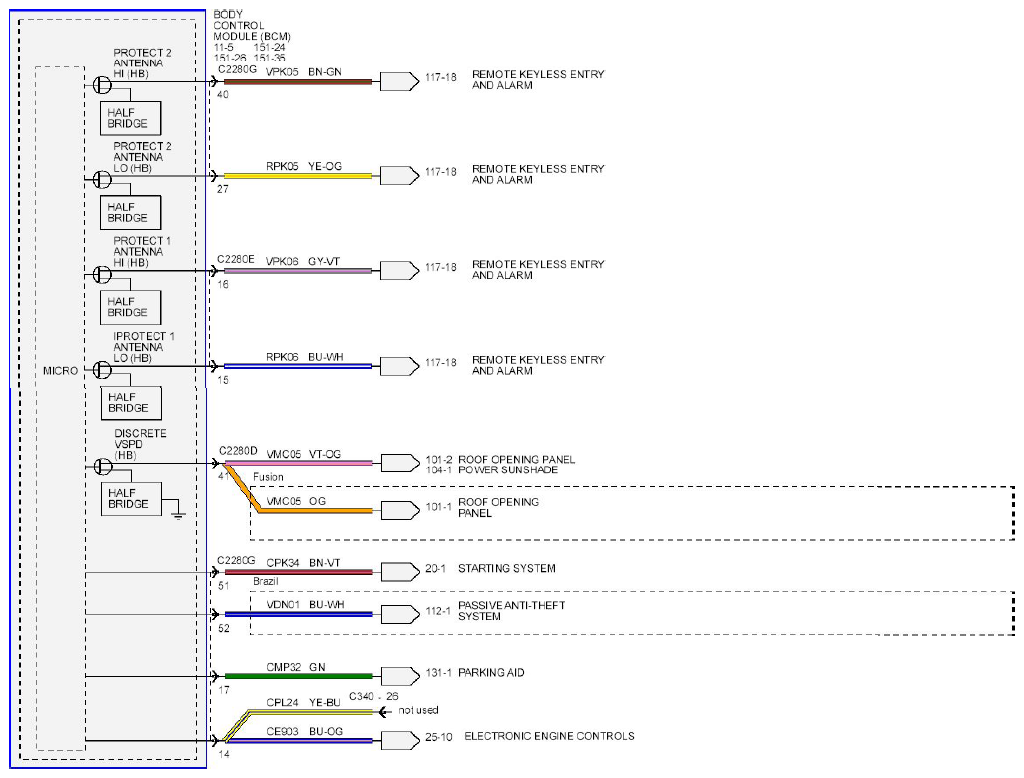

Fig 3: Power Distribution Wiring Diagram - (3 Of 19)

Courtesy of FORD MOTOR CO.

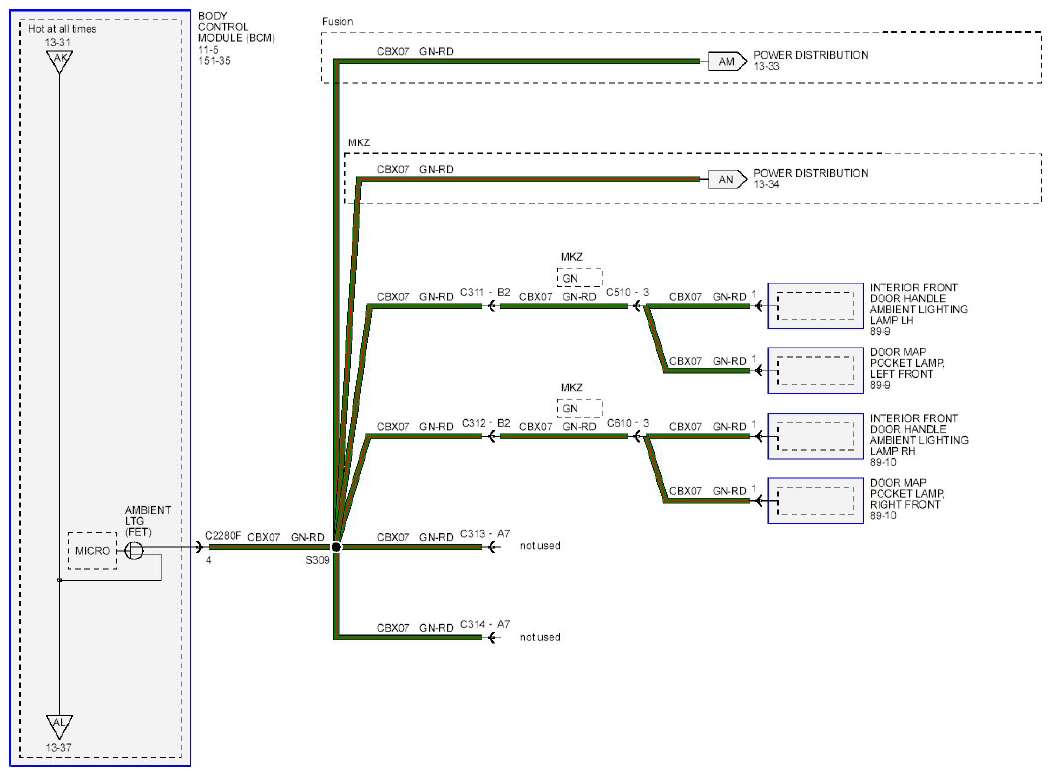

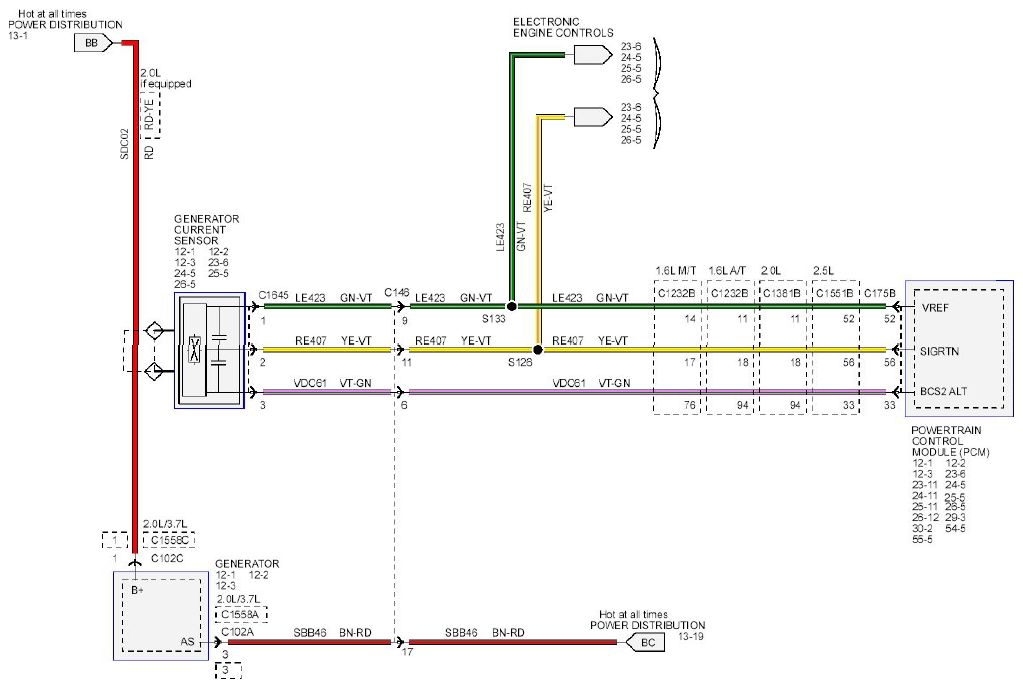

Fig 4: Power Distribution Wiring Diagram - (4 Of 19)

Courtesy of FORD MOTOR CO.

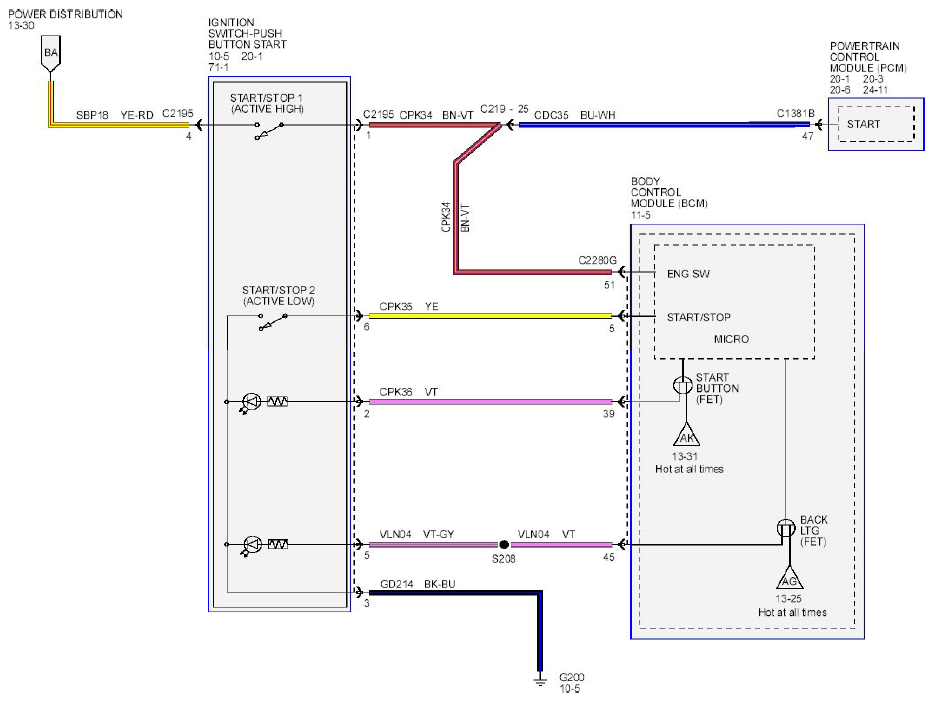

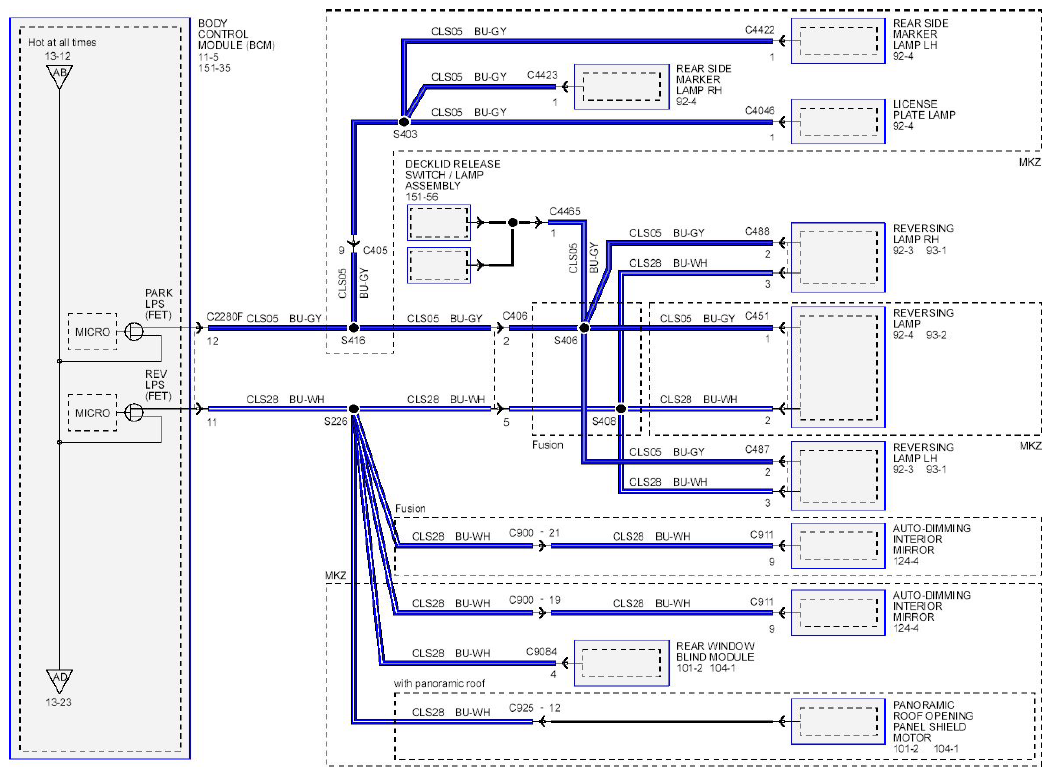

Fig 5: Power Distribution Wiring Diagram - (5 Of 19)

Courtesy of FORD MOTOR CO.

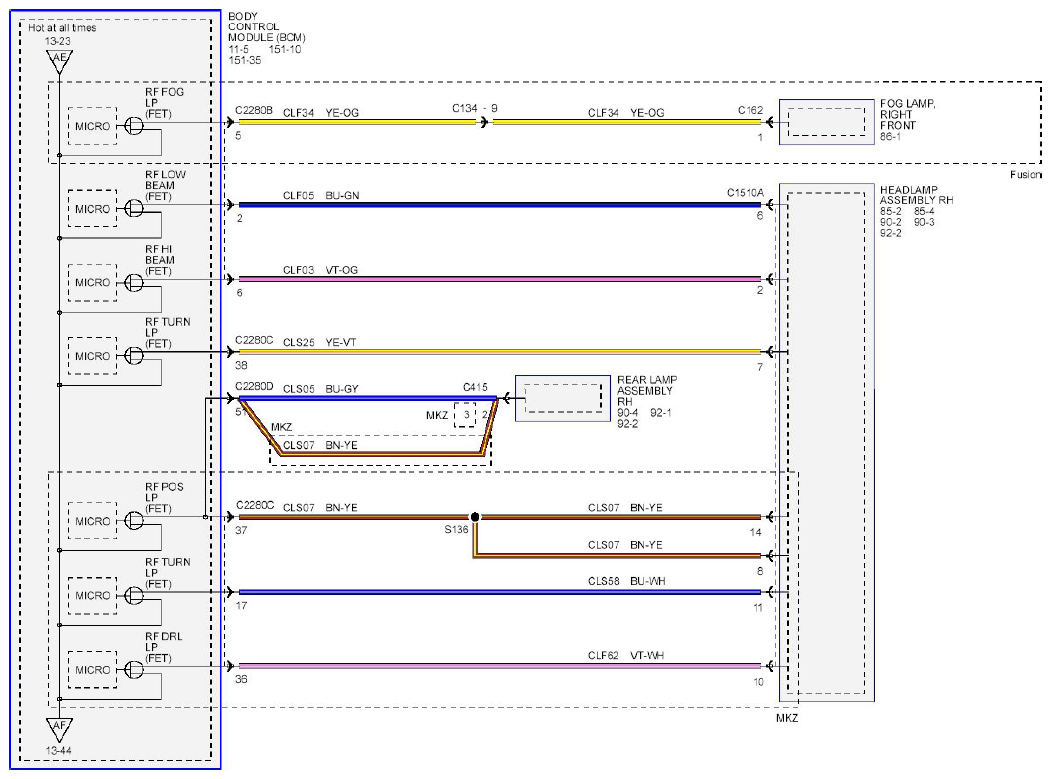

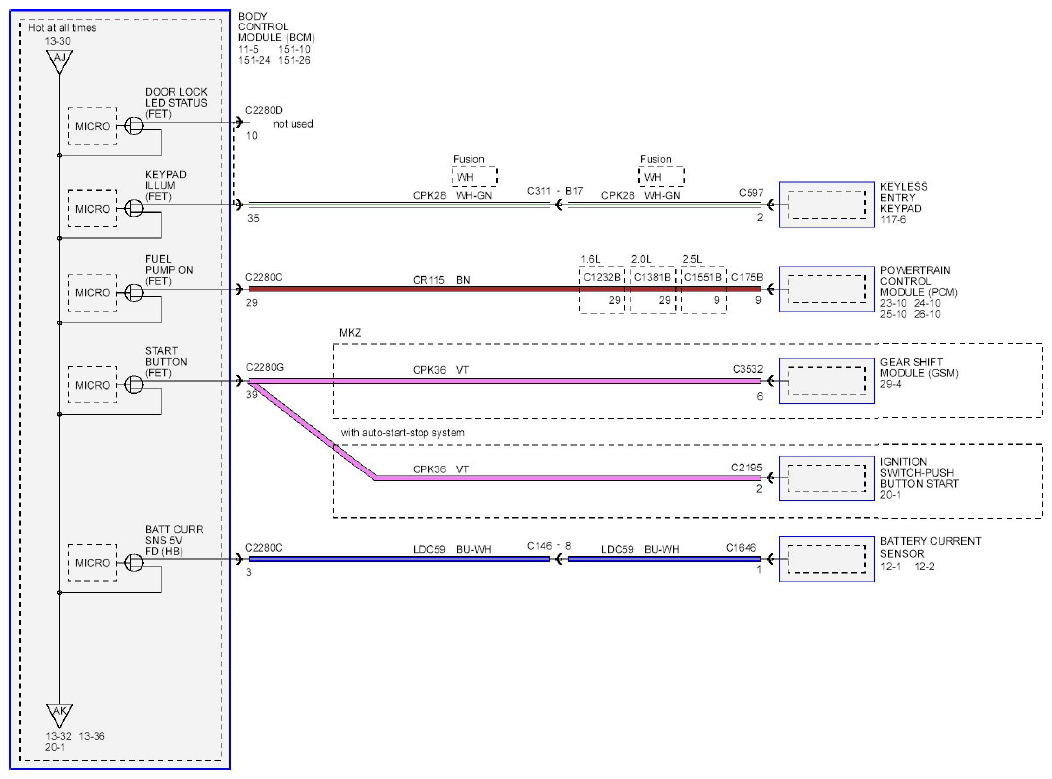

Fig 6: Power Distribution Wiring Diagram - (6 Of 19)

Courtesy of FORD MOTOR CO.

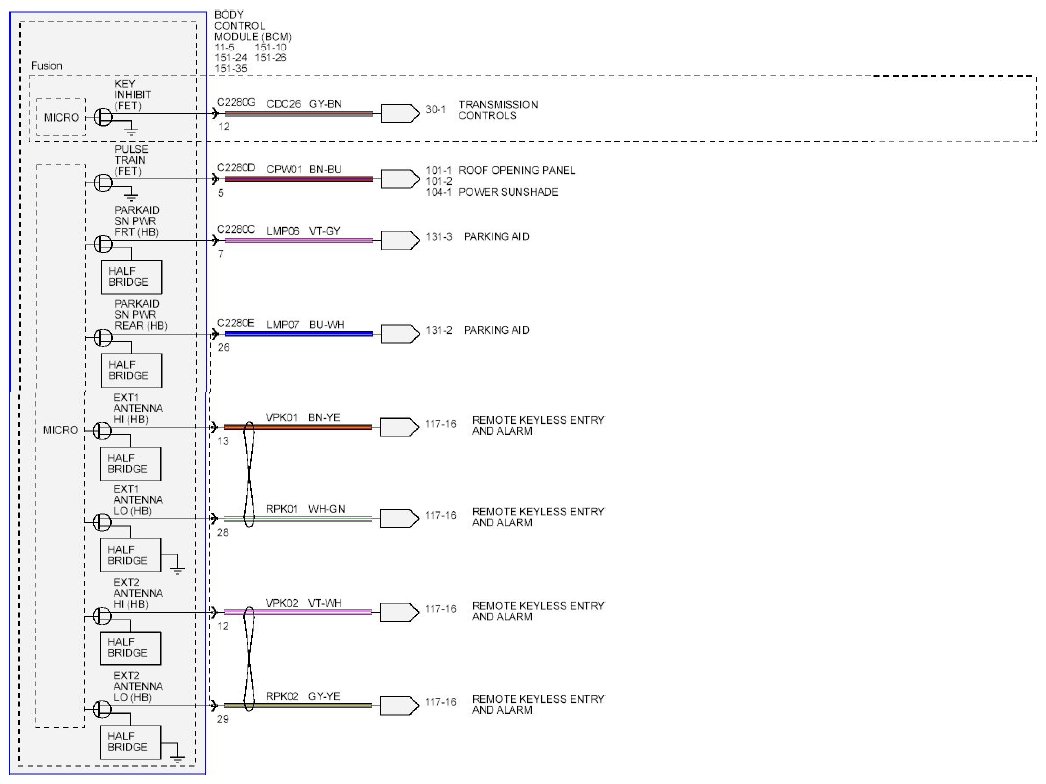

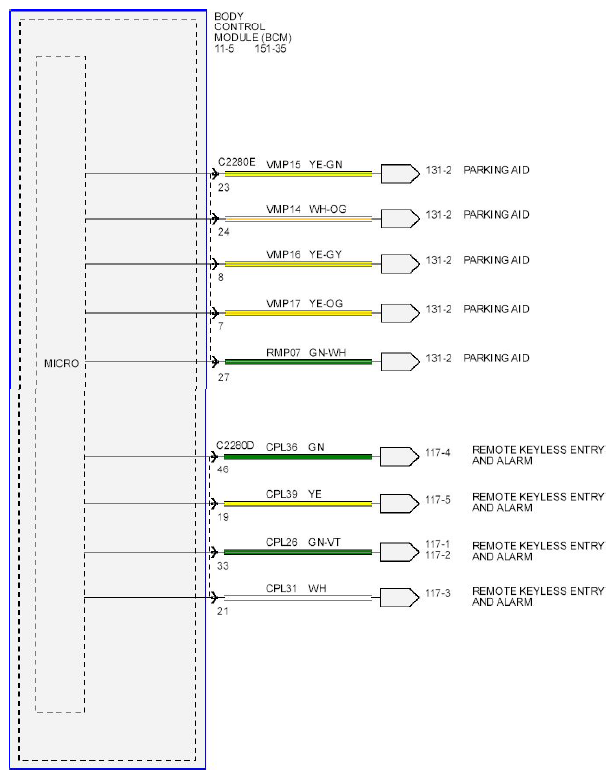

Fig 7: Power Distribution Wiring Diagram - (7 Of 19)

Courtesy of FORD MOTOR CO.

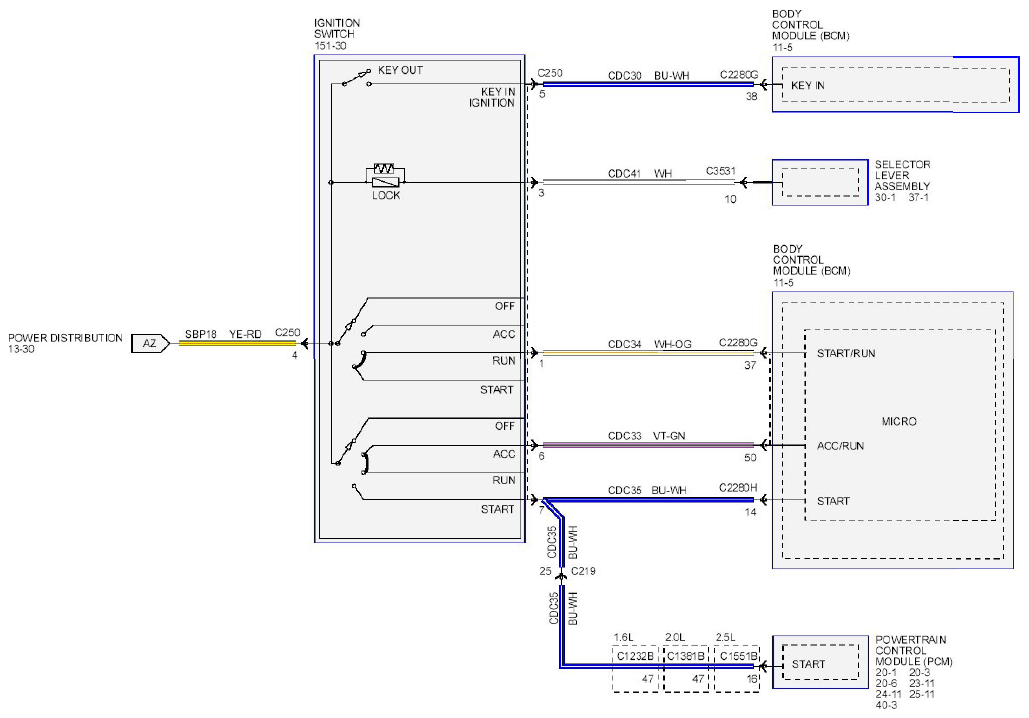

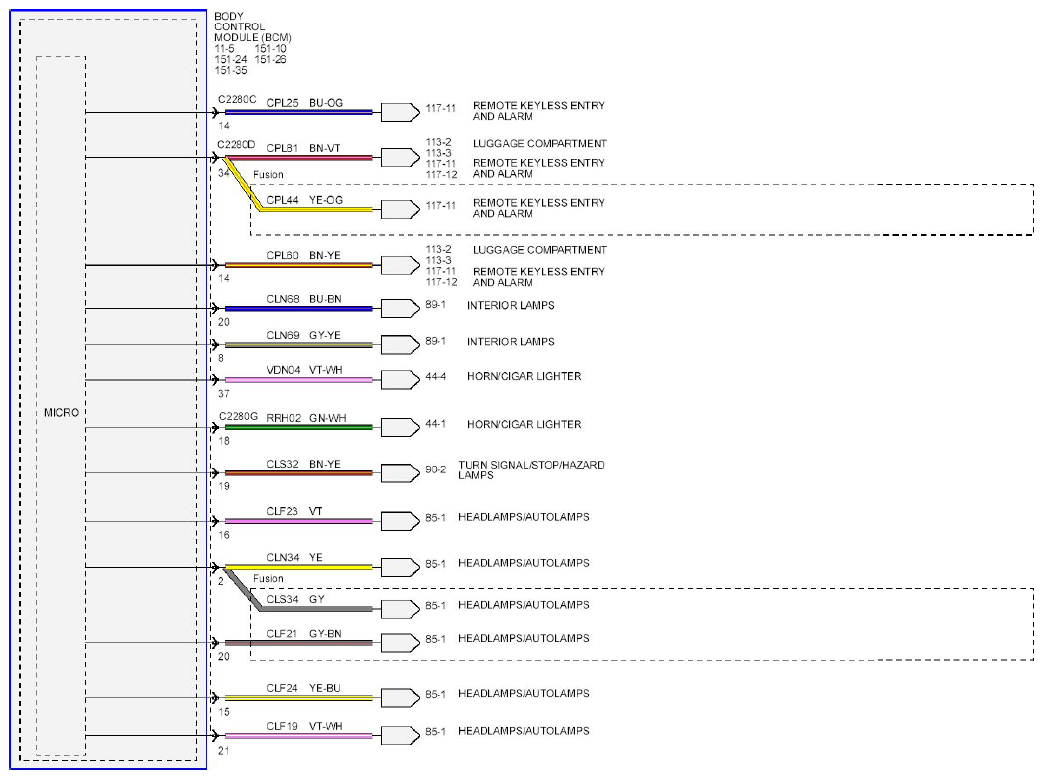

Fig 8: Power Distribution Wiring Diagram - (8 Of 19)

Courtesy of FORD MOTOR CO.

Fig 9: Power Distribution Wiring Diagram - (9 Of 19)

Courtesy of FORD MOTOR CO.

Fig 10: Power Distribution Wiring Diagram - (10 Of 19)

Courtesy of FORD MOTOR CO.

Fig 11: Power Distribution Wiring Diagram - (11 Of 19)

Courtesy of FORD MOTOR CO.

Fig 12: Power Distribution Wiring Diagram - (12 Of 19)

Courtesy of FORD MOTOR CO.

Fig 13: Power Distribution Wiring Diagram - (13 Of 19)

Courtesy of FORD MOTOR CO.

Fig 14: Power Distribution Wiring Diagram - (14 Of 19)

Courtesy of FORD MOTOR CO.

Fig 15: Power Distribution Wiring Diagram - (15 Of 19)

Courtesy of FORD MOTOR CO.

Fig 16: Power Distribution Wiring Diagram - (16 Of 19)

Courtesy of FORD MOTOR CO.

Fig 17: Power Distribution Wiring Diagram - (17 Of 19)

Courtesy of FORD MOTOR CO.

Fig 18: Power Distribution Wiring Diagram - (18 Of 19)

Courtesy of FORD MOTOR CO.

Fig 19: Power Distribution Wiring Diagram - (19 Of 19)

Courtesy of FORD MOTOR CO.
