Ford
>>
2013
>>
Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Distribution
>>
Fusion
Power Distribution: Fusion

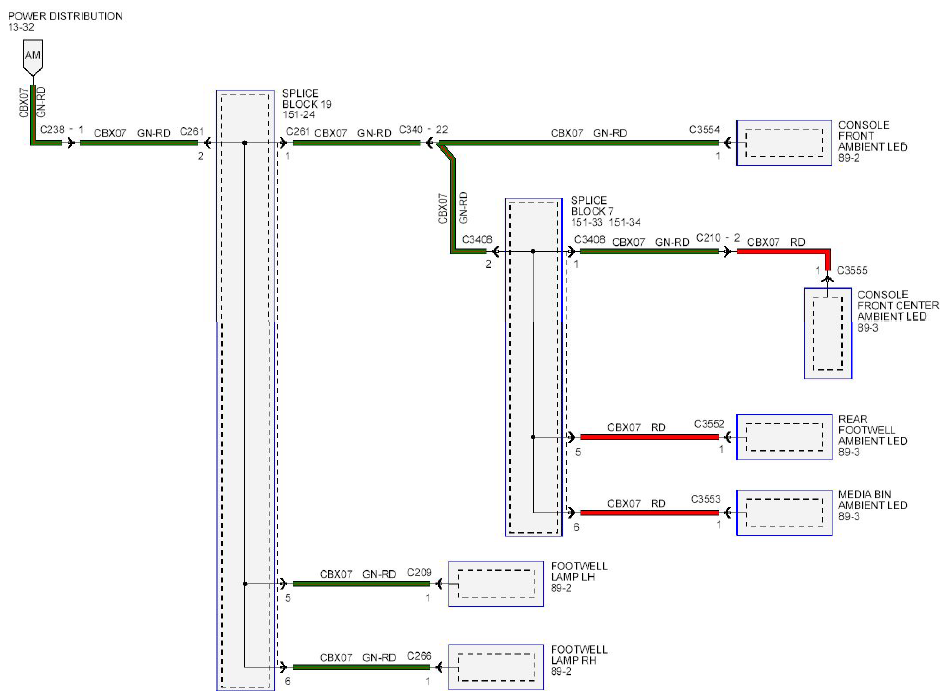

Fig 1: Power Distribution Wiring Diagram - Fusion (1 Of 2)
Courtesy of FORD MOTOR CO.

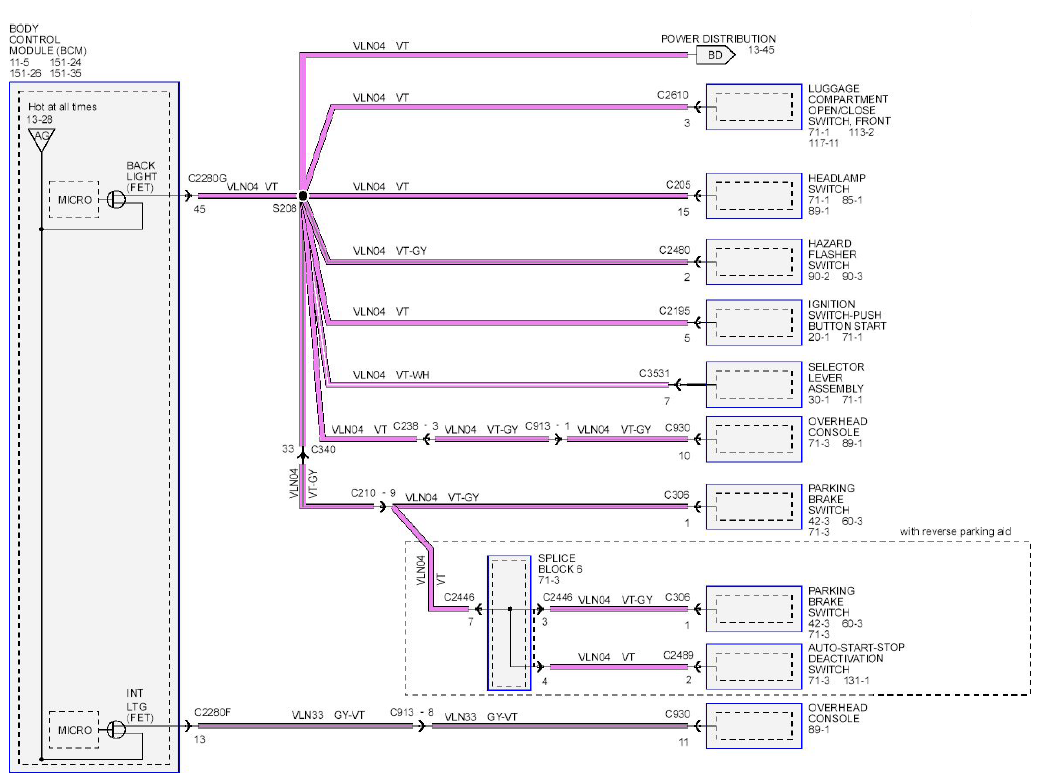

Fig 2: Power Distribution Wiring Diagram - Fusion (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
