Ford
>>
2013
>>
Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Distribution
>>
F3, F15, F16
F3, F15, F16

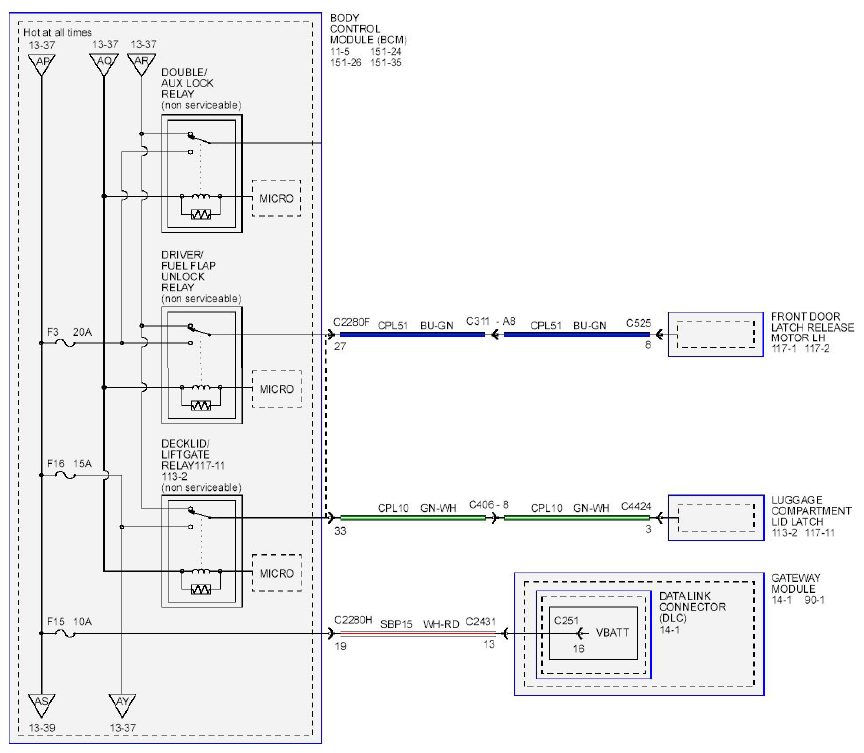

Fig 1: Power Distribution Wiring Diagram - F3, F15, F16
