Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Distribution
>>
F2, F5, F10, F18, F28
F2, F5, F10, F18, F28

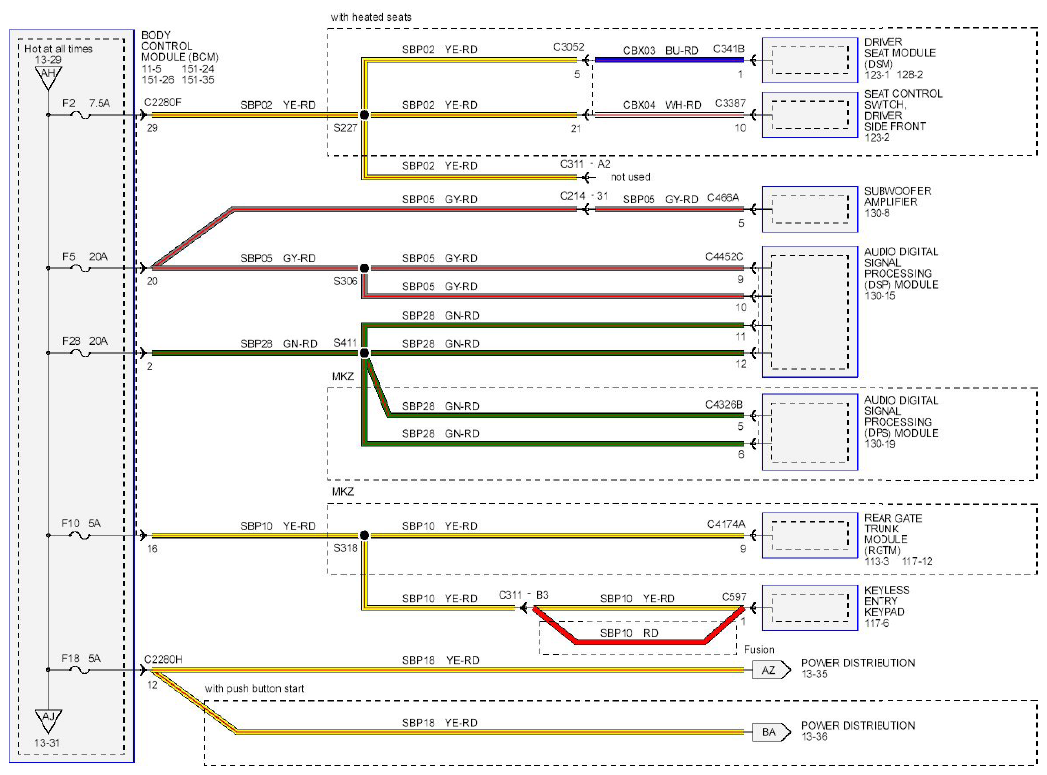

Fig 1: Power Distribution Wiring Diagram - F2, F5, F10, F18, F28
Courtesy of FORD MOTOR CO.
