Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Distribution
>>
2.5L, 3.7L
2.5L, 3.7L

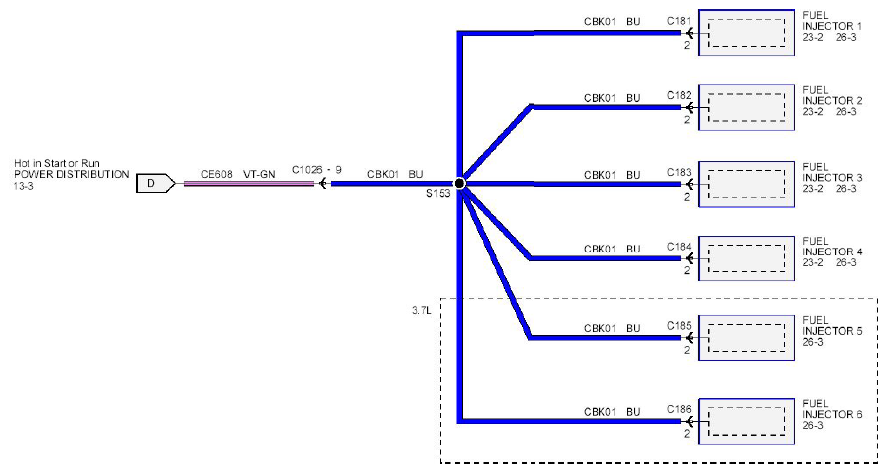

Fig 1: Power Distribution Wiring Diagram - 2.5L, 3.7L
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
