Passive Anti-Theft System: Fusion

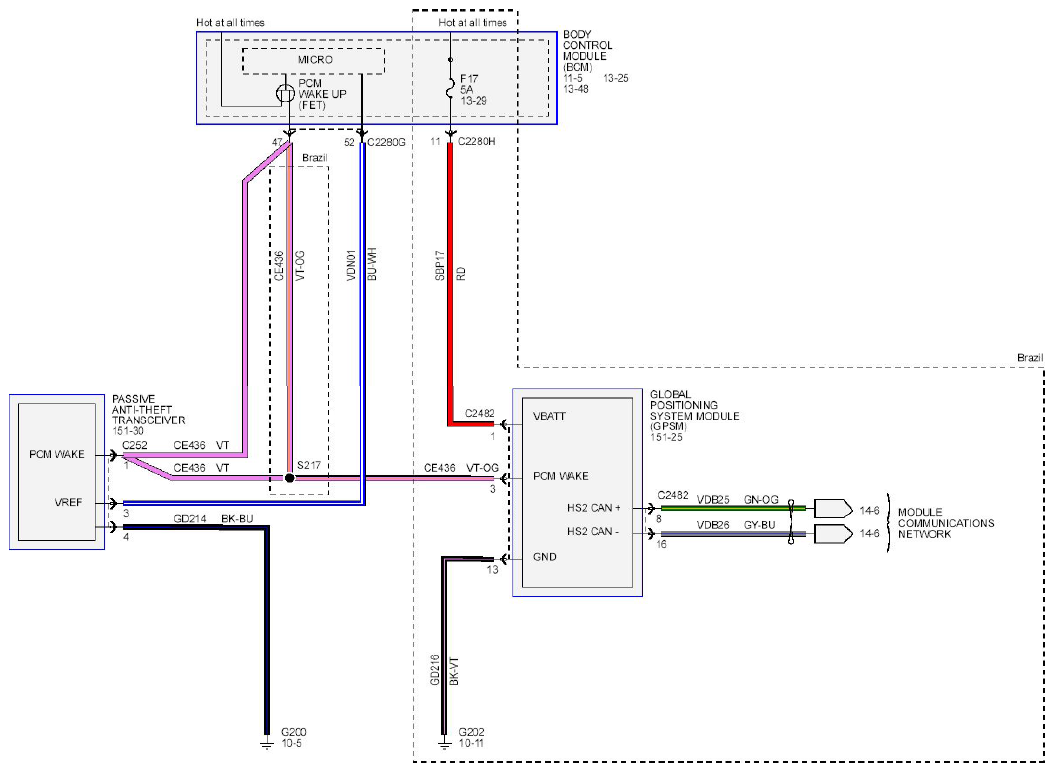

Fig 1: Passive Anti-Theft System Wiring Diagram - Fusion (1 Of 2)
G08745420Courtesy of FORD MOTOR CO.

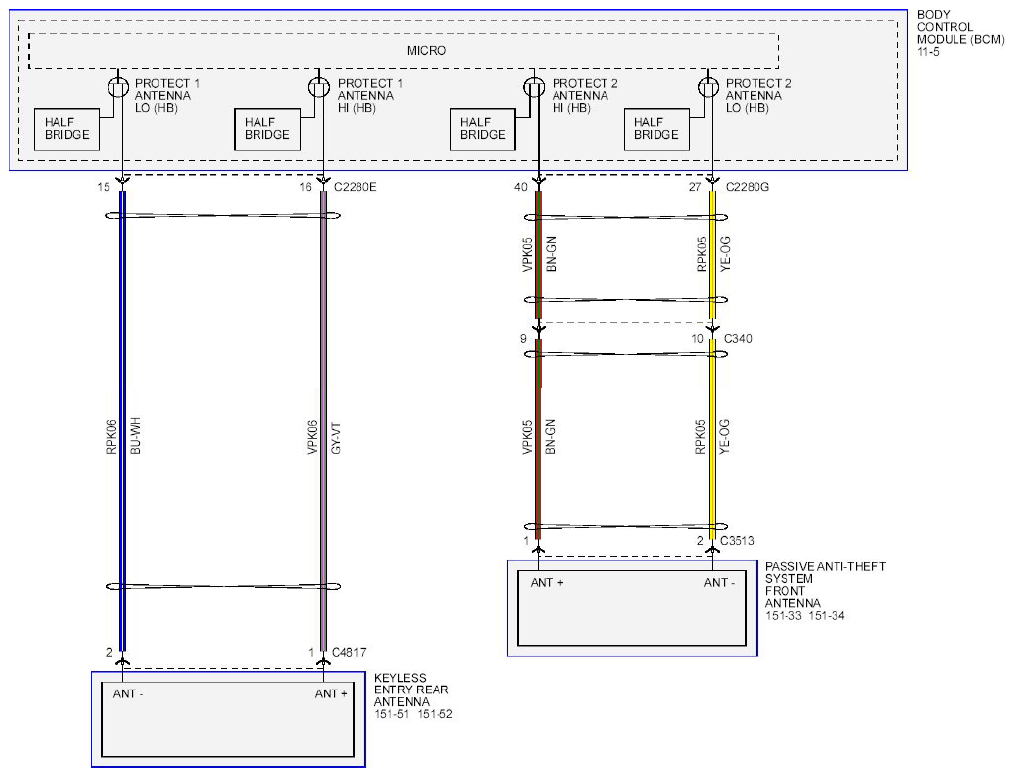

Fig 2: Passive Anti-Theft System Wiring Diagram - Fusion (2 Of 2)
G08745421Courtesy of FORD MOTOR CO.
