Module Communications Network: Notes

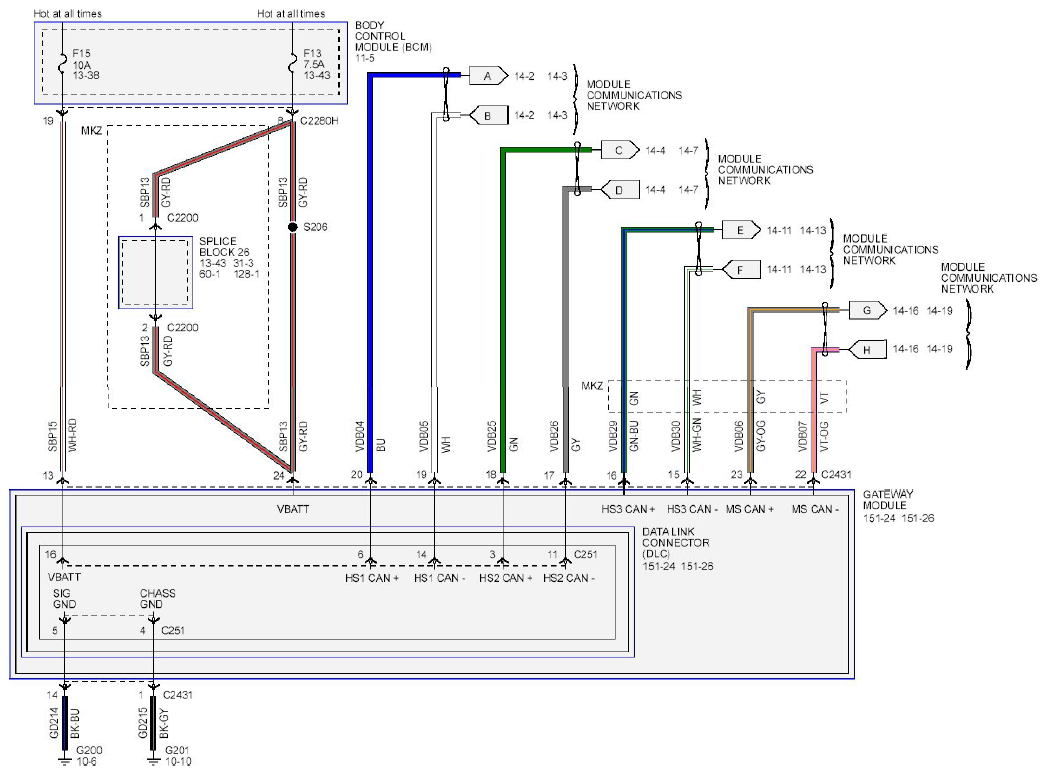

Fig 1: Module Communications Network Wiring Diagram

G08745227

Courtesy of FORD MOTOR CO.
