Module Communications Network: MKZ

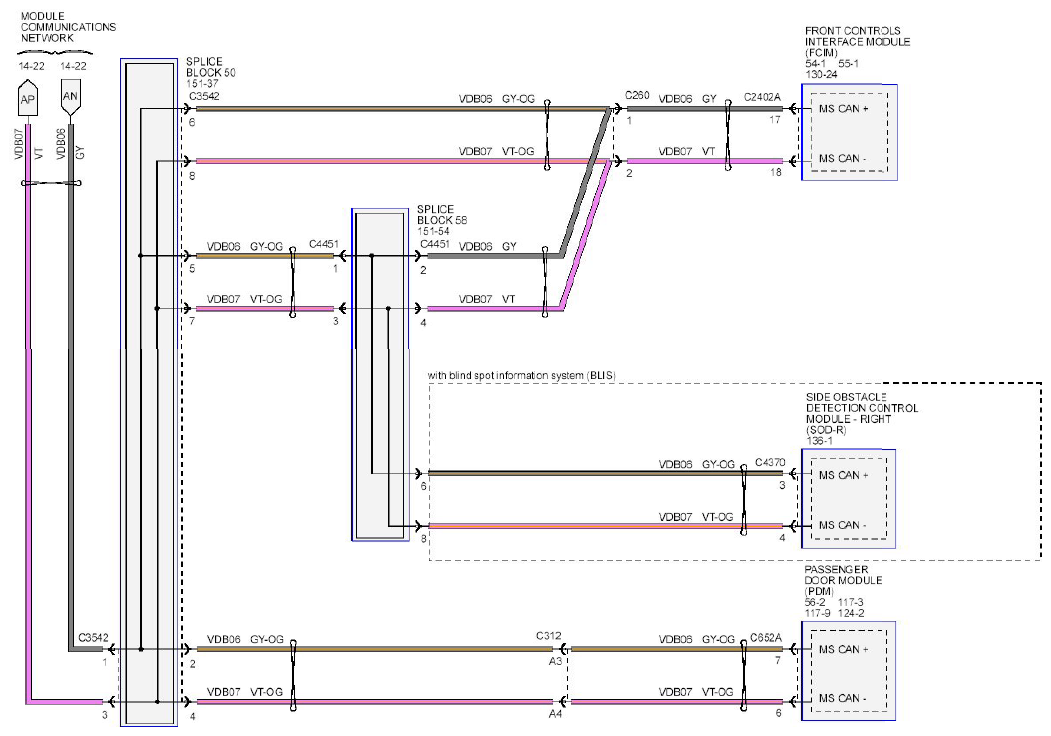

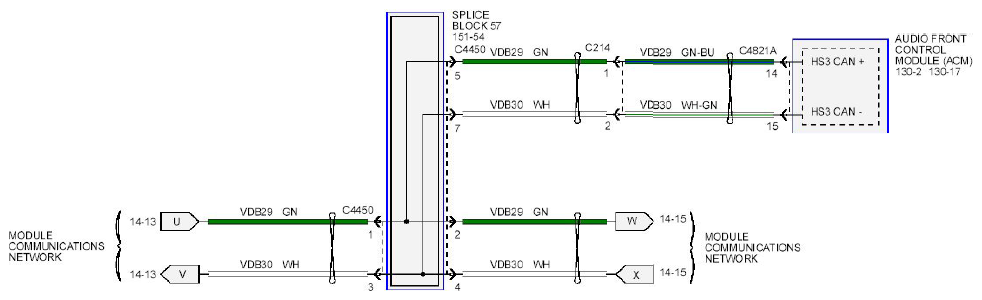

Fig 1: Module Communications Network Wiring Diagram - MKZ (1 Of 13)

Courtesy of FORD MOTOR CO.

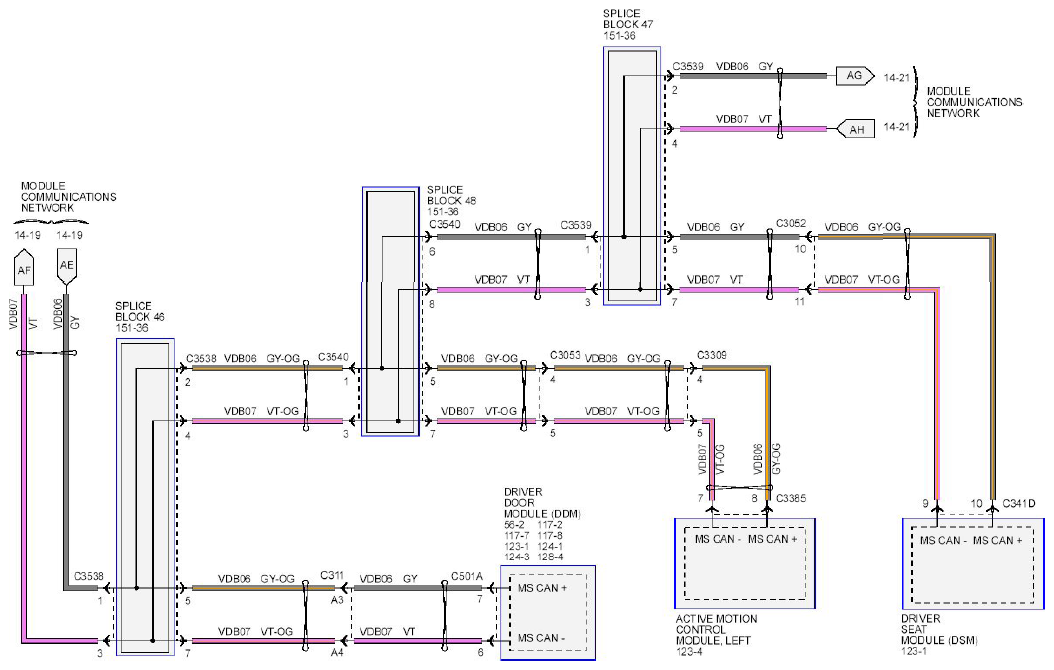

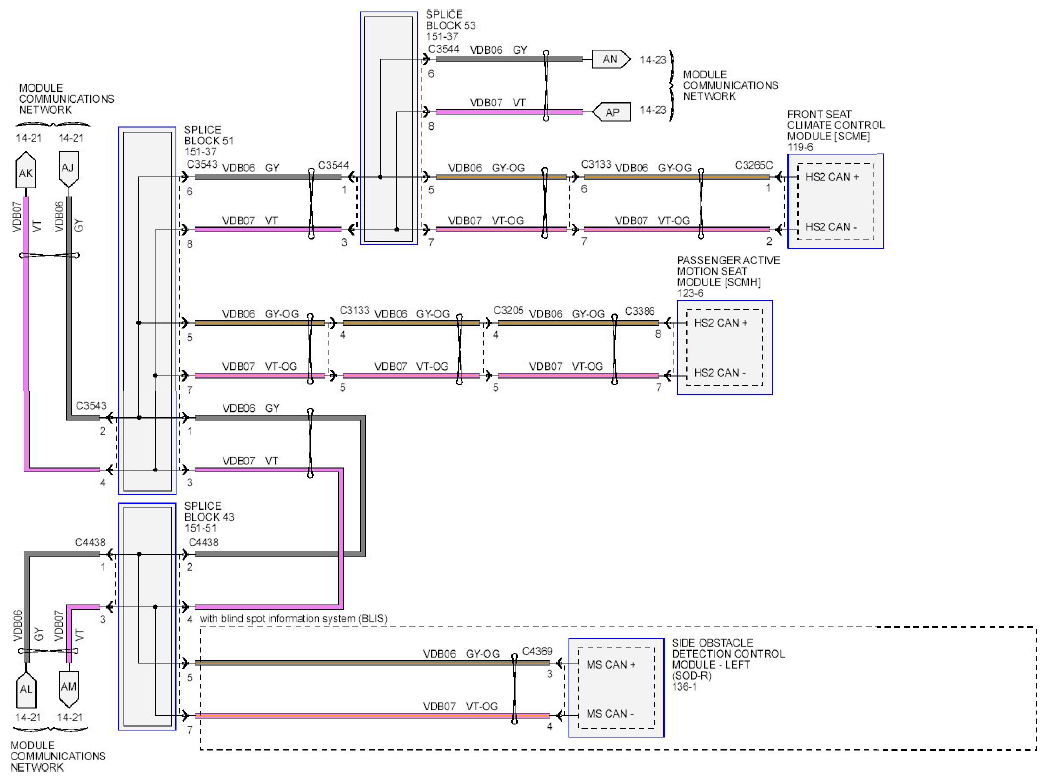

Fig 2: Module Communications Network Wiring Diagram - MKZ (2 Of 13)

Courtesy of FORD MOTOR CO.

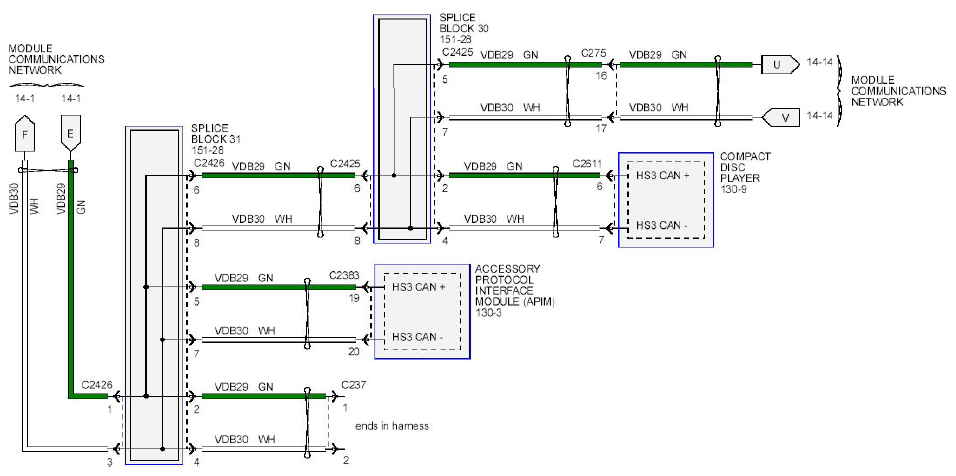

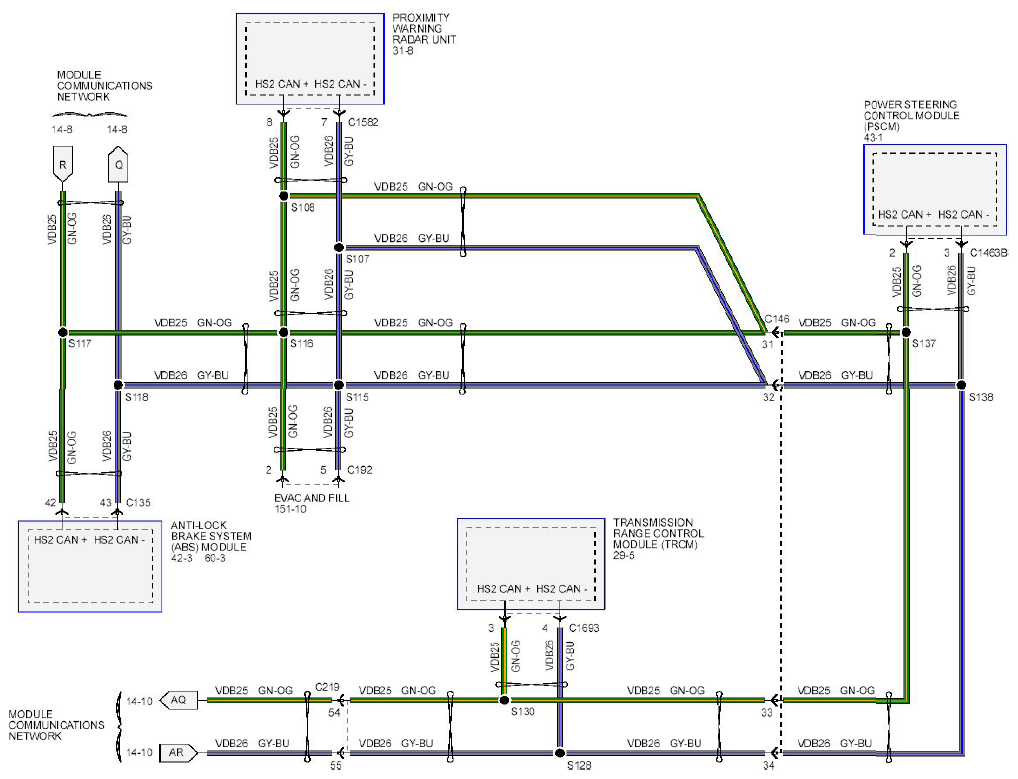

Fig 3: Module Communications Network Wiring Diagram - MKZ (3 Of 13)

Courtesy of FORD MOTOR CO.

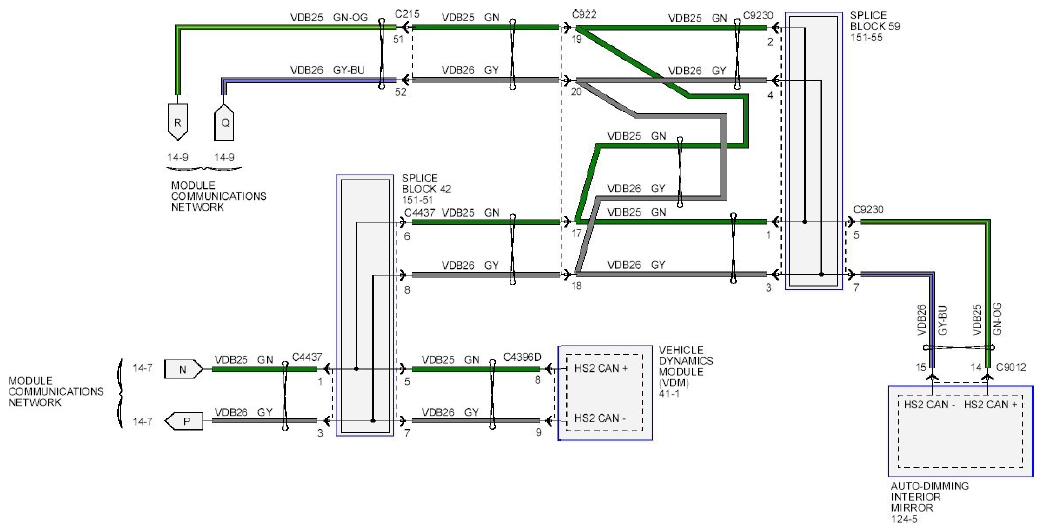

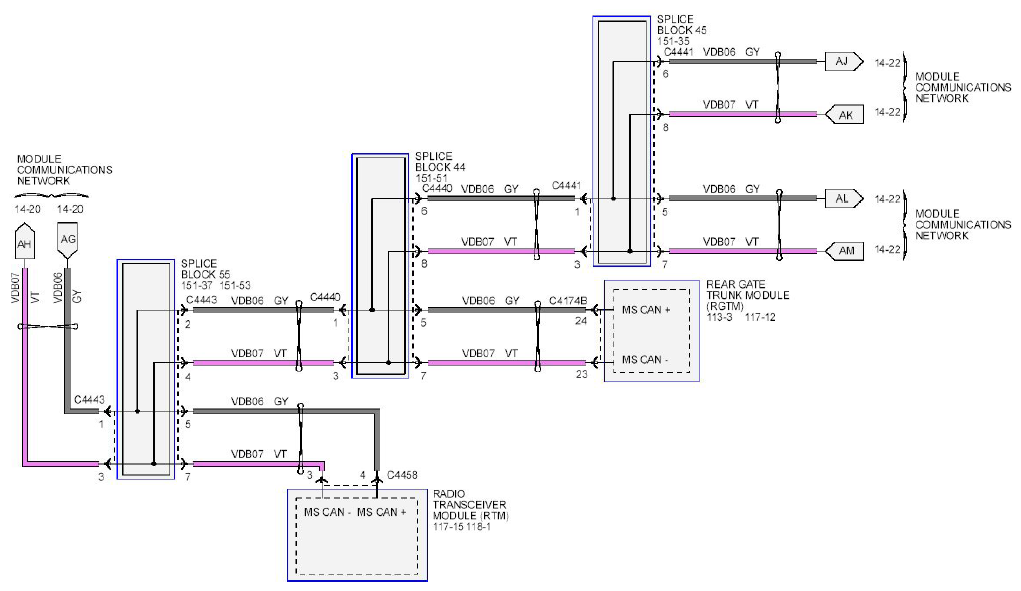

Fig 4: Module Communications Network Wiring Diagram - MKZ (4 Of 13)

Courtesy of FORD MOTOR CO.

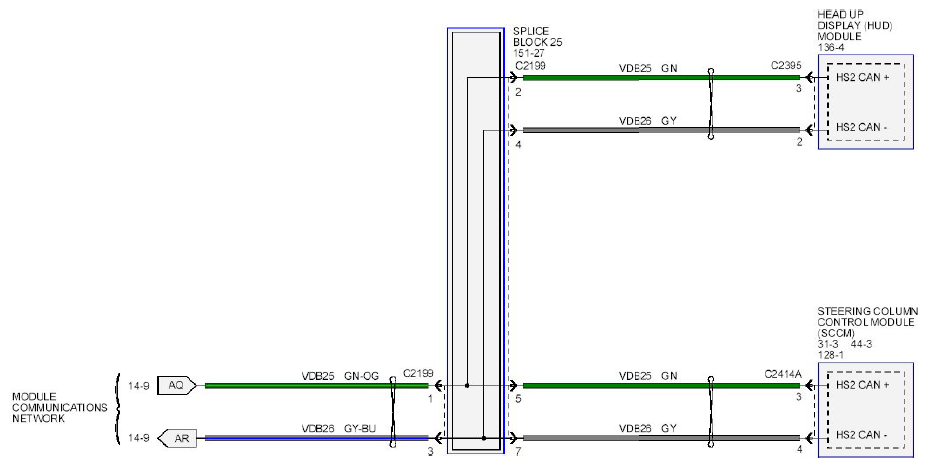

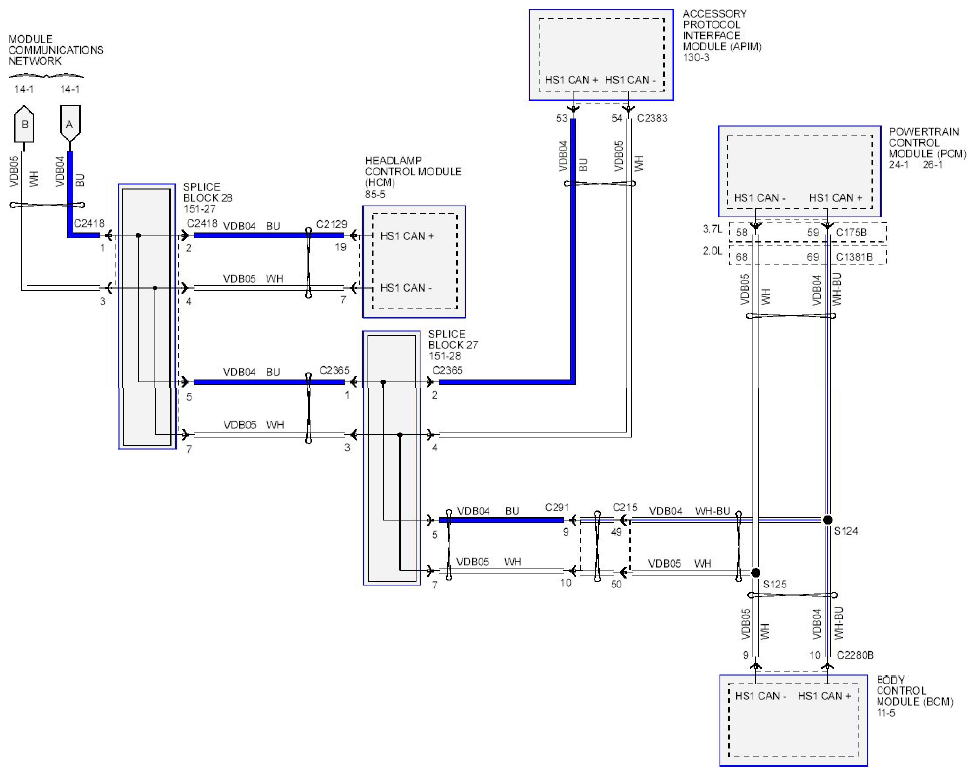

Fig 5: Module Communications Network Wiring Diagram - MKZ (5 Of 12)

Courtesy of FORD MOTOR CO.

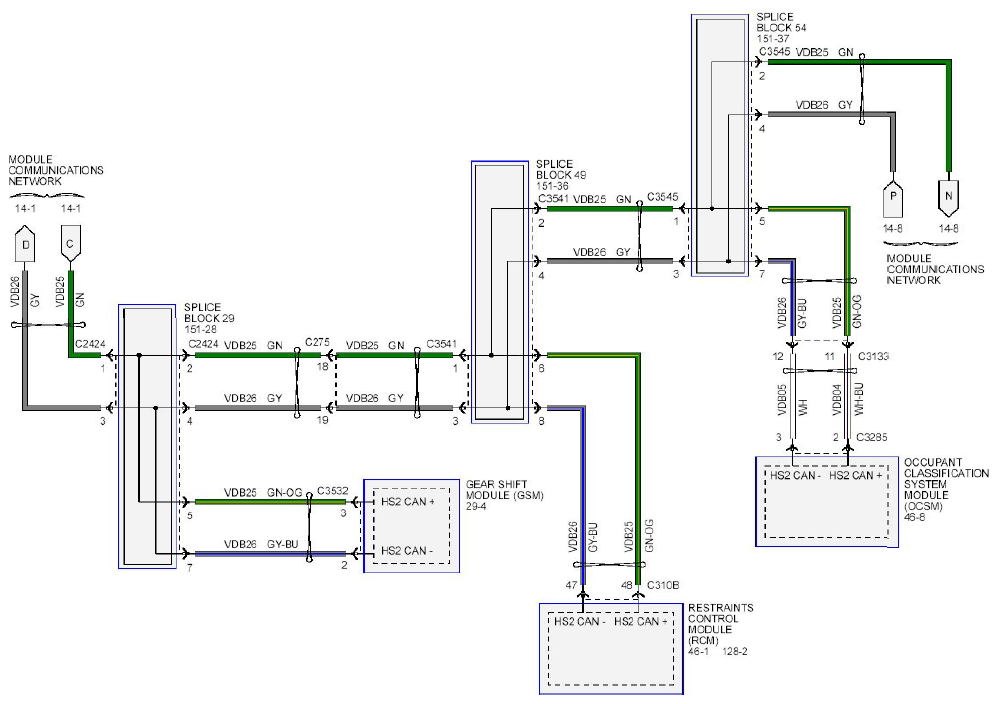

Fig 6: Module Communications Network Wiring Diagram - MKZ (6 Of 13)

Courtesy of FORD MOTOR CO.

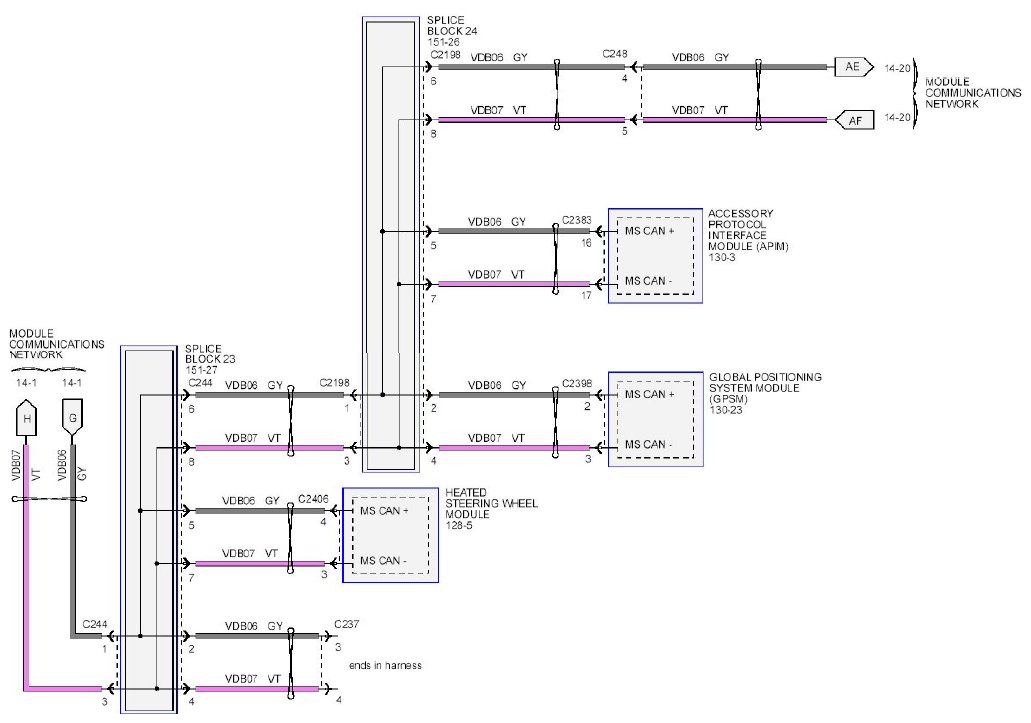

Fig 7: Module Communications Network Wiring Diagram - MKZ (7 Of 13)

Courtesy of FORD MOTOR CO.

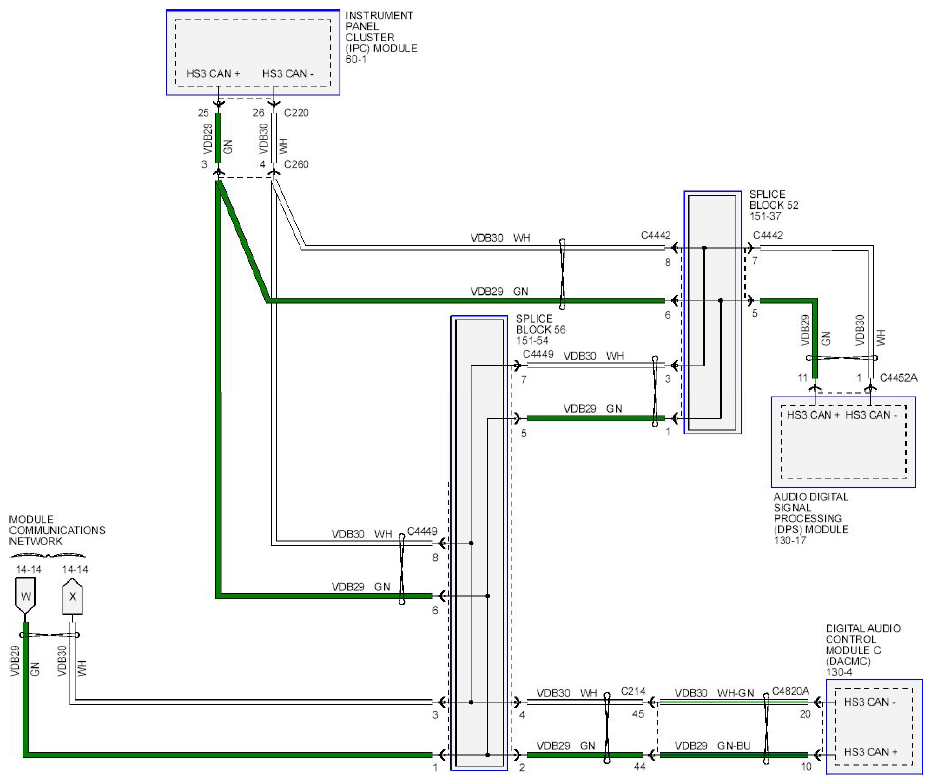

Fig 8: Module Communications Network Wiring Diagram - MKZ (8 Of 13)

Courtesy of FORD MOTOR CO.

Fig 9: Module Communications Network Wiring Diagram - MKZ (9 Of 13)

Courtesy of FORD MOTOR CO.

Fig 10: Module Communications Network Wiring Diagram - MKZ (10 Of 13)

Courtesy of FORD MOTOR CO.

Fig 11: Module Communications Network Wiring Diagram - MKZ (11 Of 13)

Courtesy of FORD MOTOR CO.

Fig 12: Module Communications Network Wiring Diagram - MKZ (12 Of 13)

Courtesy of FORD MOTOR CO.

Fig 13: Module Communications Network Wiring Diagram - MKZ (13 Of 13)

Courtesy of FORD MOTOR CO.
