Module Communications Network: Fusion

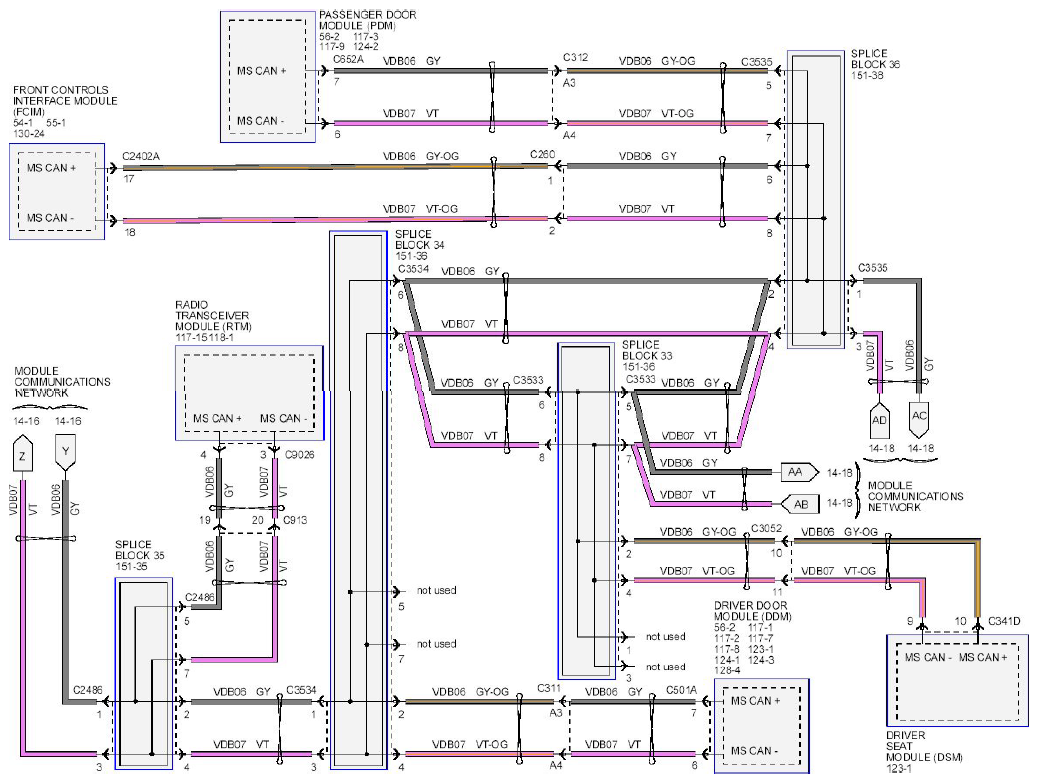

Fig 1: Module Communications Network Wiring Diagram - Fusion (1 Of 8)

Courtesy of FORD MOTOR CO.

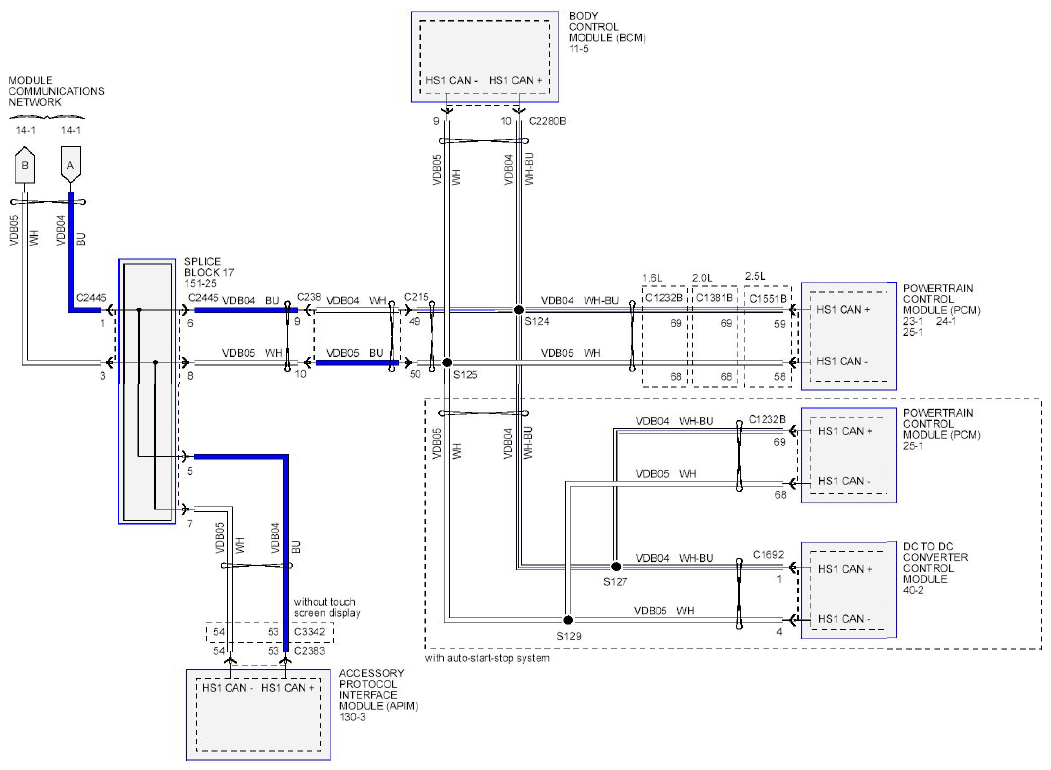

Fig 2: Module Communications Network Wiring Diagram - Fusion (2 Of 8)

Courtesy of FORD MOTOR CO.

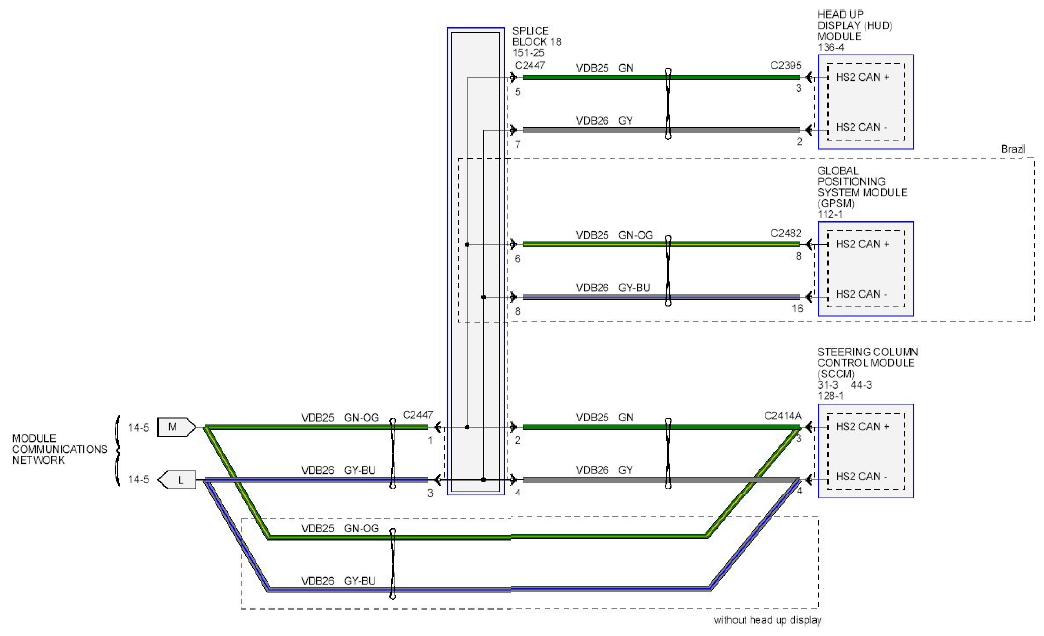

Fig 3: Module Communications Network Wiring Diagram - Fusion (3 Of 8)

Courtesy of FORD MOTOR CO.

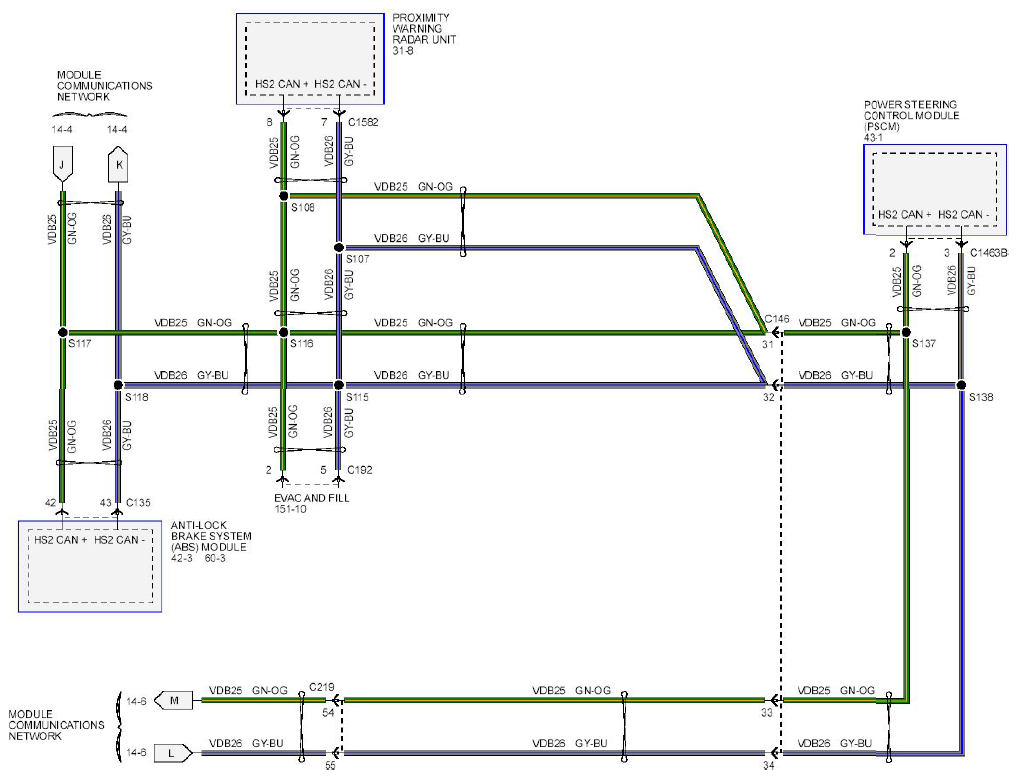

Fig 4: Module Communications Network Wiring Diagram - Fusion (4 Of 8)

Courtesy of FORD MOTOR CO.

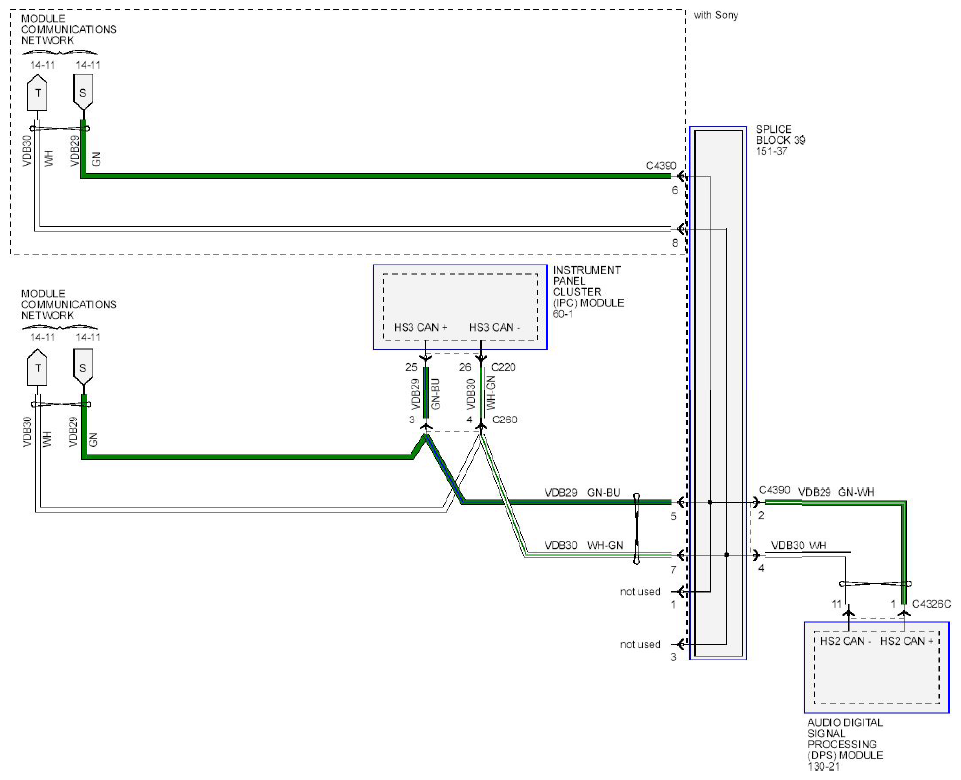

Fig 5: Module Communications Network Wiring Diagram - Fusion (5 Of 8)

Courtesy of FORD MOTOR CO.

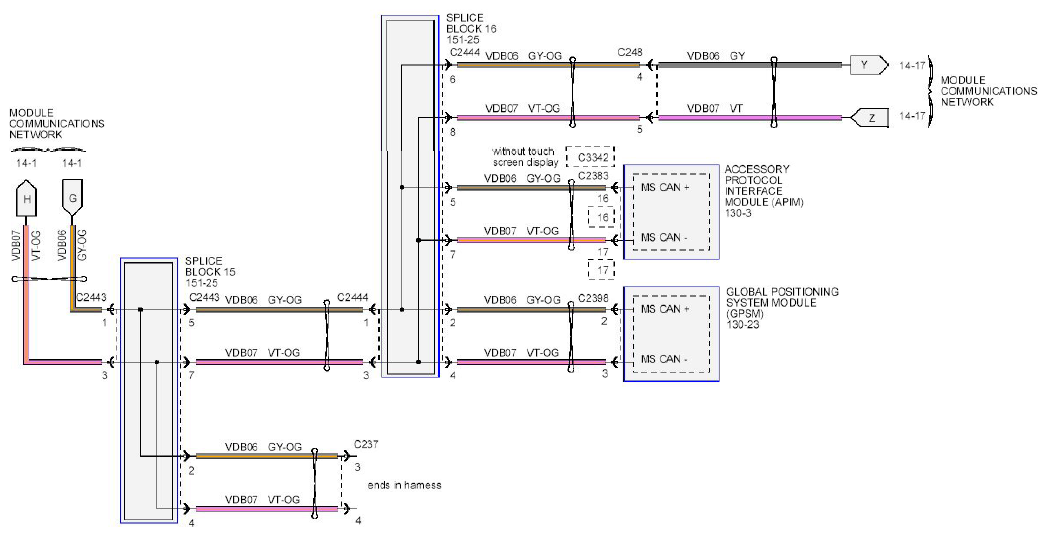

Fig 6: Module Communications Network Wiring Diagram - Fusion (6 Of 8)

Courtesy of FORD MOTOR CO.

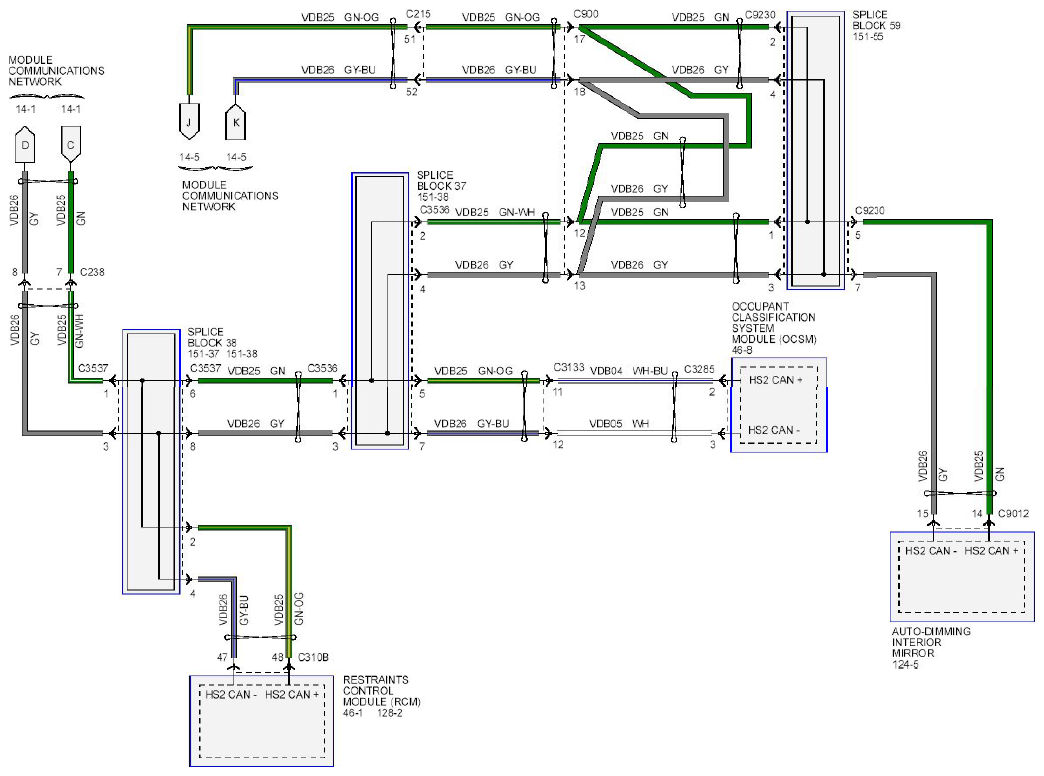

Fig 7: Module Communications Network Wiring Diagram - Fusion (7 Of 8)

Courtesy of FORD MOTOR CO.

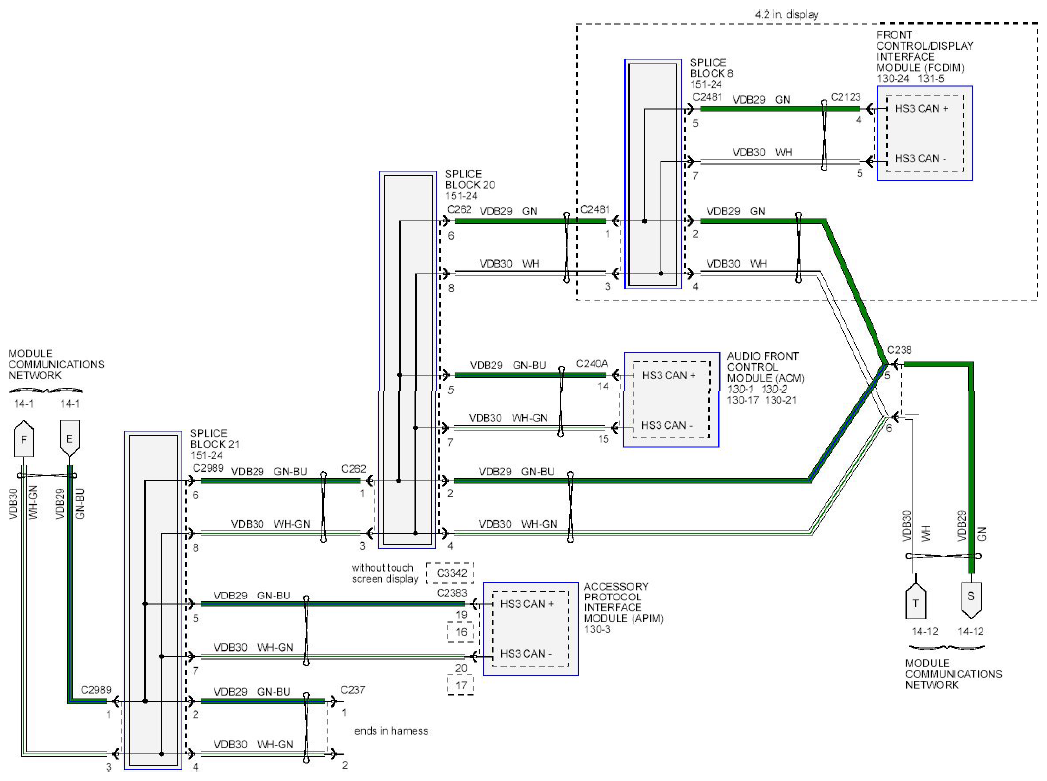

Fig 8: Module Communications Network Wiring Diagram - Fusion (8 Of 8)

Courtesy of FORD MOTOR CO.
